Rosemount 8732 - Fischer and Porter Sensor to Rosemount 8732 Transmitter; Fischer and Porter Sensors

Reference Manual
00809-0100-4663, Rev BA
January 2010
Rosemount 8732
E-14
Fischer and Porter
Sensor to
Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-11.

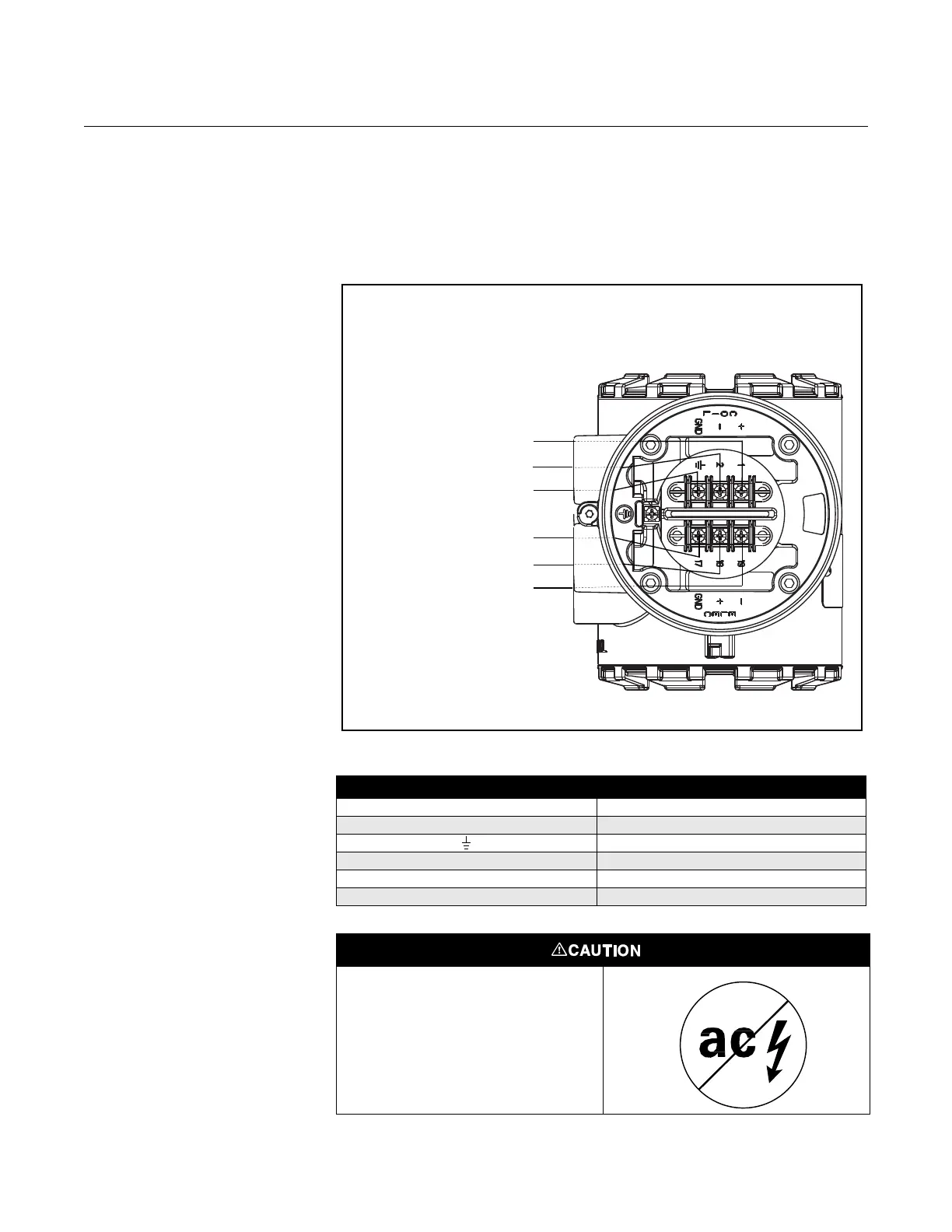

Figure E-11. Generic Wiring
Diagram for Fischer and Porter
Sensors and Rosemount 8732
Table E-12. Fischer and Porter
Generic Sensor
Wiring Connections
Electrodes
2
Coils
Chassis
ROSEMOUNT 8732
TRANSMITTER
FISCHER AND PORTER
SENSORS
Fuse
1
3
M2
M1
Rosemount 8732 Fischer and Porter Sensors
1M1
2 M2
Chassis Ground
17 3
18 1
19 2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
