Rosemount 8732 - Model 10 D1430 Sensor (Remote) to Rosemount 8732 Transmitter

Reference Manual
00809-0100-4663, Rev BA
January 2010
E-11
Rosemount 8732
Model 10D1430 Sensor
(Remote) to
Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-8.

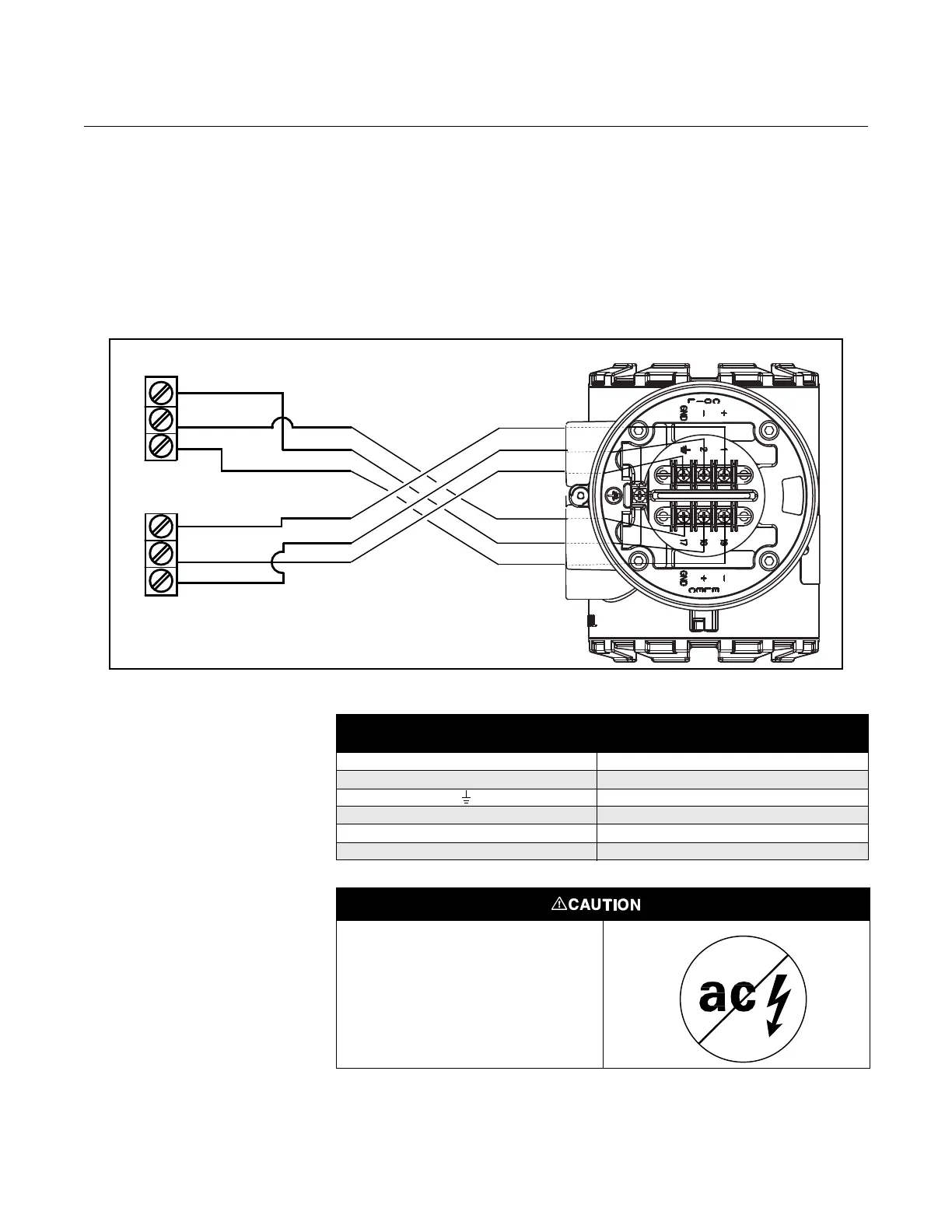

Figure E-8. Wiring Diagram for
Fischer and Porter Sensor
Model 10D1430 (Remote) and
Rosemount 8732
Table E-9. Fischer and Porter
Model 10D1430 (Remote)
Sensor Wiring Connections
ROSEMOUNT 8732 TRANSMITTER
1
2
3
G
L1
8
Coil Connections
Electrode Connections
Rosemount 8732
Fischer and Porter Model 10D1430 (Remote)
Sensors
1L1
2 8
G
17 3
18 1
19 2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
