Rosemount 8732 - TAYLOR SENSORS

Reference Manual
00809-0100-4663, Rev BA
January 2010
Rosemount 8732
E-22
TAYLOR SENSORS Connect coil drive and electrode cables as shown in Figure E-19.
Series 1100 Sensor to
Rosemount 8732
Transmitter

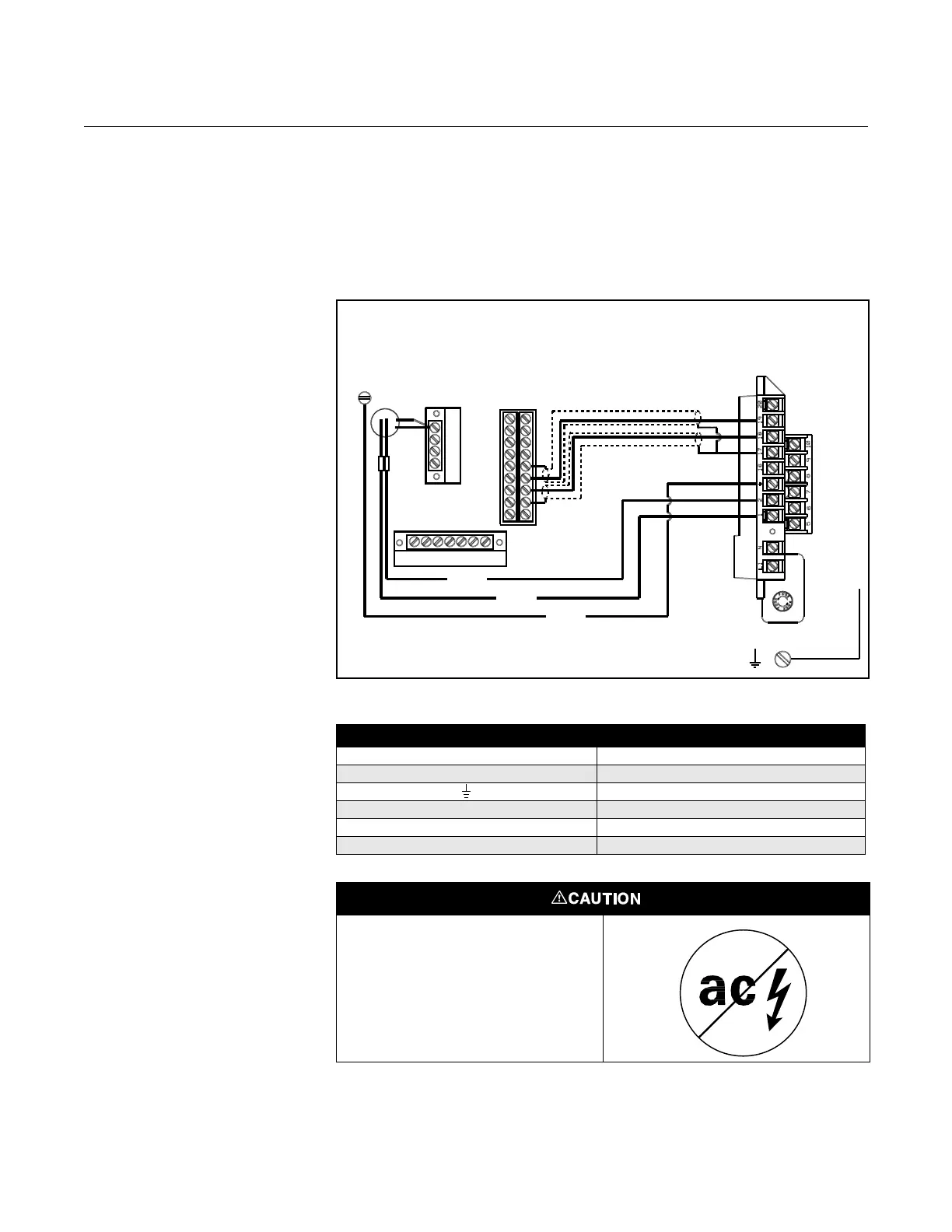

Figure E-19. Wiring Diagram for
Taylor Series 1100 Sensors and
Rosemount 8732
Table E-20. Taylor Series 1100
Sensor Wiring Connections
ROSEMOUNT 8732
TRANSMITTER
Electrode Connections
Coil Connections
TAYLOR SERIES 1100
SENSOR
C
L
A
R
White
Black
Green
L N G 1 2 3 4
Rosemount 8732 Taylor Series 1100 Sensors
1Black
2 White
Green
17 S1 and S2
18 E1
19 E2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
