Rosemount 8732 - BROOKS SENSORS

Reference Manual
00809-0100-4663, Rev BA
January 2010
Rosemount 8732
E-6

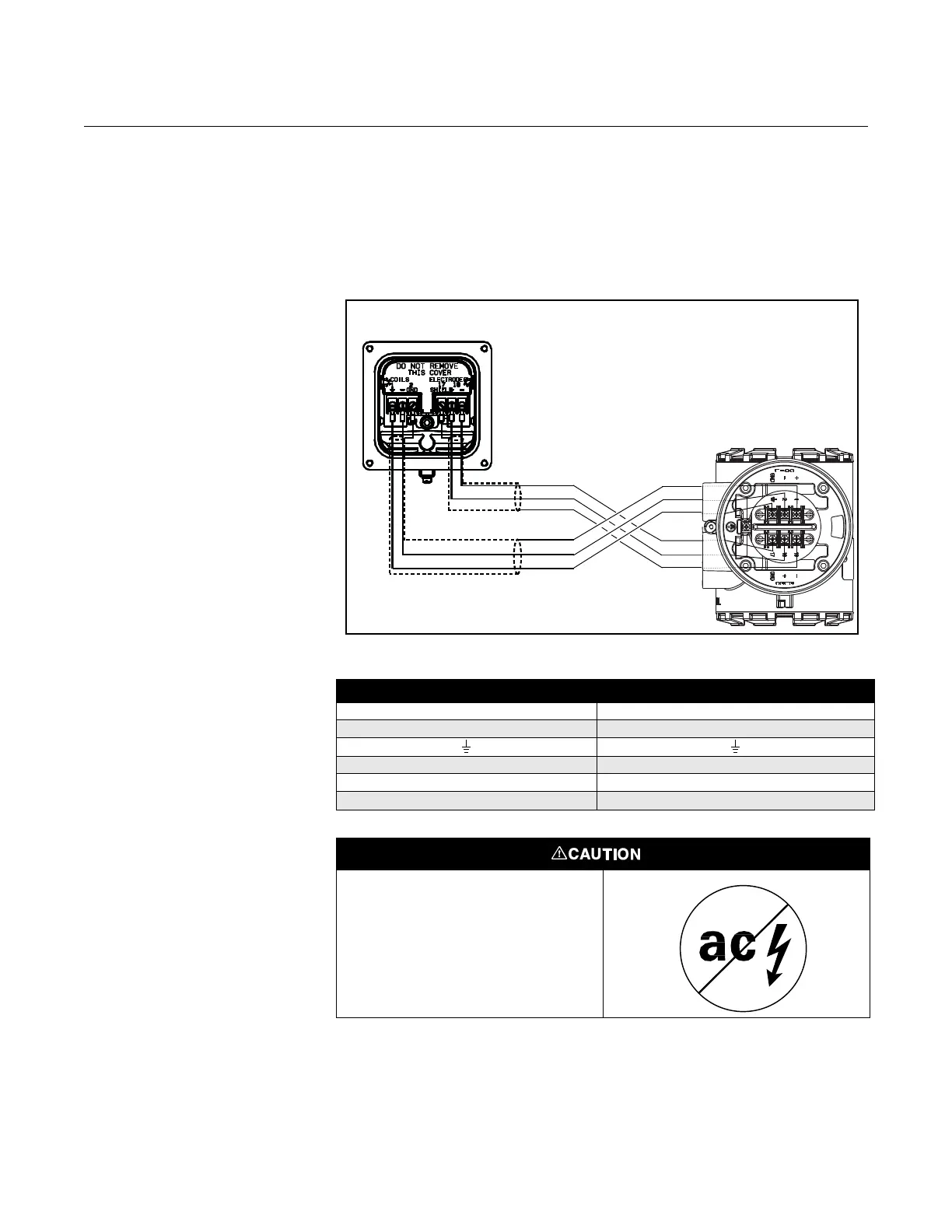

BROOKS SENSORS Connect coil drive and electrode cables as shown in Figure E-3.
Model 5000 Sensor to
Rosemount 8732
Transmitter
Figure E-3. Wiring Diagram for
Brooks Sensor Model 5000 and
Rosemount 8732
Table E-4. Brooks Model 5000
Sensor Wiring Connections
BROOKS MODEL
5000
ROSEMOUNT 8732
TRANSMITTER
Rosemount 8732 Brooks Sensors Model 5000
11
2 2
17 17
18 18
19 19
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
