Rosemount 8732 - Model 7400 Sensor to Rosemount 8732 Transmitter

Reference Manual
00809-0100-4663, Rev BA
January 2010
E-7
Rosemount 8732
Model 7400 Sensor to
Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-4.

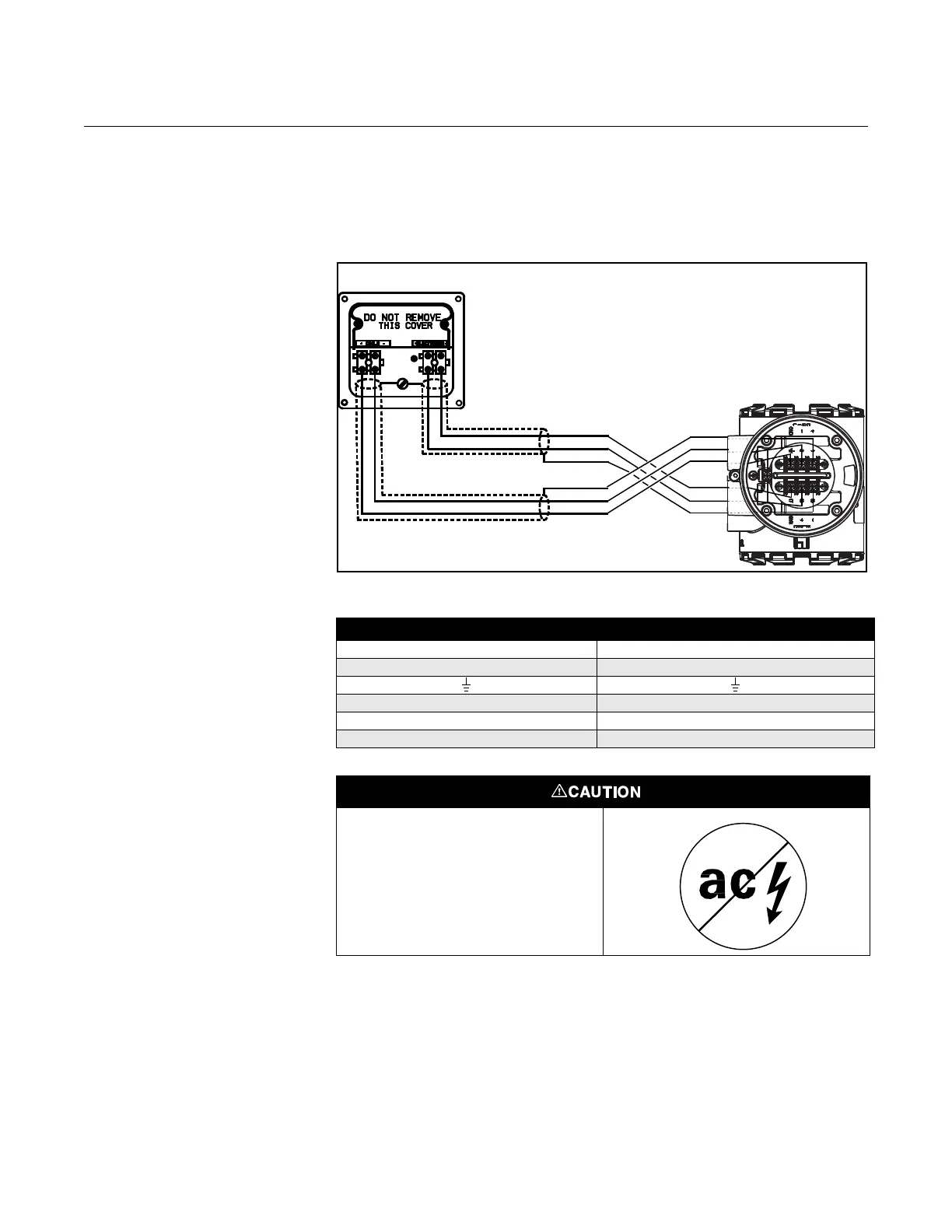

Figure E-4. Wiring Diagram for
Brooks Sensor Model 7400 and
Rosemount 8732
Table E-5. Brooks Model 7400
Sensor Wiring Connections
BROOKS MODEL 7400
ROSEMOUNT 8732
TRANSMITTER
Rosemount 8732 Brooks Sensors Model 7400
1 Coils +
2 Coils –
17 Shield
18 Electrode +
19 Electrode –
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
