Rosemount 8732 - Rosemount 8701 Sensor to Rosemount 8732 Transmitter

Reference Manual
00809-0100-4663, Rev BA
January 2010
Rosemount 8732
E-4
Rosemount 8701 Sensor
to Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-2 on page E-4.

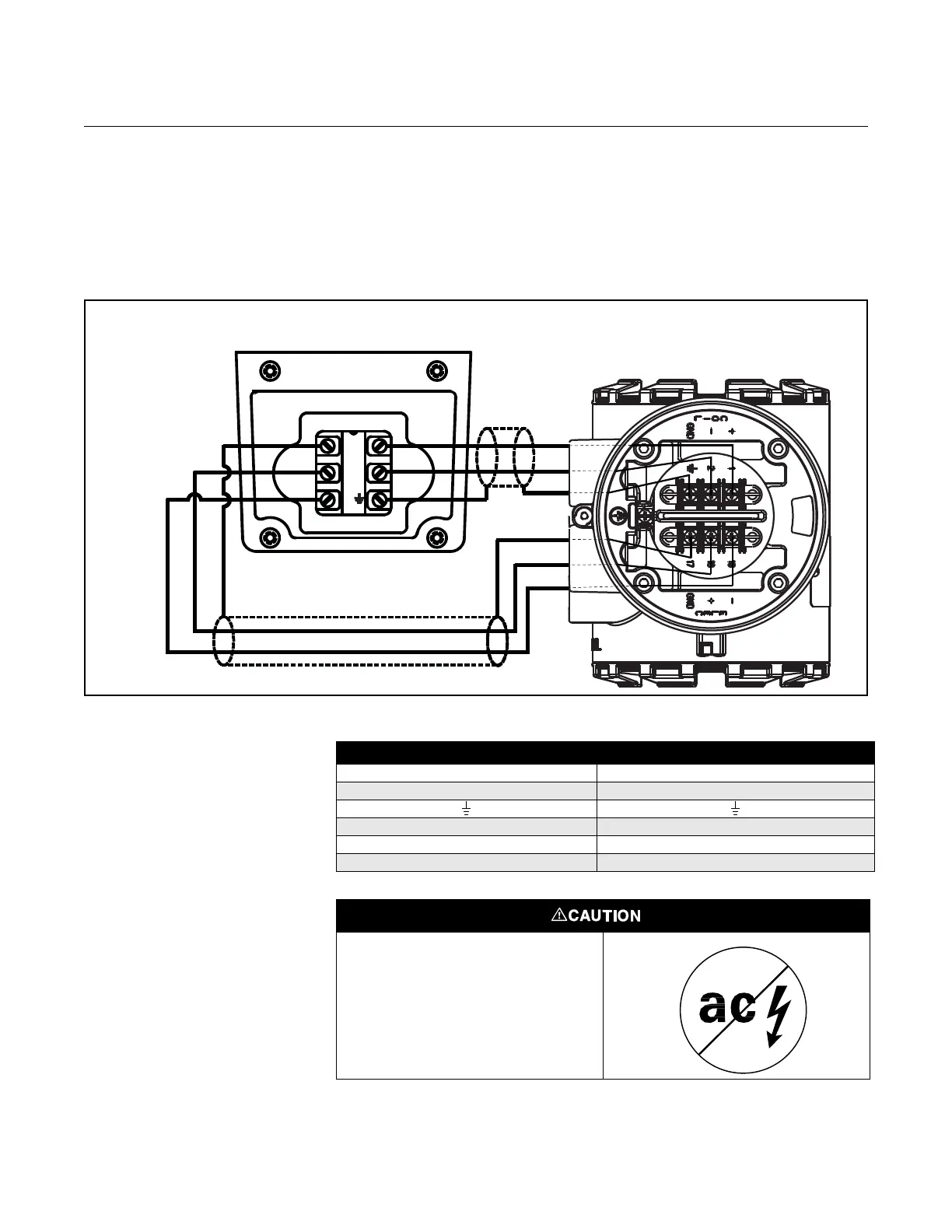

Figure E-2. Wiring Diagram for
Rosemount 8701 Sensor and
Rosemount 8732 Transmitter
Table E-3. Rosemount 8701
Sensor Wiring Connections
2
1
19
18
17
ROSEMOUNT 8701
SENSOR
ROSEMOUNT 8732
TRANSMITTER
Rosemount 8732 Rosemount 8701 Sensors
11
2 2
17 17
18 18
19 19
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
