Rosemount 8732 - Taylor Sensor to Rosemount 8732 Transmitter; Taylor Sensors

Reference Manual
00809-0100-4663, Rev BA
January 2010
E-23
Rosemount 8732
Taylor Sensor to
Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-20.

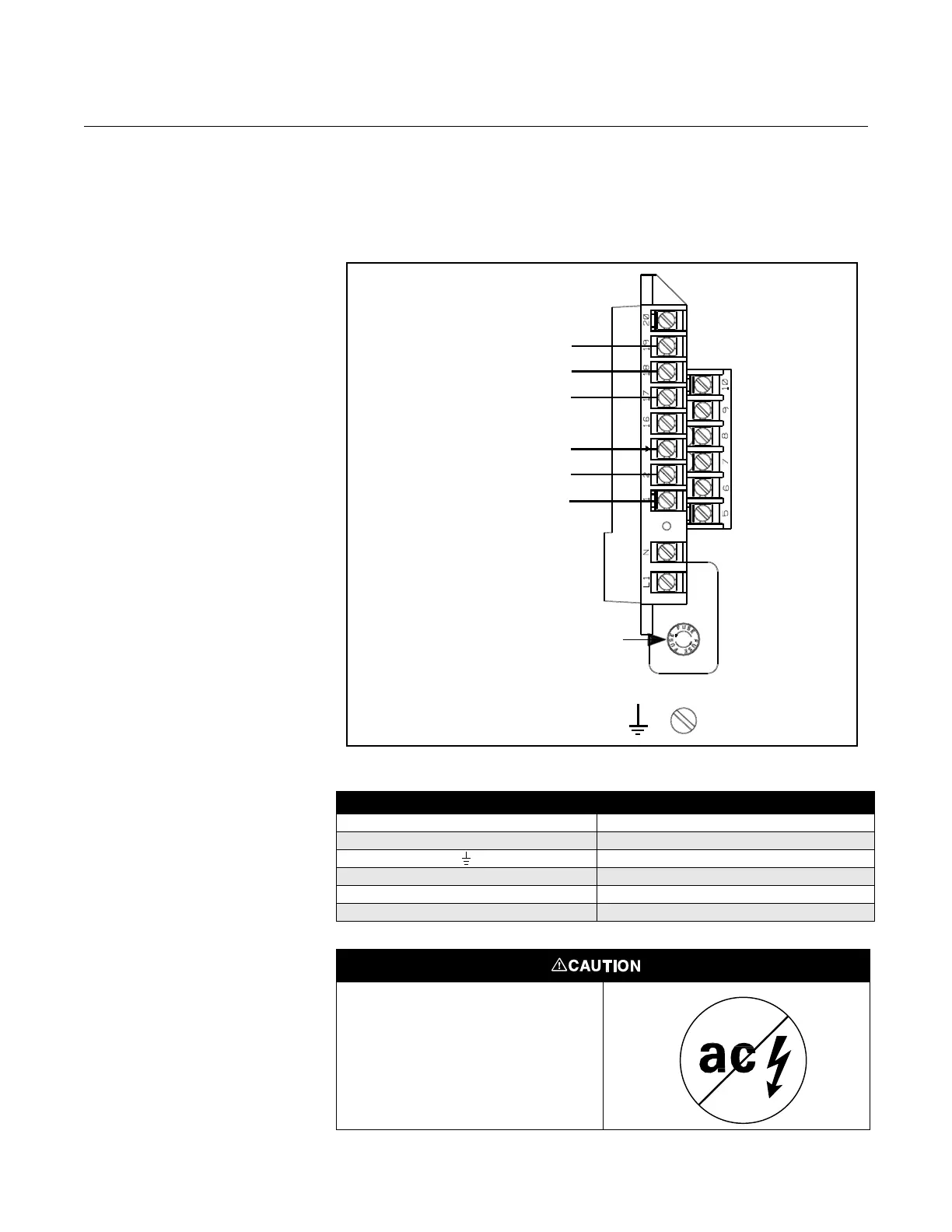

Figure E-20. Generic Wiring
Diagram for Taylor Sensors and
Rosemount 8732
Table E-21. Taylor Sensor
Wiring Connections
Electrodes
Coils
Green
ROSEMOUNT 8732
TRANSMITTER
TAYLOR
SENSORS
White
Black
E2
E1
S1 and S2
Fuse
Rosemount 8732 Taylor Sensors
1Black
2 White
Green
17 S1 and S2
18 E1
19 E2
This is a pulsed DCDC magnetic
flowmeter. Do not connect AC power to
the sensor or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
