Rosemount 8732 - KROHNE SENSORS

Reference Manual
00809-0100-4663, Rev BA
January 2010
E-21
Rosemount 8732
KROHNE SENSORS Connect coil drive and electrode cables as shown in Figure E-18.
Krohne Sensor to
Rosemount 8732
Transmitter

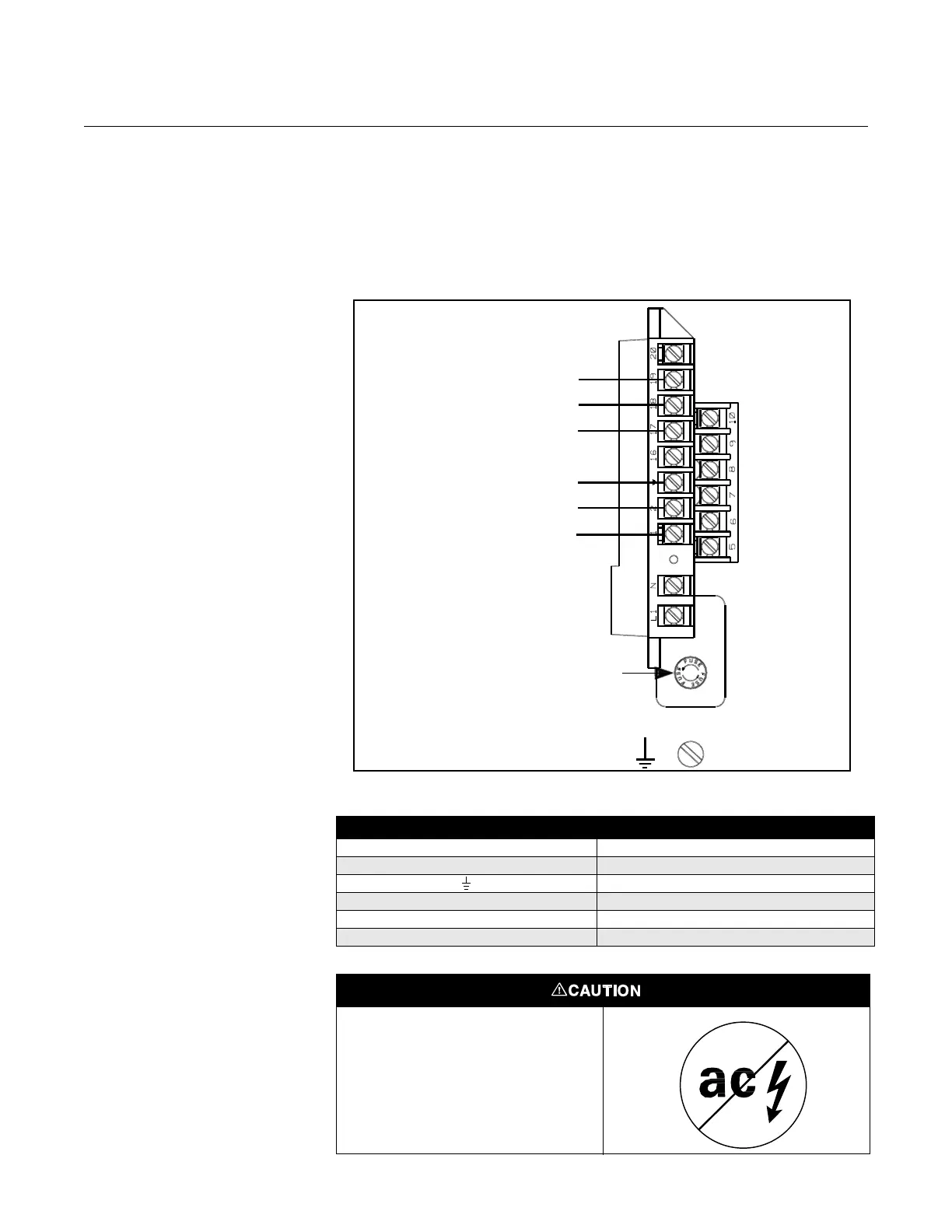

Figure E-18. Generic Wiring
Diagram for Krohne Sensors
and Rosemount 8732
Table E-19. Krohne Sensor
Wiring Connections
Electrodes
Coils
Coil Shield
ROSEMOUNT 8732
TRANSMITTER
KROHNE
SENSORS
7
8
3
2
Electrode Shield
Fuse
Rosemount 8732 Krohne Sensors
18
2 7
Coil Shield
17 Electrode Shield
18 2
19 3
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
