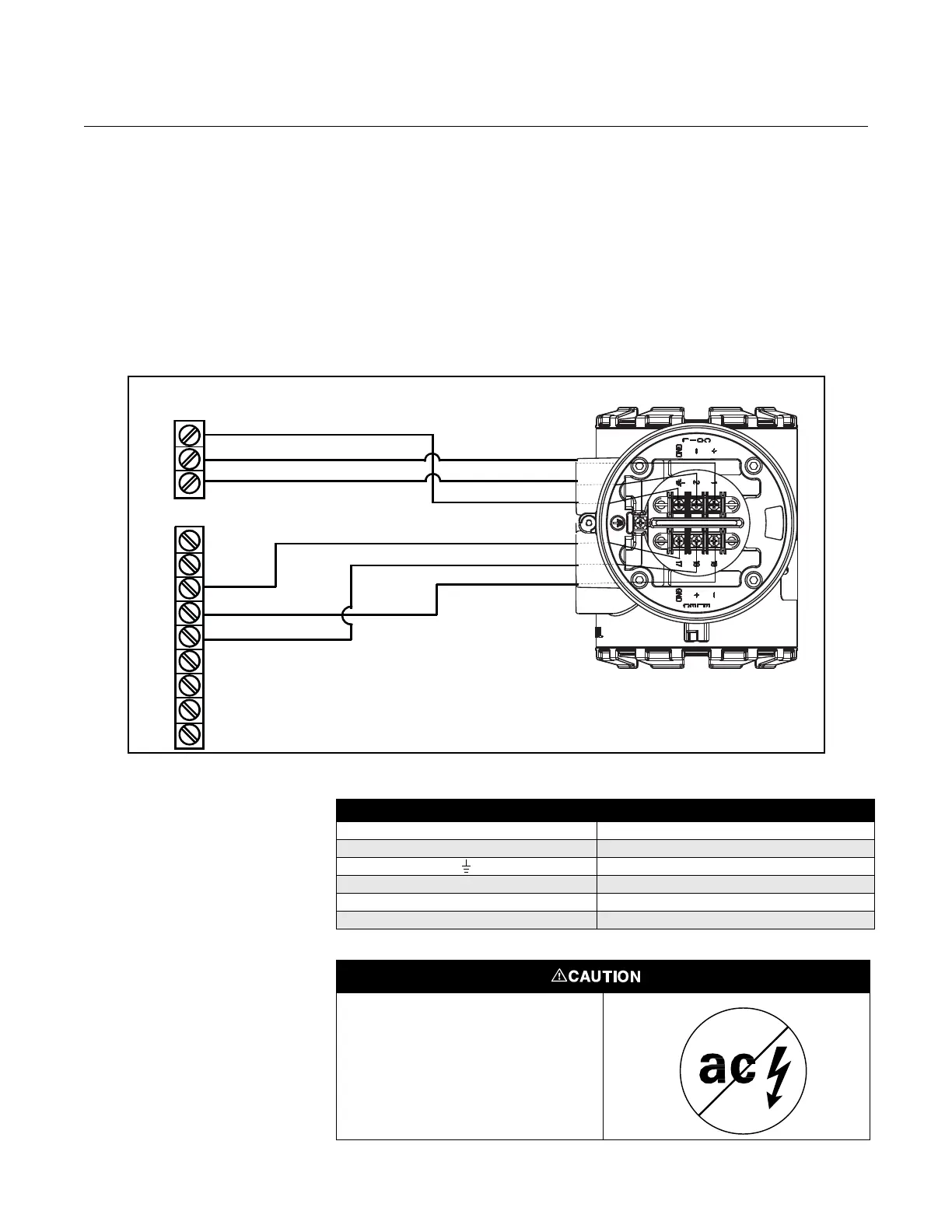

Connect coil drive and electrode cables as shown in Figure E-6.
Model 10D1418 Sensor
to Rosemount 8732
Transmitter
Figure E-6. Wiring Diagram for
Fischer and Porter Sensor
Model 10D1418 and
Rosemount 8732
Table E-7. Fischer and Porter
Model 10D1418 Sensor Wiring
Connections
ROSEMOUNT 8732 TRANSMITTER
Electrode Connections
U1
U2
G
8
6
7
L1
L2
5
3
2
1
Coil Connections
Rosemount 8732 Fischer and Porter Model 10D1418 Sensors
1L1
2 L2
Chassis Ground
17 3
18 1
19 2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
