7.2 The Setting Tool Pro (new version)
Specification
Enclosure IP54
This Setting Tool Pro has been built in accordance with the following standards:
USA - Hazardous Area.
Factory Mutual - Explosion Proof to NEC Article 500.
Intrinsically Safe, Class 1, Div 1, Groups A, B, C & D, T4.
Canada - Hazardous Area.
CSA - Exia Intrinsically Safe, Class 1, Div 1, Groups A, B, C & D, T4.
Temperature Tamb = -30ºC to 50ºC
Power supply 2x 1.5V Batteries (supplied and fitted)
Operating range 0.75m (from actuator display window)
Name Instruction
1. m Key* Display next function down
2.
i Key Display previous function up
3.
k
Key* Display next function across
4.
o Key Display previous function across
5.
-
Key Decrease/change displayed function’s value or option setting
6.
+
Key Increase/change displayed function’s value or option setting
7.
m
Key Initiate download/upload mode
8.
Key Enter displayed value or option setting
* Pressing these two arrow keys together returns the actuator display to the
position indication mode

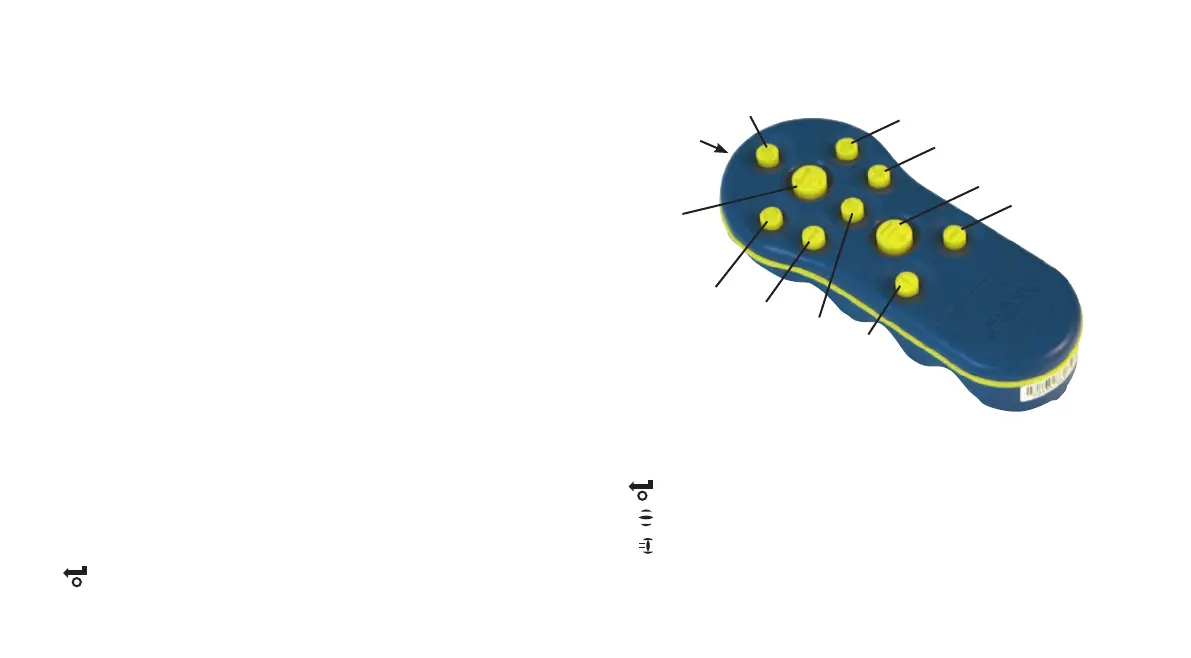

Fig. 7.2 The Setting Tool Pro
Infra-red local operation (when enabled)
9.
Key Stop actuator
10.
Key Open actuator
11.
Key Close actuator
12. Infra-red Transmitter Window
13
8
2
7
6
11
5
3
1
4
10
12
