Download / Upload Function
This new feature has been introduced
with the new Rotork Setting Tool
Pro. It allows the user to download
datalogger files and download/upload
configuration files. The new tool is
weatherproof and intrinsically safe
and so it can be used safely in all
environments. For more information
refer to Section 11.1, page 70.
Setting Tool Pro Battery
Replacement
Battery status can be checked by looking
at the Infra-red transmitter window
while depressing any Setting Tool Pro
button except the download button. A
flashing red indicator should be seen.
Battery replacement must be
carried out in a safe area. To replace
the battery remove the six cap head
screws in the back of the Setting
Tool Pro. Remove the back cover to
expose the battery.
In order to maintain hazardous
area certification the actuator
Setting Tool Pro shall only be
fitted with the following AA size,
alkaline-manganese, approved
battery types:
Duracell, Coppertop, type MN1500
Duracell, Procell, type MN1500
GP, Super Alkaline, type GP15A
Other types of AA size batteries,
including Duracell, Ultra, type
MN1500, must not be fitted. For
battery replacement see Section 7.
Refit cover ensuring red indicator LED
faces the transmitter window in the
back cover.
The enclosure of the actuator Setting
Tool Pro is manufactured from the
materials:
Polycarbonate, ABS blend
Polycarbonate
Silicon Rubber
If the actuator Setting Tool Pro is likely
to come into contact with aggressive
substances (e.g. solvents that may
affect polymetric materials), then it is
the responsibility of the user to take
suitable precautions (e.g. regular checks
as part of the routine inspections or
establishing that the materials are
resistant to the specific chemical)
that prevent it from being adversely
affected, thus ensuring that the type of
protection is not too compromised.
No form of repair must be attempted
on the actuator Setting Tool Pro.
When a button is depressed the
Setting Tool Pro transmits the relevant
instruction to the actuator by infra-red
pulses and must therefore be directly in
front of the actuator indicator window
and at a distance no greater than
0.75m.
Display Set-Up Mode
The Setting Tool and Setting Tool Pro
arrow keys are used to access and
navigate through the actuator set-up
procedure using the actuator display.
Each actuator function with it's current
setting is represented on screen by
a combination of code and text. The
Setting Tool change keys (+ and –)
allow the user to view the available
setting options.

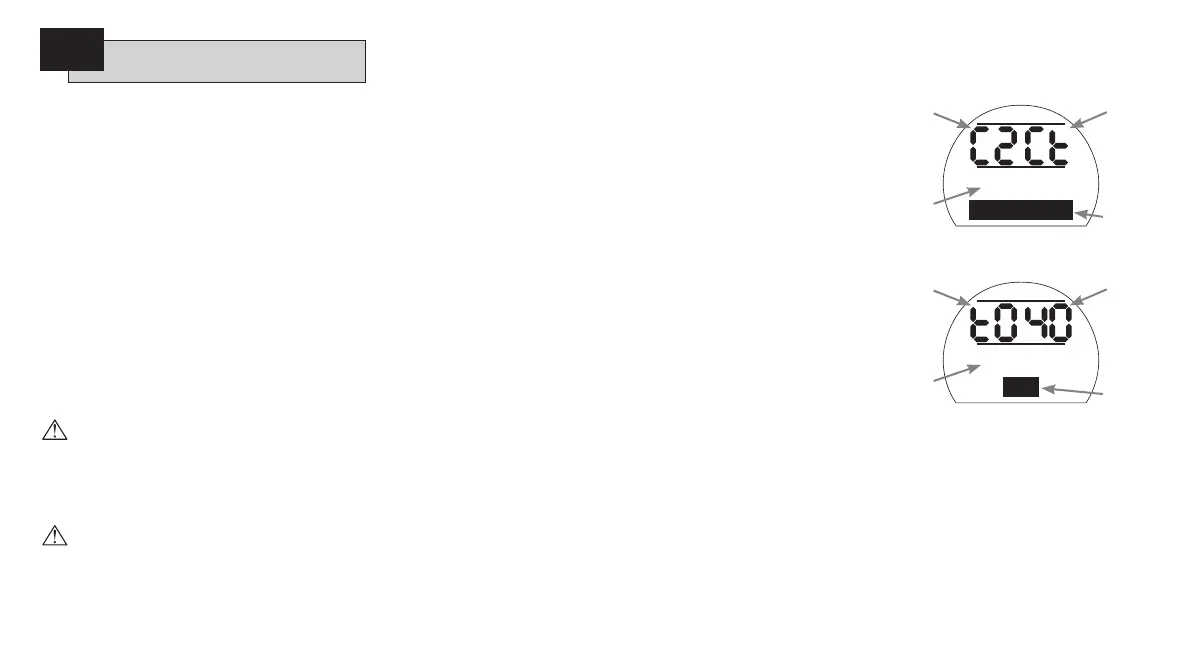

The examples of displayed functions
Close Action
, [C2] and
Open Torque
, [tO]
are shown to the right. Note that a
setting option or value is highlighted.
This instruction manual uses both code
and text for description.
14
Close Action
Close on Torque
Open Torque
40%
Function
Code
Function
Setting
Code
Setting
Option
Function
Code
Function
Setting
Value
Setting
Value
Commissioning continued
