The available forms of remote control
are listed below:
1 - Standard hardwired control
2 - Analogue control-Option Folomatic
3 - Network control including:
Option Pakscan
Option Modbus
Option Profibus
Option Foundation Fieldbus
Option DeviceNet
The setting for Remote Control Source
will depend on the type of remote
control required and the option
specified and fitted. Check actuator
circuit diagram for remote control form.
The setting of Remote Control Source
will be determined by the option that
has been fitted, if any.
[
rE] Hard-Wired Only : Pushbutton/relay
contact control.
[oP]
Network : Pakscan, Profibus,
Modbus, Foundation Fieldbus or
DeviceNet control.
[bo]
Folomatic : Analogue Proportional
control.
[OF]
Remote Disabled : Remote control
disabled.
To change the remote source press the
+
or
-
key until the required setting is
displayed.
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.
Standard Hardwired
Remote Control

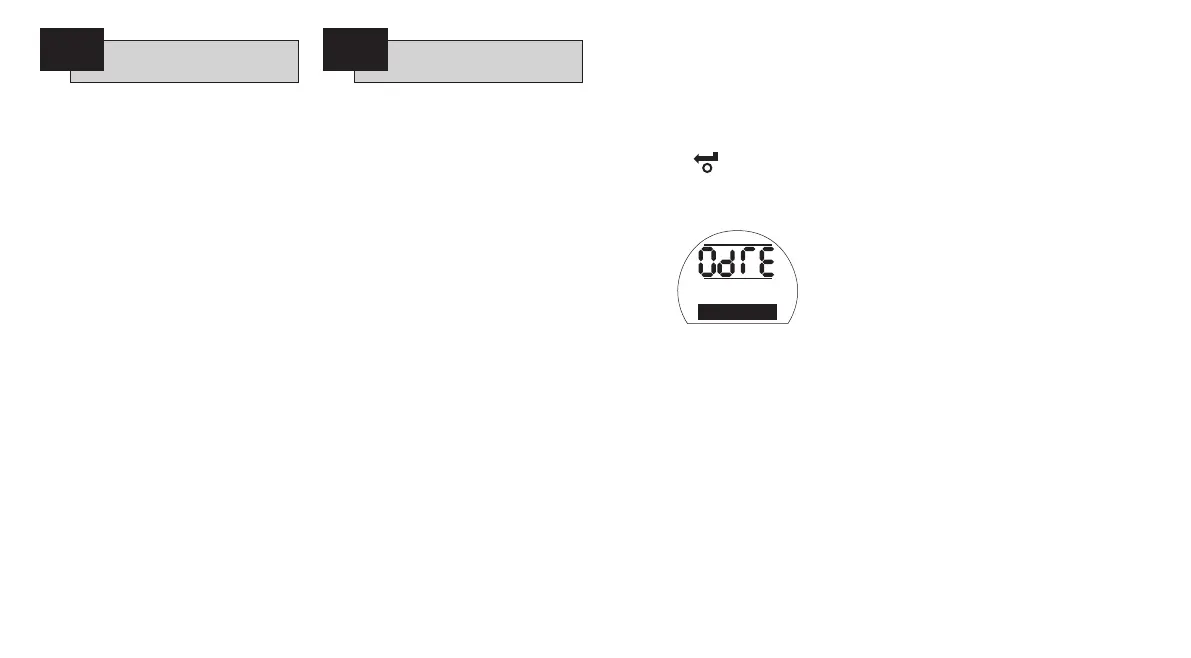

Remote Control Source
9.7
Remote Control Source
Od
Control Type
Hard-wired Only

rotork IQT Specifications

General

Quarter-turn	Yes
Housing Material	Aluminum alloy
Torque Range	10 Nm to 3000 Nm
Multi-turn	Yes
Linear	Yes
Ingress Protection	IP68
Communication Protocols	Modbus, Profibus, Foundation Fieldbus
Operating Temperature	+70°C
Local Controls	local pushbuttons
Control Modes	Modulating
Display	LCD
Type	Intelligent Electric Actuator
