The motion inhibit timer introduces
a delay in the actuator response to
a rapidly fluctuating input signal,
preventing unnecessary movement.
Once the system stabilises the actuator
will respond to steady changes in the
input signal as necessary.
Use
+
or
-
key to adjust motion inhibit
time in seconds: range 0–99. Normally
it is recommended that motion inhibit
time should not be set to less than 5
seconds (refer to note on page 57).
PRESS THE KEY.
The displayed value will flash (stored)
indicating that it has been set.
Press the
k key to display:
[FA]
Loss of Signal
.
Use
+
or
-
key to enable [On] or
disable [OF] action on loss of set point
signal.
[O
n] –
Failsafe
as determined by [FF].
[OF] –
Go to Low SP
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.
NOTE: Failsafe action “ON” will be
effective only for systems using an
offset or live zero signal range, for
example 4–20mA.
[FF] will only be displayed if [FA] has
been set to [O
n].
Press the
k key to display:
[FF]
Failsafe Action
.
Failsafe action when [FA]
Loss of Signal
set to [O
n]
Failsafe
only.
Use
+
or
-
key to select, on loss of
input signal:
[Lo] –
Go to Low SP
position.
[SP] –
Stay Put
[Hl] –
Go to High SP
position.
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.
Commissioning of the Folomatic is
now complete. Remote control may be
selected.
Using a switched input you can select
between Folomatic (Auto) operation and
Manual (hardwired remote) operation.
This can be used in applications where
you want the option to override the
Folomatic to allow full manual control of
the actuator from the control room.
Actuators dispatched will have this
feature disabled as the default in order
to minimise commissioning time. If you
would like this feature enabled, use the
+
or
-
key to select [On] Enabled.
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.
Using the wiring diagram supplied with
the actuator, follow the instructions
on how to connect the Manual / Auto
selection switch.
Commissioning of the Folomatic is
now complete. Remote control may be
selected.

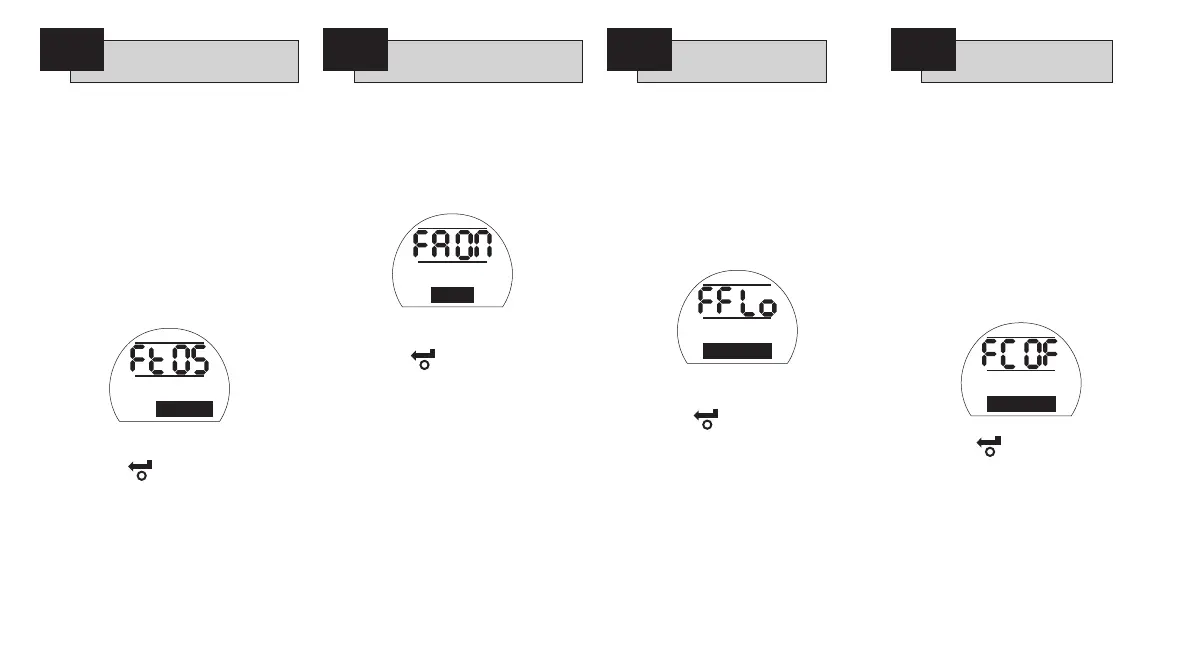

Motion Inhibit
Time: 05 seconds
Loss of Signal
Failsafe
Failsafe Action
Go to Low SP
Ft
Motion Inhibit
Timer Adjustment
FA
Action On Loss of
Set Point Signal
Failsafe Action
FF
Manual / Auto
Disabled
FC
Manual/Auto
Selection
