58
AA
Close LED Colour
OH
The colour of the LEDs on the IQT
display are user configurable. These
menu sceens allow you to set the Close
LED colour and the Mid-Travel LED
being on or off.
The default close limit position indicator
colour is [
g
r]
Green
.
If red indication is required at the close
limit position, press the
+
or
-
key.
The display will change to [rE]
Red
.
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set
Press the
k key to display:
[OU]
Mid-Travel LED
.
The default for mid travel position
indicator colour is [OF]
Off
.
If mid-travel LED indication is required,
press the
+
or
-
key.
The display will change to [On]
On
.
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.
Press the
k key to display:
[UL]
Language
.
The default display text language is
English. If the language was specified
at time of order the actuator will be
despatched with the specified language
set.
Press the
+
or
-
keys to view alternative
languages.
Available standard languages:
German
Deutsch
French
Français
Spanish
Español
Depending on the specified language,
only English and one other may be
supplied with the actuator.

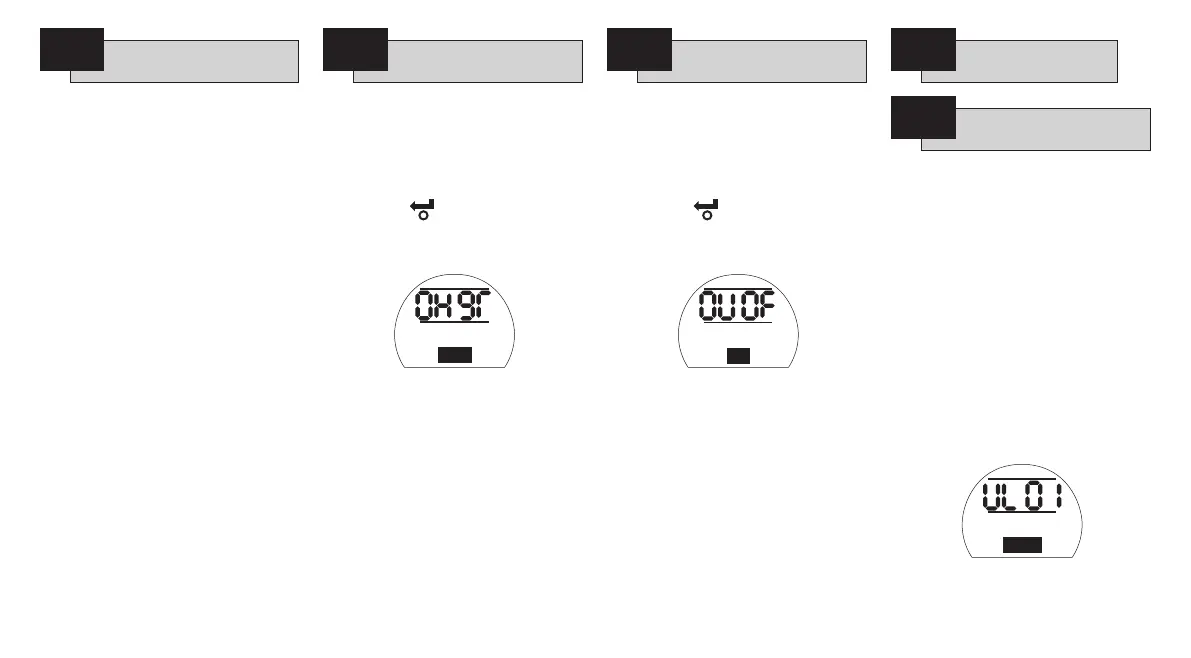

Close Colour
Green
Mid-Travel LED
OU
Mid-Travel LED
Off
Display Language
9.17
Language
English
Indicator LEDs
9.16
Language
UL
