Section 5 Operating Instructions HP7A Manual
www.rottlermfg.com
5-22

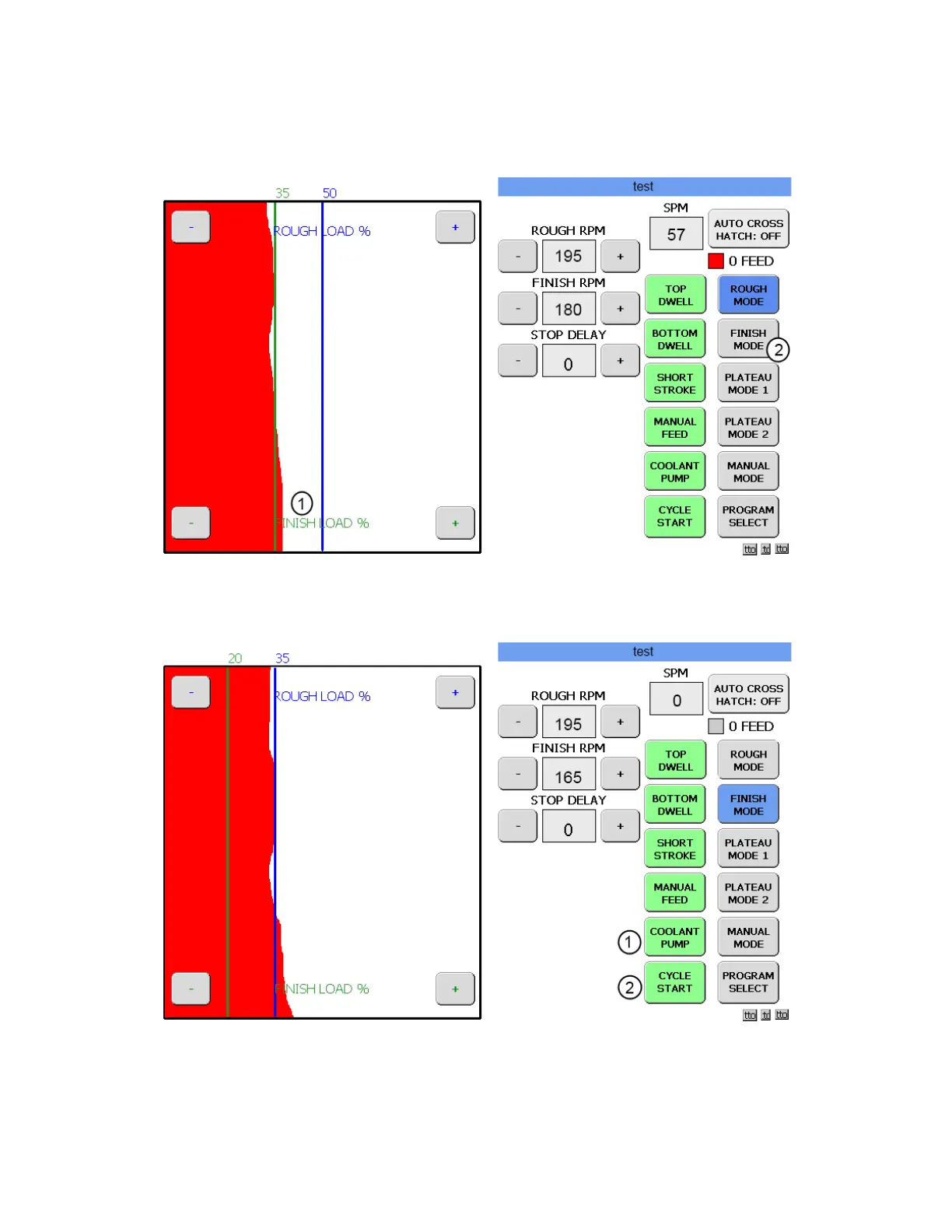

The FINISH LOAD process will continue until the preset FINISH LOAD (1) is achieved at which time the
hone will automatically shut off.
Touch the FINISH MODE button (2) and the following screen will appear.
Reset the feed ring so that there will be at least 3 feed outs when the FINISH Operation is run. Touch the
COOLANT PUMP button (1) to turn on the pump, then press the CYCLE START button (2) to start the
honing process.
