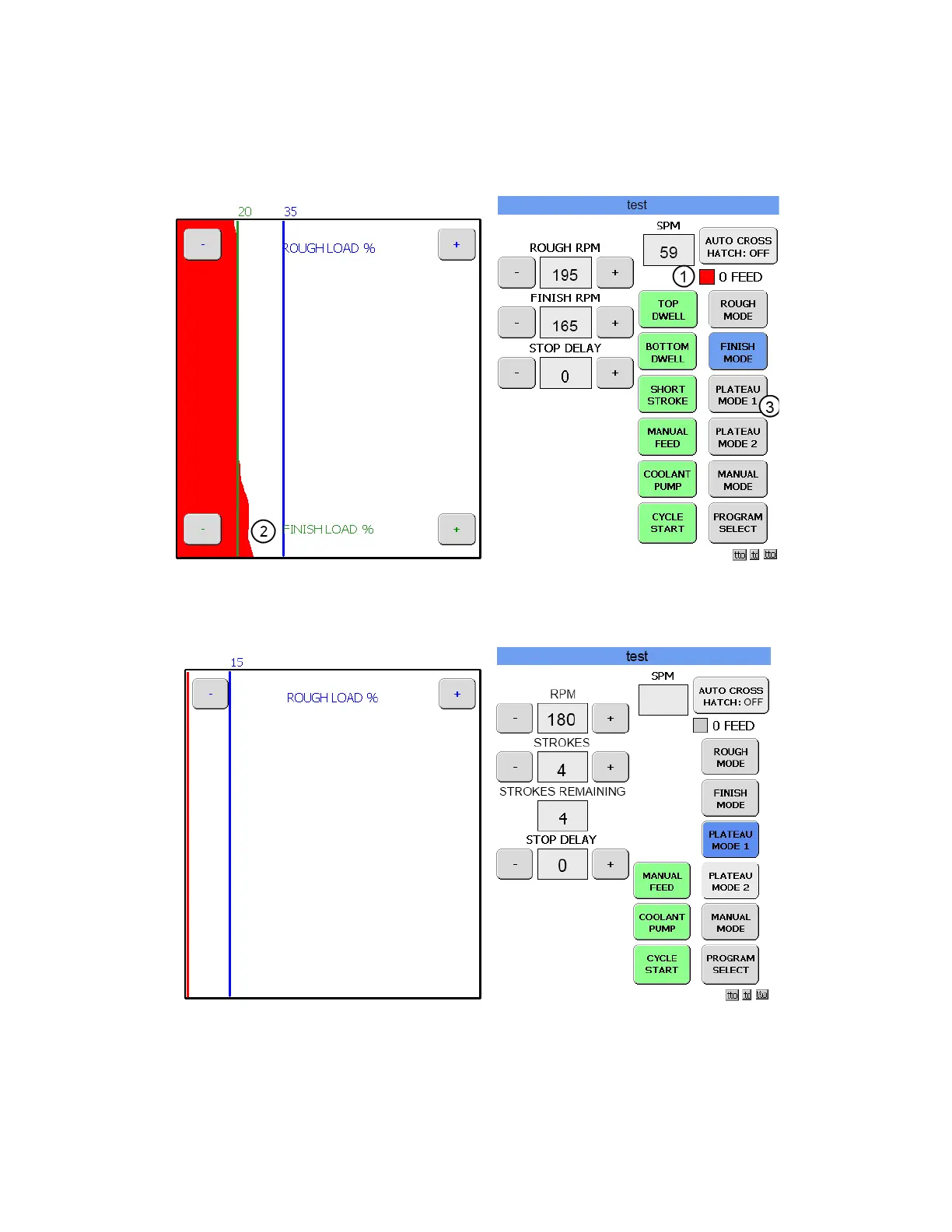

The hone will feed out to the preset ROUGH LOAD setting and continue to hone and feed out until the
zero sensor is activated.(1) The hone will continue to remove material until the stone load reaches the
preset FINISH LOAD setting.(2) The hone will then automatically shut off.
Touch the PLATEAU MODE 1 button (3) and the following screen will appear.
Remove the stones and holders from the hone head. Insert the brushes and holders into the hone head.
Place the hone head back in the bore that has been honed and set the upper limit. Hand feed the brushes
out until they make contact with the cylinder wall.
