Introducing the ZoneFlex Access Point
If Your AP is Part of a Wireless Mesh Network

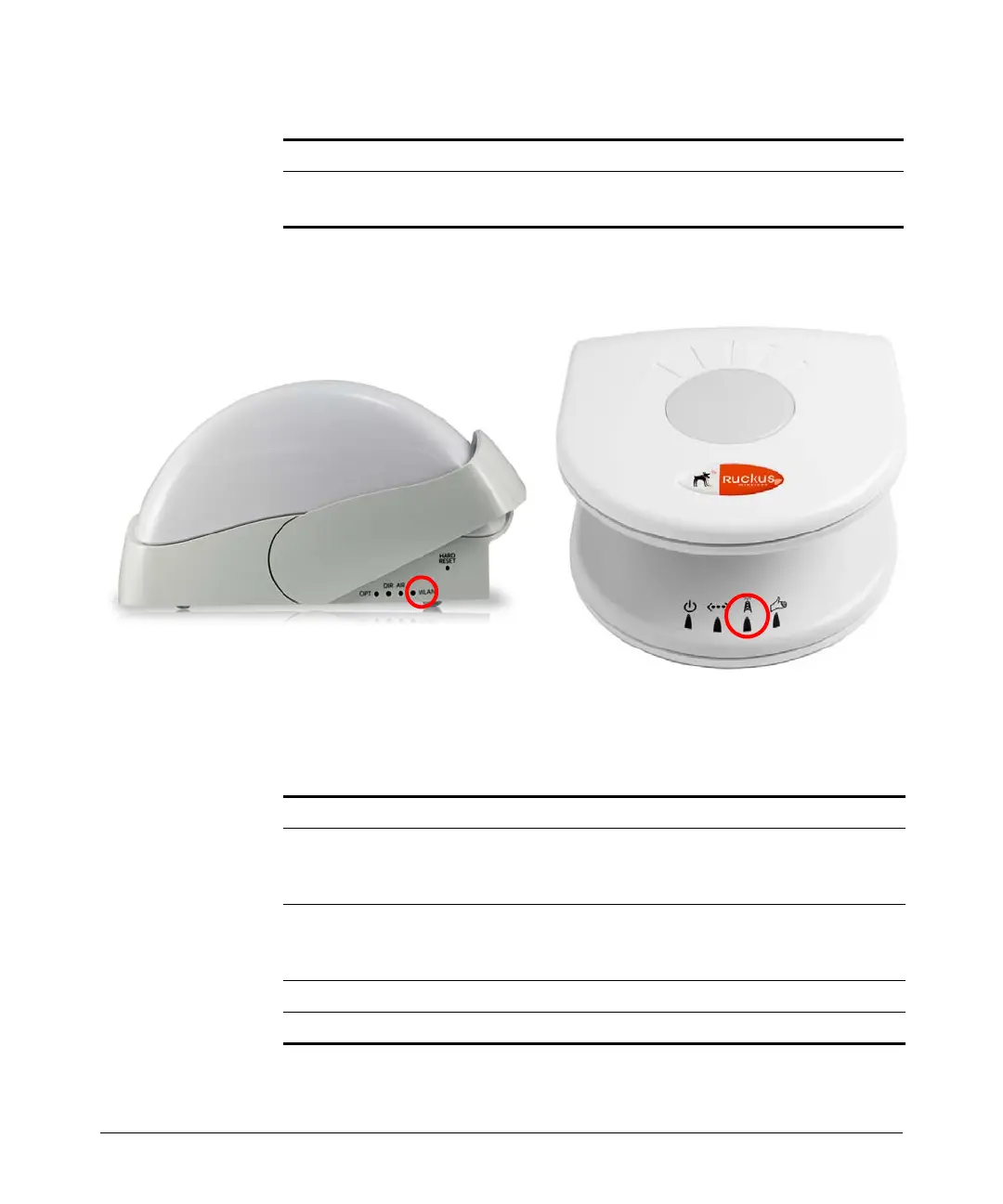

Figure 7. WLAN/Wireless Device Association LED on ZoneFlex 2942/7942 (left)
and ZoneFlex 2925 (right)
Air/Signal Quality LED
Slow blinking green • At least one mesh downlink exists, and;
• No client is associated with the AP
Table 9. WLAN/Wireless Device Association LED behavior
LED Color/Behavior Root AP / Mesh AP
Table 10. Air/Signal Quality LED behavior
LED Color/Behavior Root AP Mesh AP
Green N/A • Connected to a Root AP or another
Mesh AP, and;
• Signal quality is good
Fast blinking green N/A • Connected to a Root AP or another
Mesh AP, and;
• Signal quality is fair
Slow blinking green N/A AP is searching for an uplink
Off This AP is a Root AP N/A
