Figure 4: Attach 7055 AP cables before mounting to the bracket
4. Mount the AP to the bracket.
• Snap the AP onto the mounting bracket by hooking the two locking tabs on the
bottom of the bracket into the slots on the bottom of the AP. Then push the top
of the AP in toward the wall until it snaps in place.
• Use the two Torx bracket screws provided to secure the AP to the mounting
bracket using a T10 Torx screwdriver.

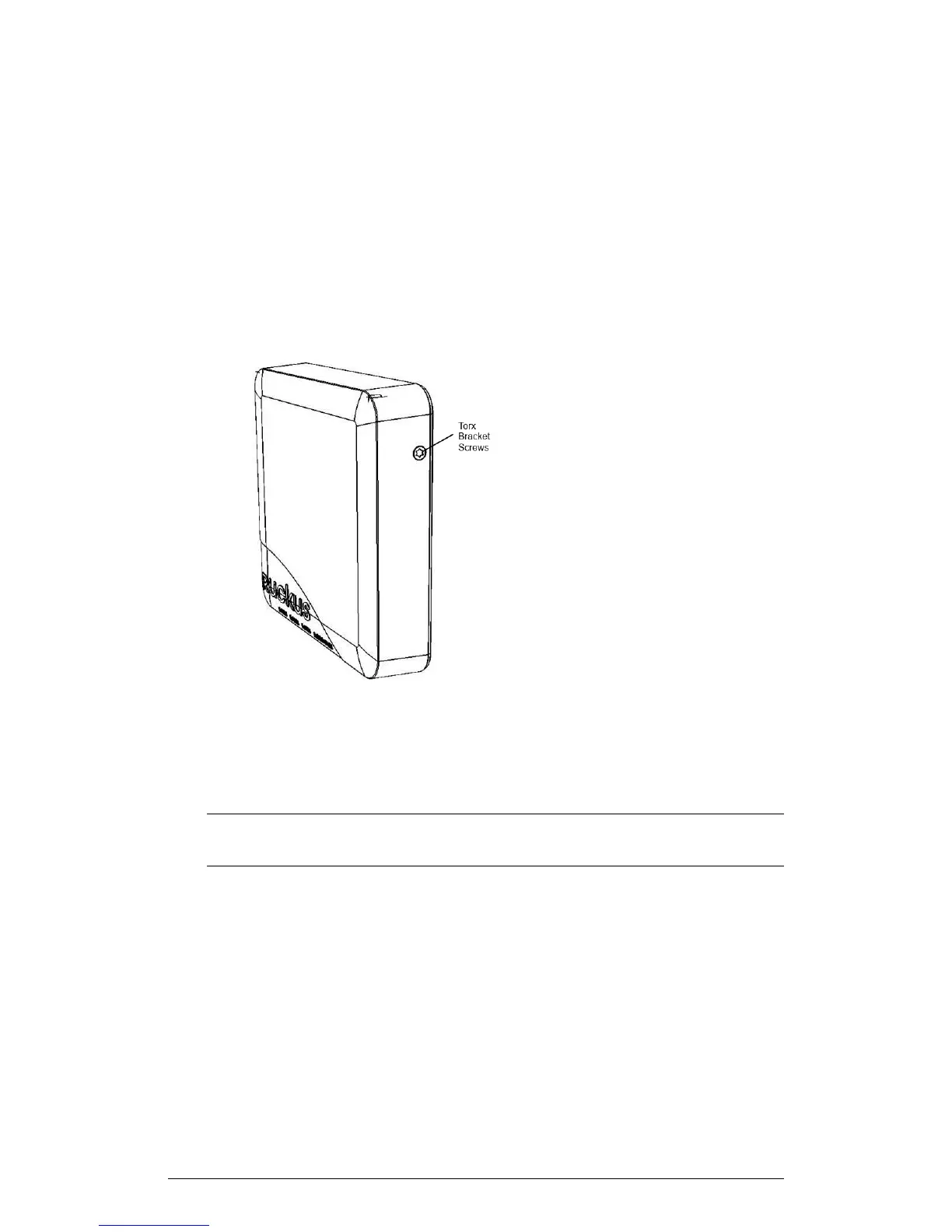

Figure 5: Secure the 7055 AP to the bracket using Torx screws
Using the 110 Punch Down Block
The ZF 7055 provides a 110 punch down block in addition to the RJ-45 port on the rear
of the AP for power and network connectivity.
CAUTION! Do not connect both the Punch-down block and the Uplink port to a
network. Only one connection can be used at a time.
If you prefer to use the 110 Punch-down block connector rather than the RJ-45 connector
for power and network connectivity, refer to the following diagram for wiring details.
