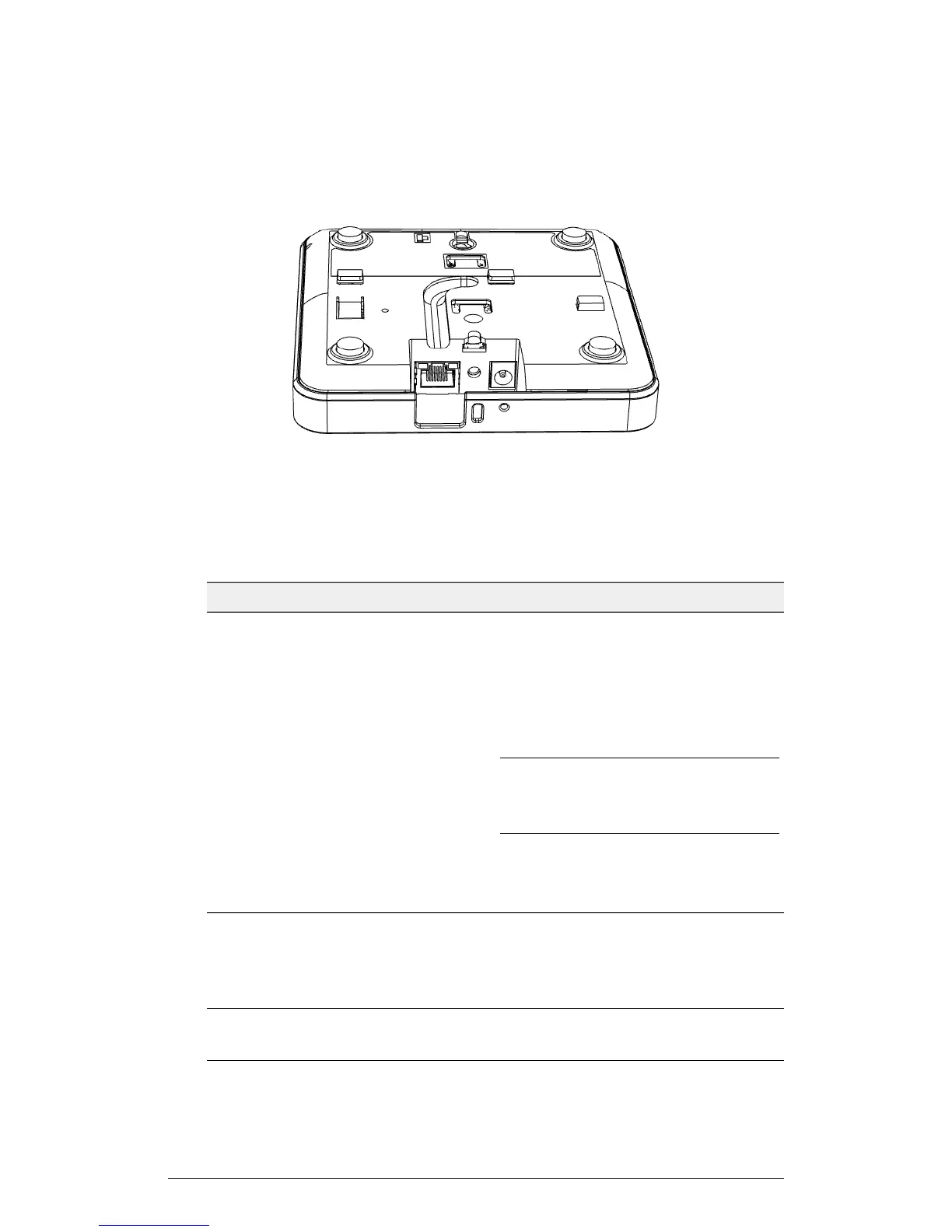

Figure 24: R300 rear panel
Table 20: R300 rear panel elements
DescriptionItem Name
One RJ-45 port for a 10/100/1000 PoE
(Power over Ethernet, 802.3af) connection.
10/100/1000+PoE Port
Pressing, and then quickly releasing this
internal button reboots the AP. Pressing
and holding it for six seconds resets the
AP to factory default settings.
NOTE Resetting the AP to factory default
settings erases all previously configured
settings.
RST Button
Connect the power adapter (12
VDC/1.25A) to this socket. Power can also
be supplied via the 10/100/1000 PoE port.
Power
ZoneFlex R310
The R310 is an entry level two-stream, dual-band, 802.11ac Access Point with adaptive
antenna technology for carriers and enterprises.
NOTE The minimum software revision for the R310 is standalone AP base image 102.0
or later, SmartZone 3.2 or later, or ZoneFlex 9.12.2 or later.
