DescriptionItem Name
10/100 RJ-45 Ethernet Port.LAN2 port
10/100 RJ-45 LAN port with PoE out. Supports 802.3af PSE Class 2
or 3 (depending on power input; refer to About Peripheral Devices).
LAN1+PoE
port
Optional 48VDC power input connector.48VDC port
Reset Buttons
Two reset buttons on the left side of the AP are used to reboot or factory reset the AP.

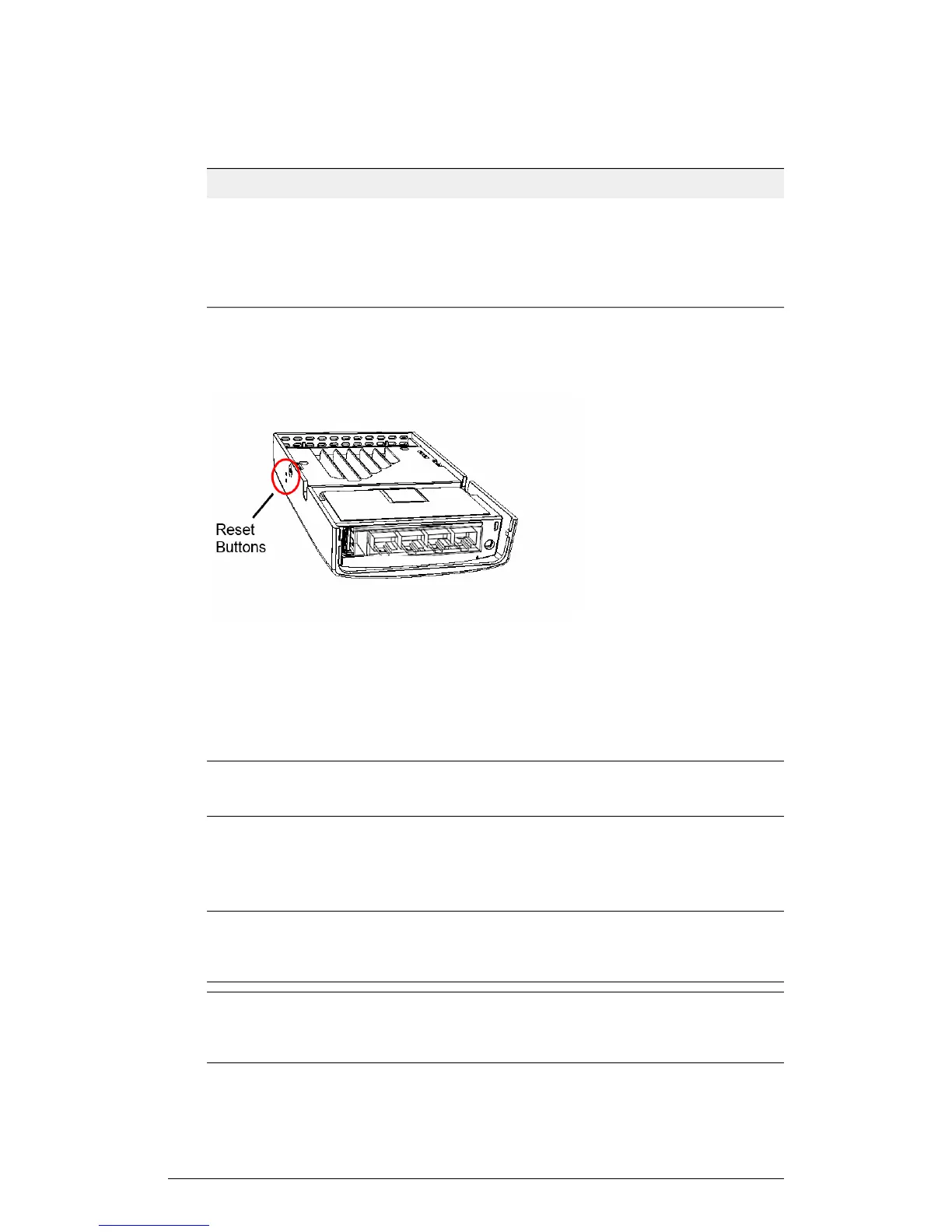

Figure 22: Reset buttons
Use a straightened paper clip to press and release the Hard Reset button for eight
seconds or more to reset the AP to factory defaults. Use a straightened paper clip to
press and hold the Soft Reset button to reboot the AP. This is the same as removing
power and then and restoring power to the H510.
NOTE Resetting the AP to factory default settings erases all previously configured
settings.
ZoneFlex R300
The R300 is a high-capacity, high-performing, two-stream, dual-band, 802.11n AP with
adaptive antenna technology for carriers and enterprises.
NOTE The 100.x AP base images support standalone mode and FlexMaster (FM)
WLAN manager operation. The SmartZone software-compatible images only support
SCG, SZ and vSZ controllers. The ZD-compatible images only support ZD controllers.
NOTE The R300 AP requires a minimum of AP base image 100.0.0 and later to operate,
or SCG 2.5 and later, vSZ 2.5 and later, SmartZone software 3.2 and later, or ZD 9.6.1
and later to operate.
42
ZoneFlex Indoor Access Point Release 104.0 User Guide
Introduction
Getting to Know the AP Features
