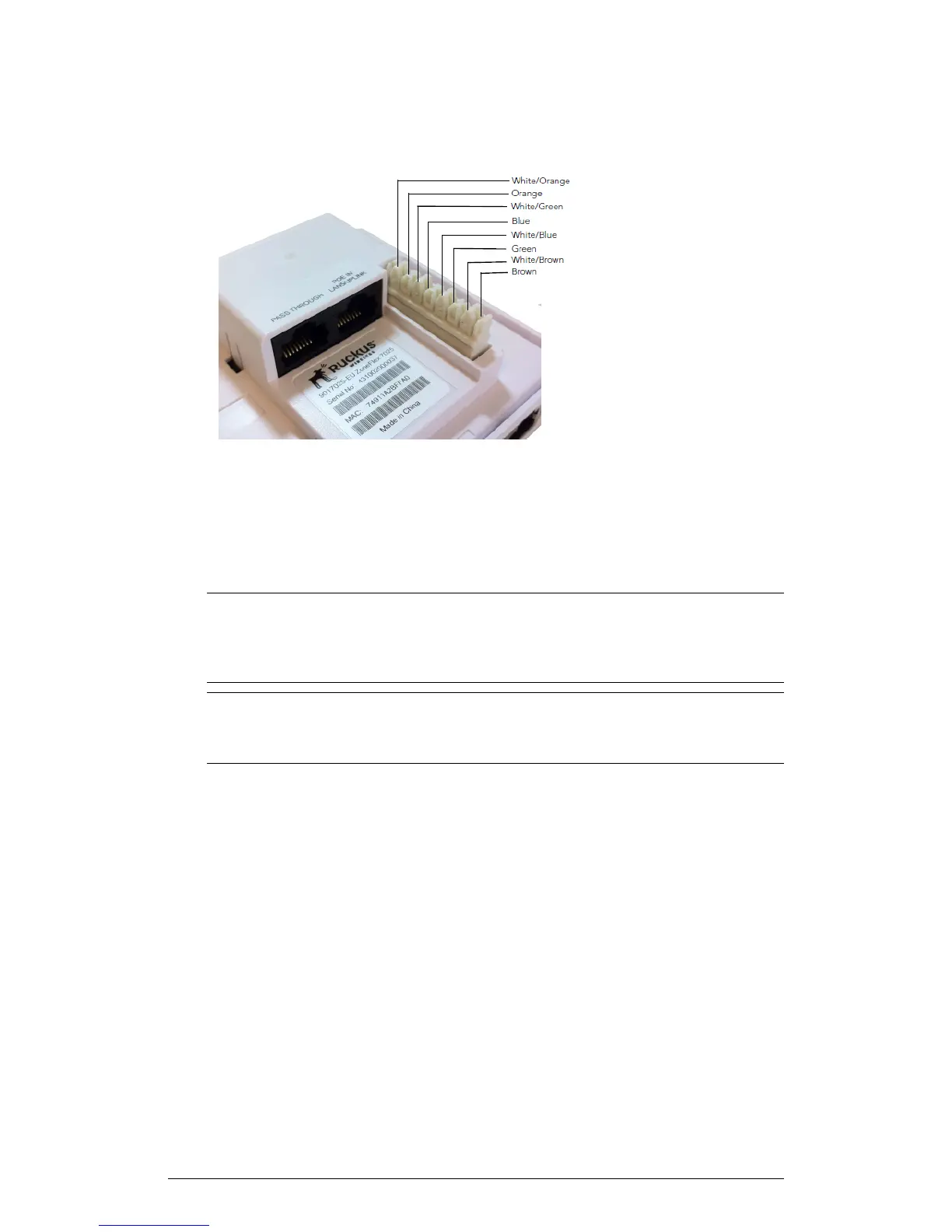

Figure 6: 7055 AP punch-down block wiring
ZoneFlex 7352
The ZoneFlex 7352 is a best-performing, mobile-ready, two-stream single-band (2.4
GHz) 802.11n AP.
NOTE The 100.x AP base images support standalone mode and FlexMaster (FM)
WLAN manager operation. The SmartZone software-compatible images only support
Ruckus Wireless SCG, SZ and vSZ controllers The ZD-compatible images only support
ZD controllers.
NOTE The 7352 requires a minimum of AP base image 100.0.0 and later to operate,
or SCG 1.1.1 and later, vSZ 2.5 and later, SmartZone software 3.2 and later, or ZD 9.5.1
and later to operate.
The 7352 includes five LEDs on its front panel and buttons and connectors on its rear
panel.
Front Panel
The following figure shows the top view of the 7352. For a description of each front panel
part, refer to the table below.
ZoneFlex Indoor Access Point Release 104.0 User Guide
17
