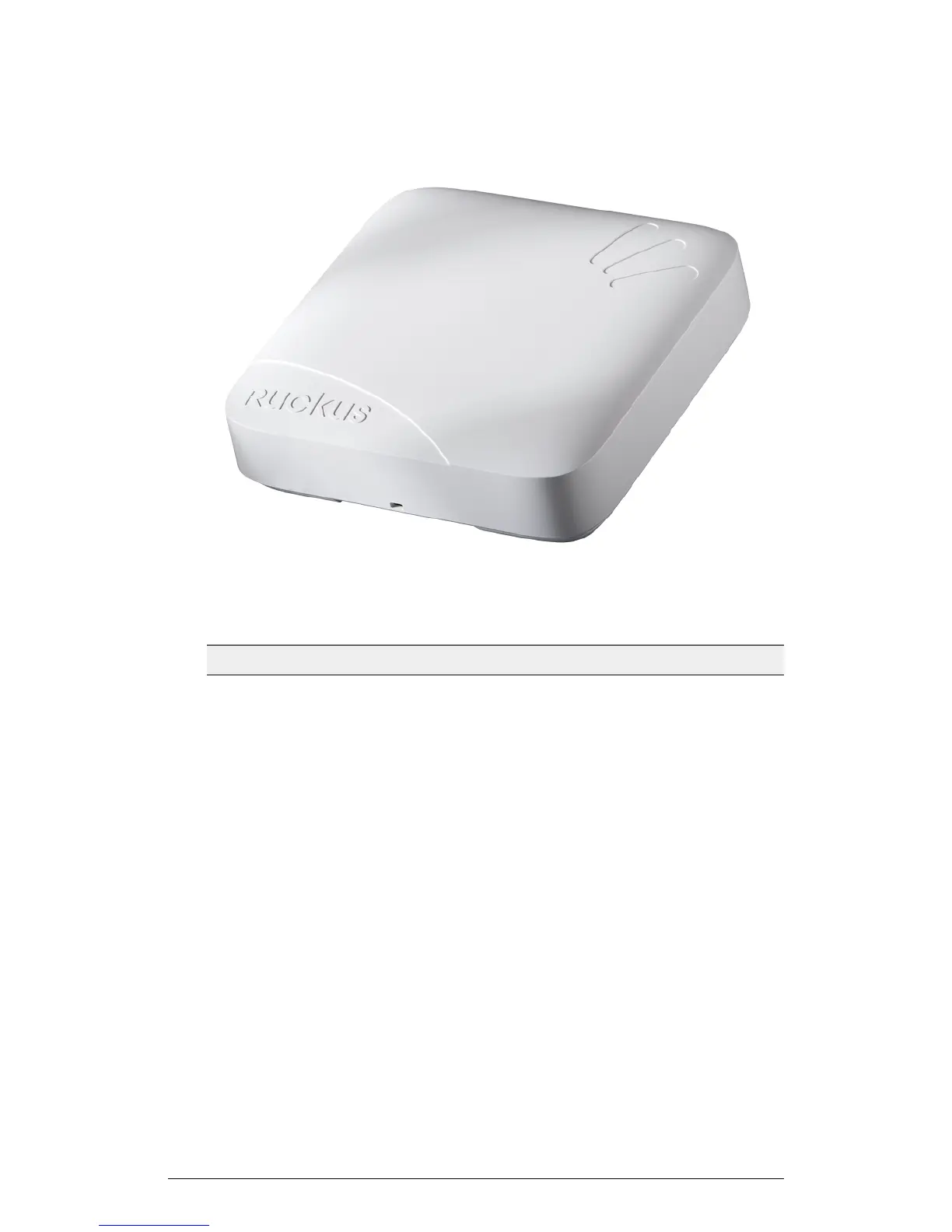

Figure 13: 7982 top view
Table 10: 7982 front panel elements
DescriptionLED
• Off: Off.
• Red: Boot up in process.
• Flashing Green: No routable IP address
• Green: On.
Power LED
• Off: The AP is not being managed by a
Ruckus Wireless controller (standalone
mode).
• Green: The AP is being managed by a
Ruckus Wireless controller.
• Slow flashing green (one flash every two
seconds): The AP is being managed by
a controller, but is currently unable to
communicate with the controller.
• Fast flashing green (two flashes every
second): The AP is being managed by
a controller and is currently receiving
configuration settings (provisioning) or
an image update.
DIR LED
