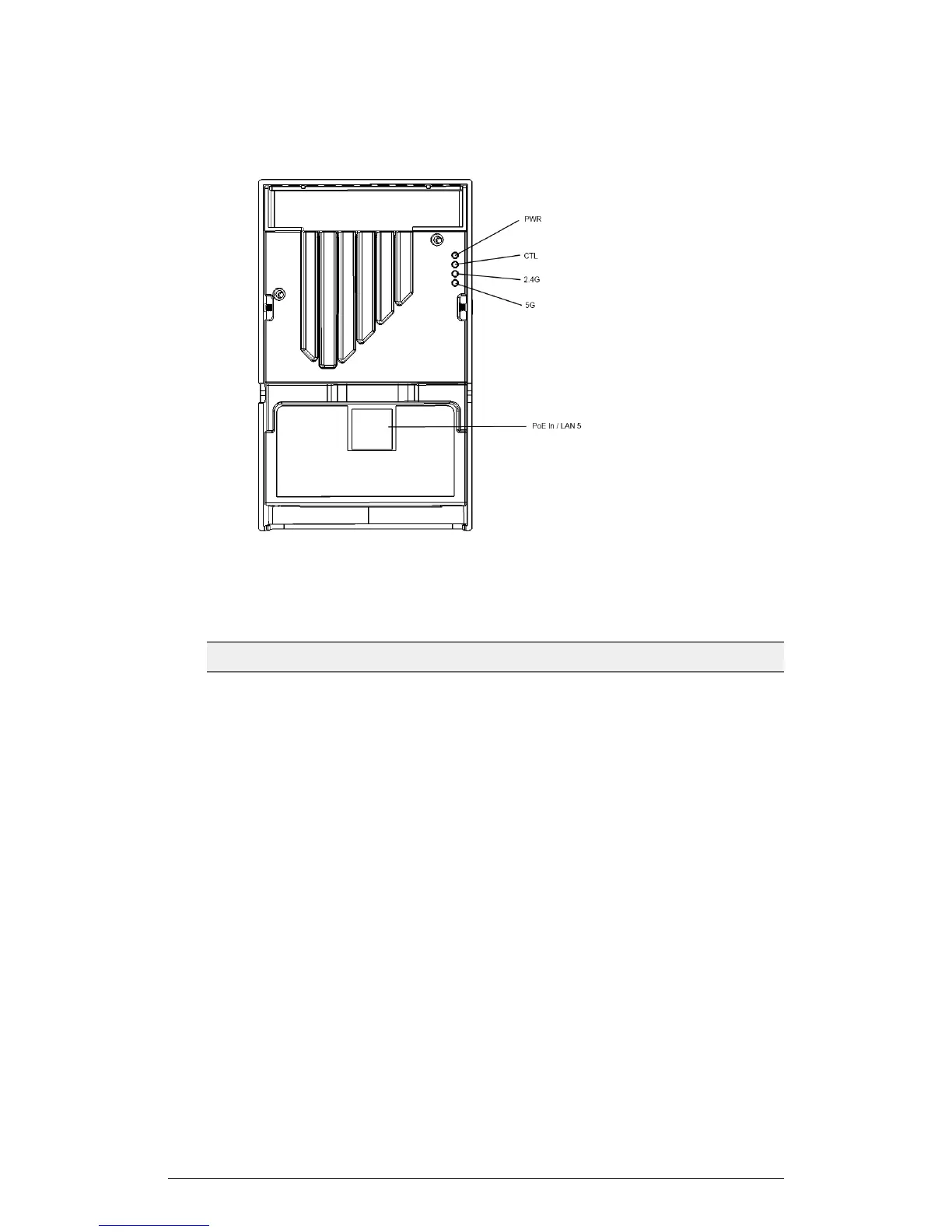

Figure 20: H510 rear view
Table 17: H510 rear panel elements
DescriptionLED
• Off: Off.
• Red: Boot up in process.
• Flashing Green: No routable IP address
• Green: On.
PWR
• Off: The AP is not being managed by a Ruckus Wireless controller
(standalone mode).
• Green: The AP is being managed by a Ruckus Wireless controller.
• Slow flashing green (one flash every two seconds): The AP is being
managed by a Ruckus Wireless controller, but is currently unable
to communicate with the controller.
• Fast flashing green (two flashes every second): The AP is being
managed by a Ruckus Wireless controller and is currently receiving
configuration settings (provisioning) or an image update.
CTL
• Off: The 2.4GHz WLAN service is down.
• Green: The WLAN service is up, at least one client is associated,
and signal quality is good (RSSI >= 15).
• Amber: The WLAN service is up but no clients are associated.
2.4GHz WLAN
40
ZoneFlex Indoor Access Point Release 104.0 User Guide
Introduction
Getting to Know the AP Features
