• Username: Type your PPP user name.
• Password: Type the password for the account.
• L2TP Tunnel Untag VLAN ID: Enter the Untag VLAN ID for the L2TP tunnel.
6. In Close WLAN When Tunnel Fail, select Enable if you want to disable the WLAN
when the tunnel connection is lost. This prevents clients from remaining connected
to the WLAN but without Internet connectivity.
7. Click Update Settings to save your settings.
Configuring Local Subnets
Ruckus Wireless APs can be configured to provide routing/network address translation
(NAT) functionality by using the Local Subnets feature.
When a Local Subnet is enabled, the standalone AP serves as a gateway router with
the ability to manage its own subnets, providing DHCP server and DNS cache functions
for both wired and wireless clients. These clients can be assigned private IP addresses
from a user-defined address pool. Traffic from the client station in private address space
appears on the outside as if generated by the AP itself. In this way, the AP performs
Layer 3 packet forwarding not only for Hotspot/WISPr usage, but for standard usage
as well.
Up to four IP subnets can be configured per AP, each with its own address range which
cannot conflict with one another.
1. Go to Configuration > Local Subnets. The four tabs at the top (Local Subnet 1 -
4) allow you to configure each of the four subnets independently.

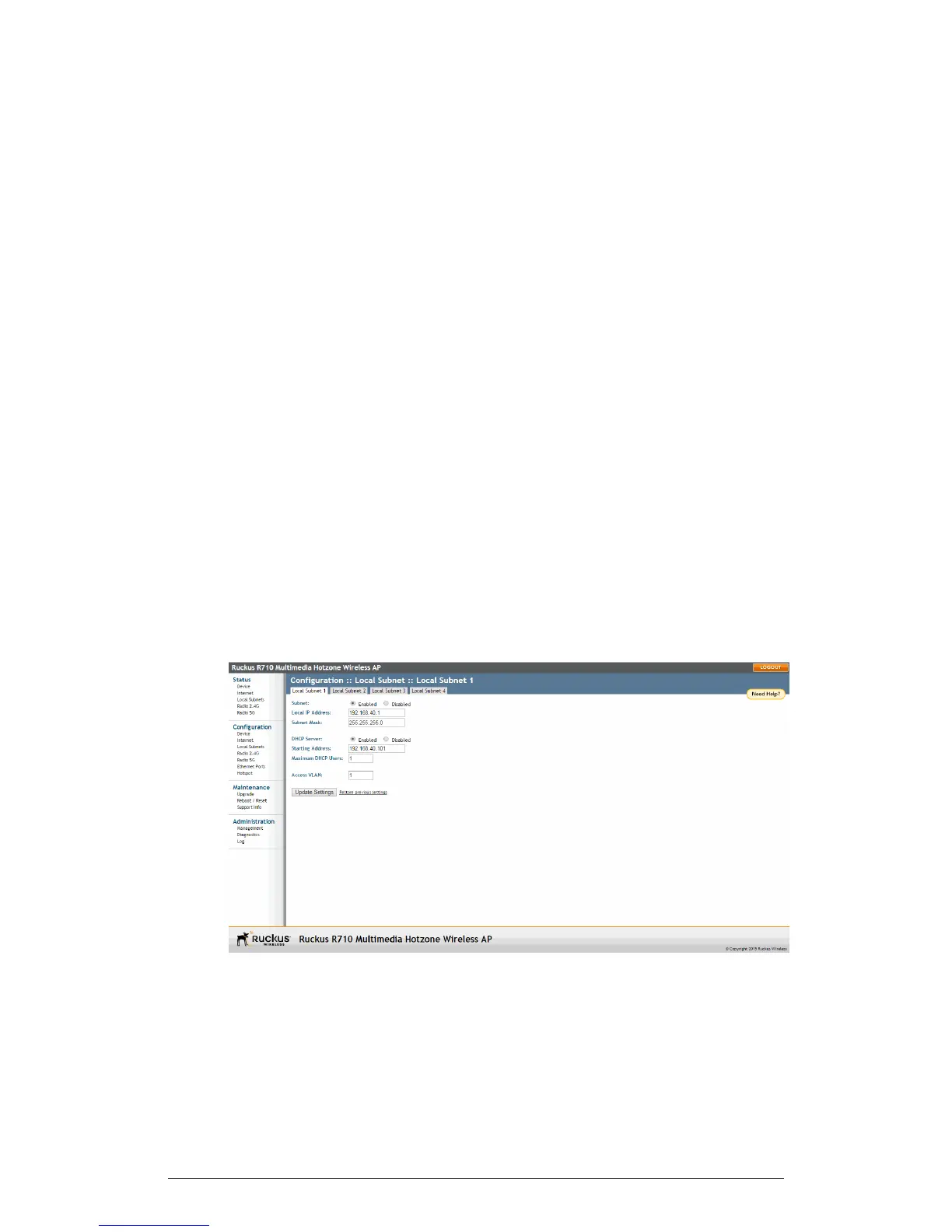

Figure 51: Configuring local subnets and enabling router mode
2. Click Enabled next to Subnet. The local subnet configuration options appear.
98
ZoneFlex Indoor Access Point Release 104.0 User Guide
Configuration
Configuring the AP
