Disassembly and Reassembly
Samsung Electronics 115
No. Work Procedure Remark

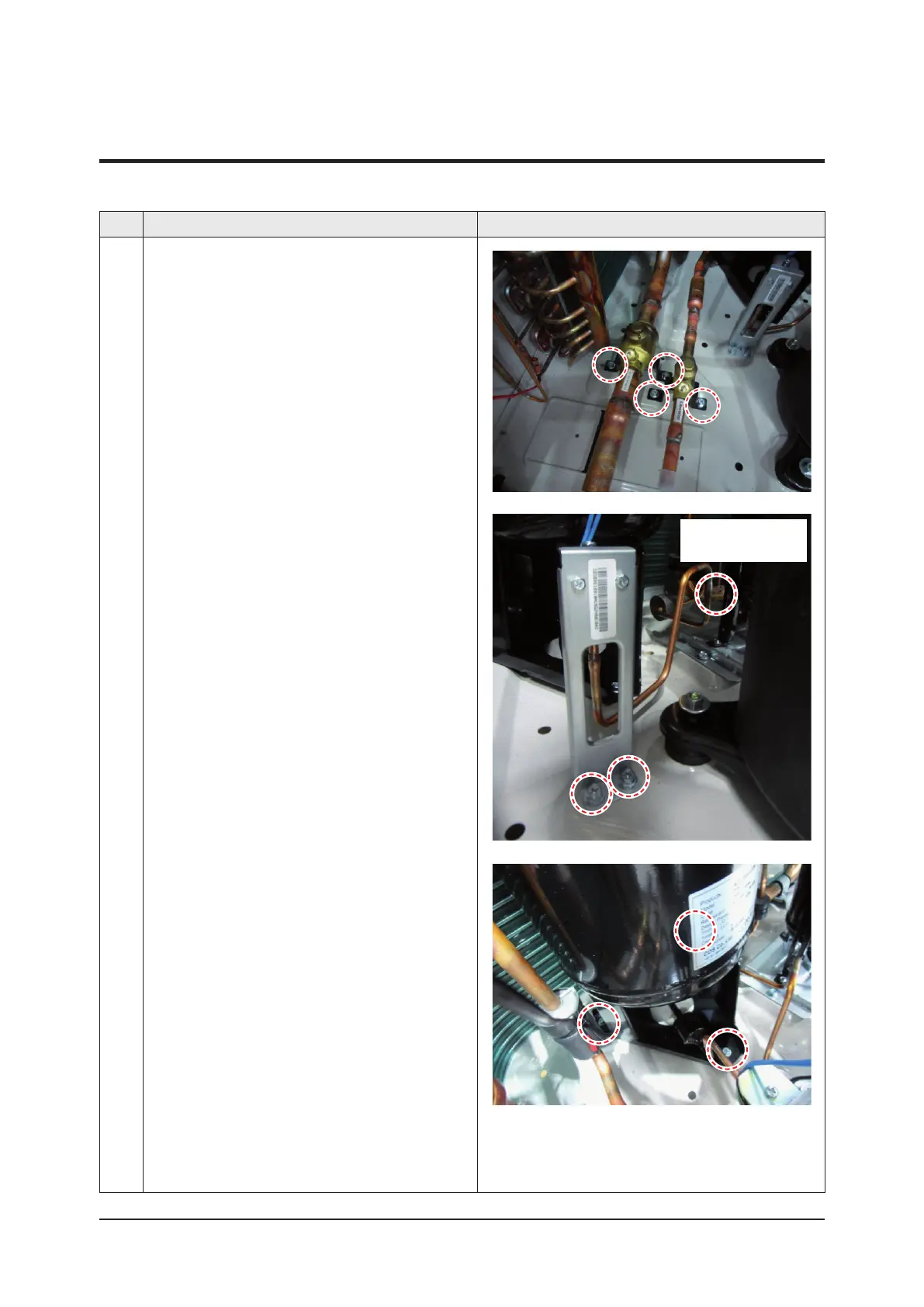

7 - Unfasten the four screws fixing the service valve
at the base of the device and then separate the pipes
from the device.
- Use a torch to heat and separate the welded joint
on the Oil Return Pipe in the lower part of the
Accumulator.
- Unfasten the two screws on the Oil Return Valve.
- Unfasten the three screws on the Accumulator and then
separate the Accumulator from the device.
Welded joint on the
Oil Return Valve
3-2-8 Removal Instructions for the Accumulator (cont.)
3-2 Disassembly and Reassembly (cont.)
To Next Page
