Samsung AM080FX A Series User Manual

Samsung Electronics 130
Disassembly and Reassembly

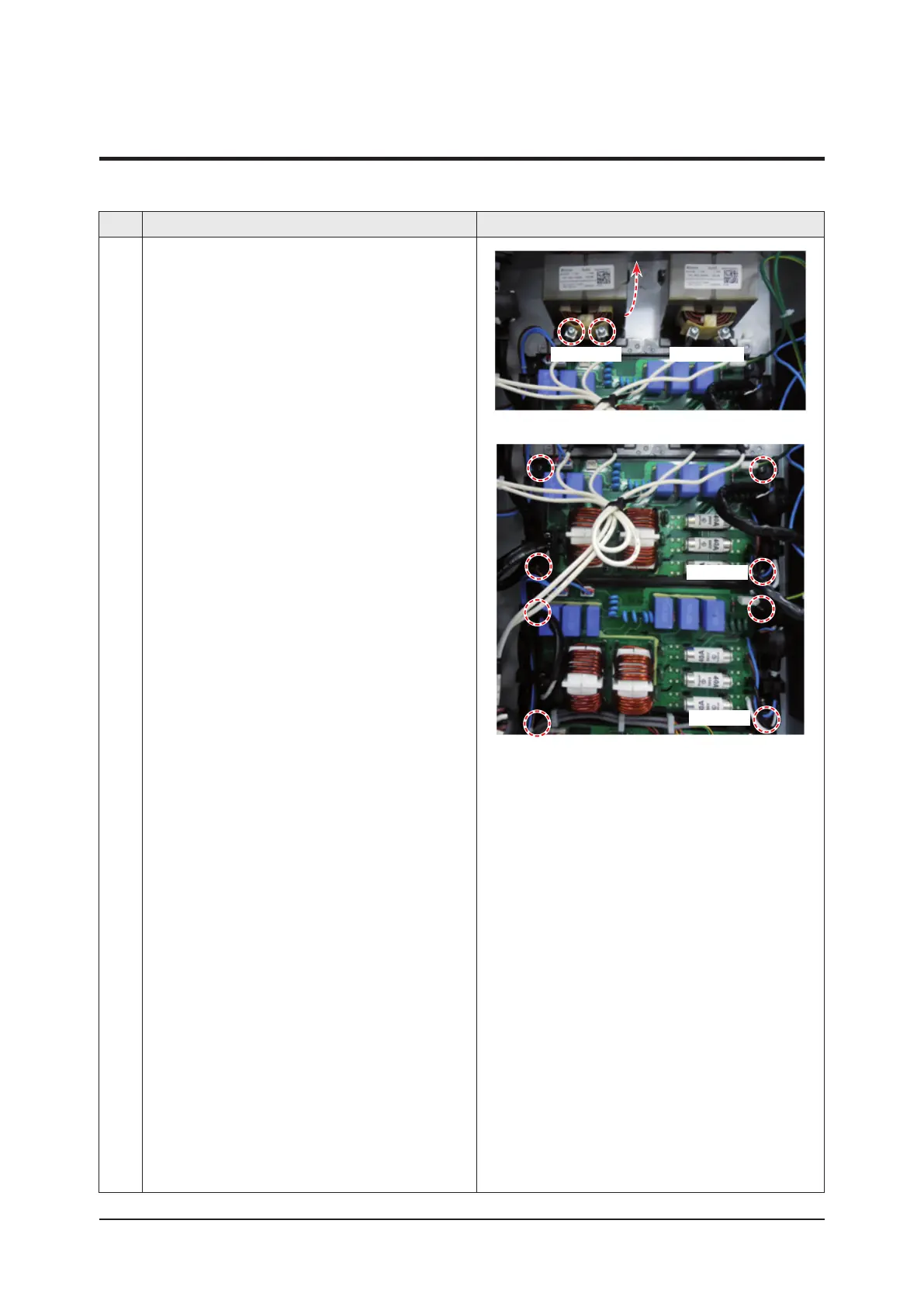

No. Work Procedure Remark
14 - Unfasten the DC Reactor wire screws, and then lift and
separate the Reactors.
(applicable to both Reactors #1 and #2).
- Remove the connectors inside the EMI PBA, and then
unfasten the four screws fixing the case on the PBA.
DC_Reactor #1 DC_Reactor #2
EMI PBA #1
EMI PBA #2
3-2-15 Removal Instructions for the DC Reactors and EMI PBA
