Disassembly and Reassembly
Samsung Electronics 91
No. Work Procedure Remark
1

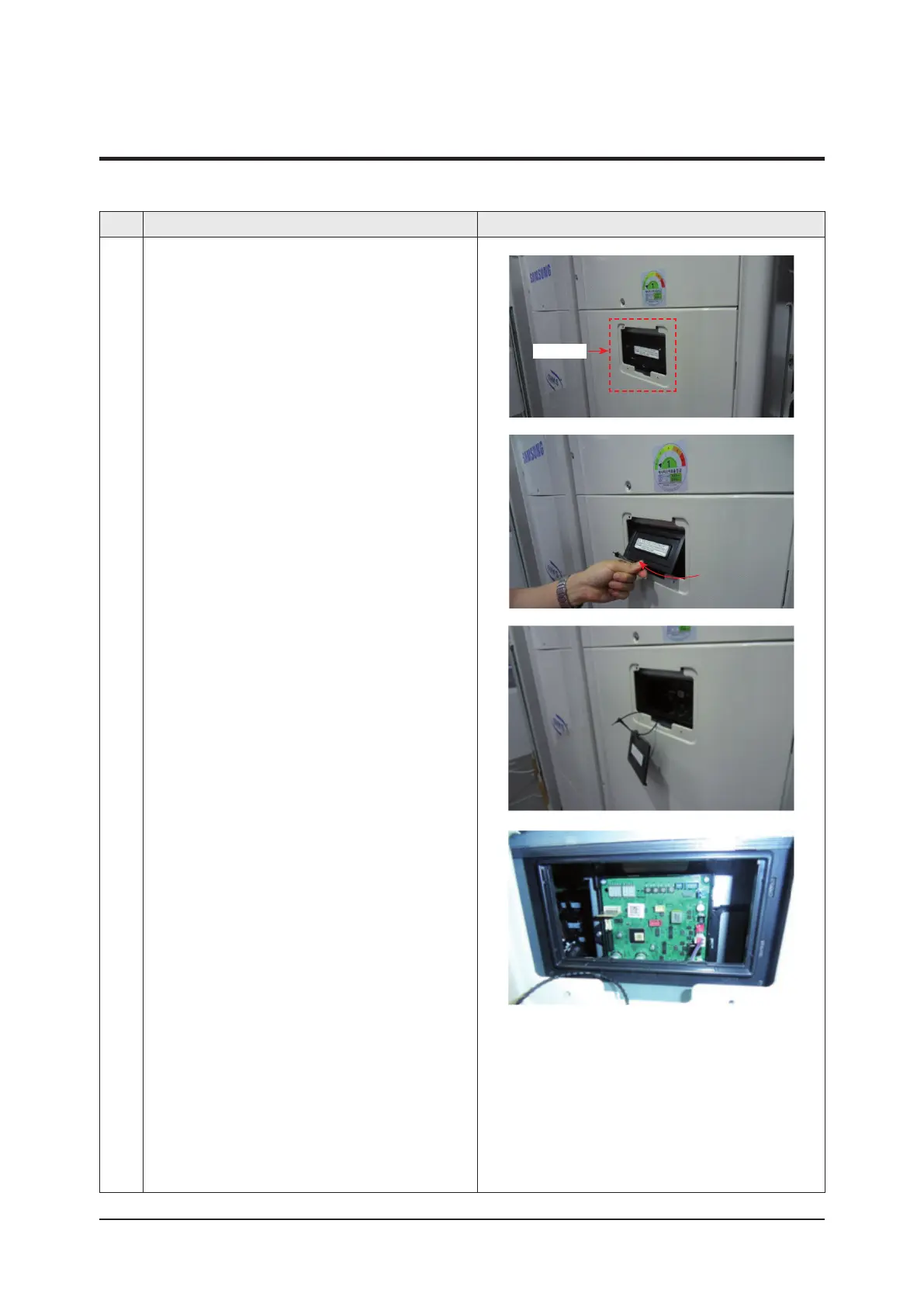

Open the rain cover.
The rain cover is connected via a ring to the device in
order to prevent loss.
- Operating the device with the rain cover opened may
cause rainwater to enter the C-BOX and damage the
PBA.
Use the inspection window on the Main PBA
to check the following.
- Error code
- Operation status (Key Switch K1- K4)
- Trial operation
- Pump down operation
- S-NET connection
(specific operation information and the
cycle-related status value can be viewed)
Rain cover
①
3-2 Disassembly and Reassembly (cont.)
3-2-1 Checking the Device Condition (cont.)
