Samsung Electronics 289

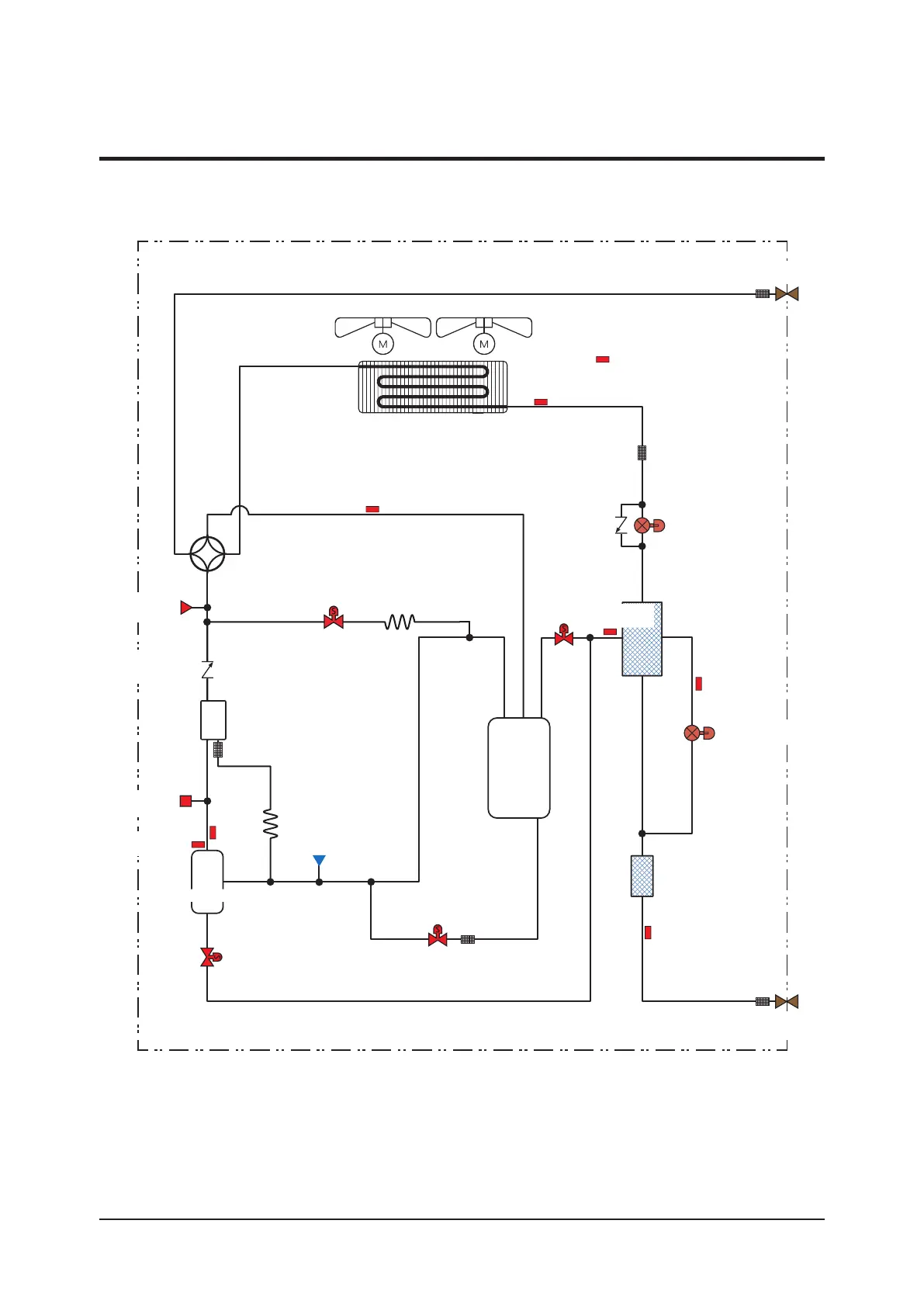

Piping Diagram
7-1-2 AM140F(J)XVSSH (DVM S Heat Pump)
Oil
Separator
(OS)
IPM
Cooler
(IPMC)
Accumulator
(AC)
Ball Valve -
Gas pipe (BV_G)
Thermistor -
Ambient (T_A)
Outdoor Fan Motor 1 (OFM1) Outdoor Fan Motor 2 (OFM2)
Thermistor -
Cond Out (T_CO)
Heat Exchanger - Main (HX_M)
Thermistor -
Suction pipe (T_S)
Check Valve -
EEV Bypass (CV_EB)
Electronic Expansion
Valve - Main (E_M)
Solenoid Valve -
EVI Bypass
(V_EB)
Thermistor -
EVI Out (T_EO)
Heat Exchanger -
Intercooler (HX_IC)
Thermistor -
EVI In (T_EI)
Electronic Expansion
Valve - EVI (E_EVI)
Thermistor -
Liquid pipe (T_L)
Ball Valve -
Liquid pipe (BV_L)
Solenoid Valve -
Accumulator oil Return (V_AR)
Pressure Sensor -
Low (PS_L)
Solenoid Valve -
Hot Gas
bypass (V_HG)
Thermistor -
Discharge
pipe (T_D)
Solenoid Valve -
EVI (V_EVI)
Compressor (COMP)
Thermistor -
Compressor Top (T_CT)
Pressure Switch -
High (PW_H)
Check Valve -
Discharge (CV_D)
Pressure Sensor -
High (PS_H)
Solenoid Valve -
4Way (V_4W)
This Document can not be used without Samsung’s authorization.
7-1 Piping Diagram (cont.)
