Samsung AM080FX A Series - Troubleshooting; Check-Up Window Description

Samsung Electronics 133
No. Specific functions No. Specific functions
1 Totally PBA-PBA uART comm checking 9 Comm PBA connecting (R1/R2)
2 S/W download for Main PBA 10 Central controller connecting(F1/F2)
3
Hub PBA connecting 11 Supplying DC 5V to other component
(uART comm, supplying DC 5,12V from Main) 12 Supplying DC 12V to other component
4 DRED PBA connecting 13 Gas leak detection using MIM-B14
5 External control using MIM-B14 14
6 15 Option switch
7 Comm PBA connecting (OF1/OF2)
16
EEPROM PBA connecting
8 Comm PBA connecting (F1/F2) EEPROM PBA connecting
4. Troubleshooting

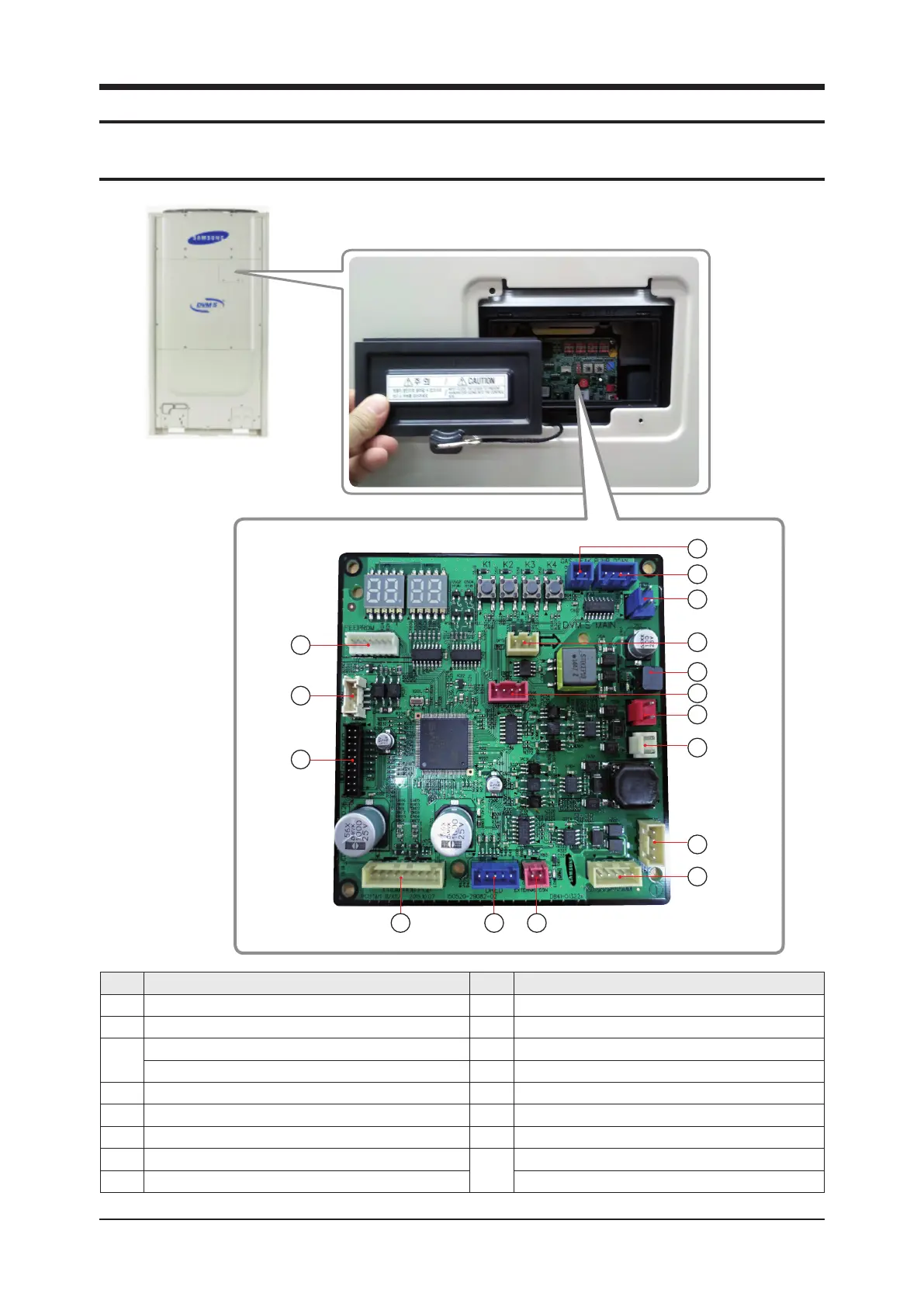

4-1 Check-up Window Description
16
1
2
3 4 5
7
8
9
10
14
13
12
15
11
6
