Disassembly and Reassembly
Samsung Electronics 123
No. Work Procedure Remark

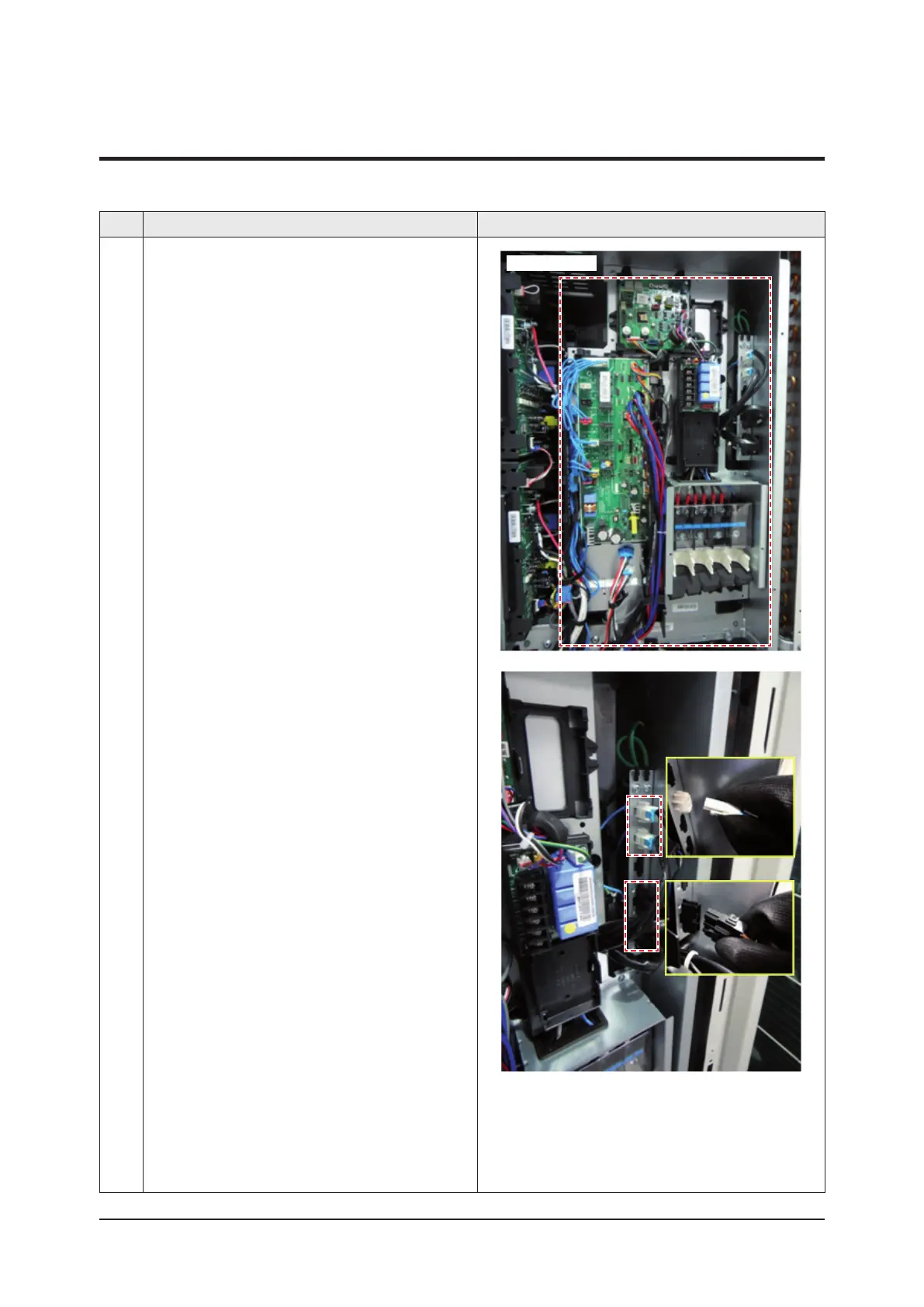

11 - The Control Box consists of a control unit on the front and
a power module inside the Box.
- To perform power supply-related repair service for the
PBA, you must detach the Control Panel Assy on the front.
- Before unfastening the screws, first remove the connec-
tors from the Control Box.
※ To remove the connectors, pull them while pressing
down the hook.
Control Panel Assy
3-2-12 Removal Instructions for the Control Panel Assy
3-2 Disassembly and Reassembly (cont.)
