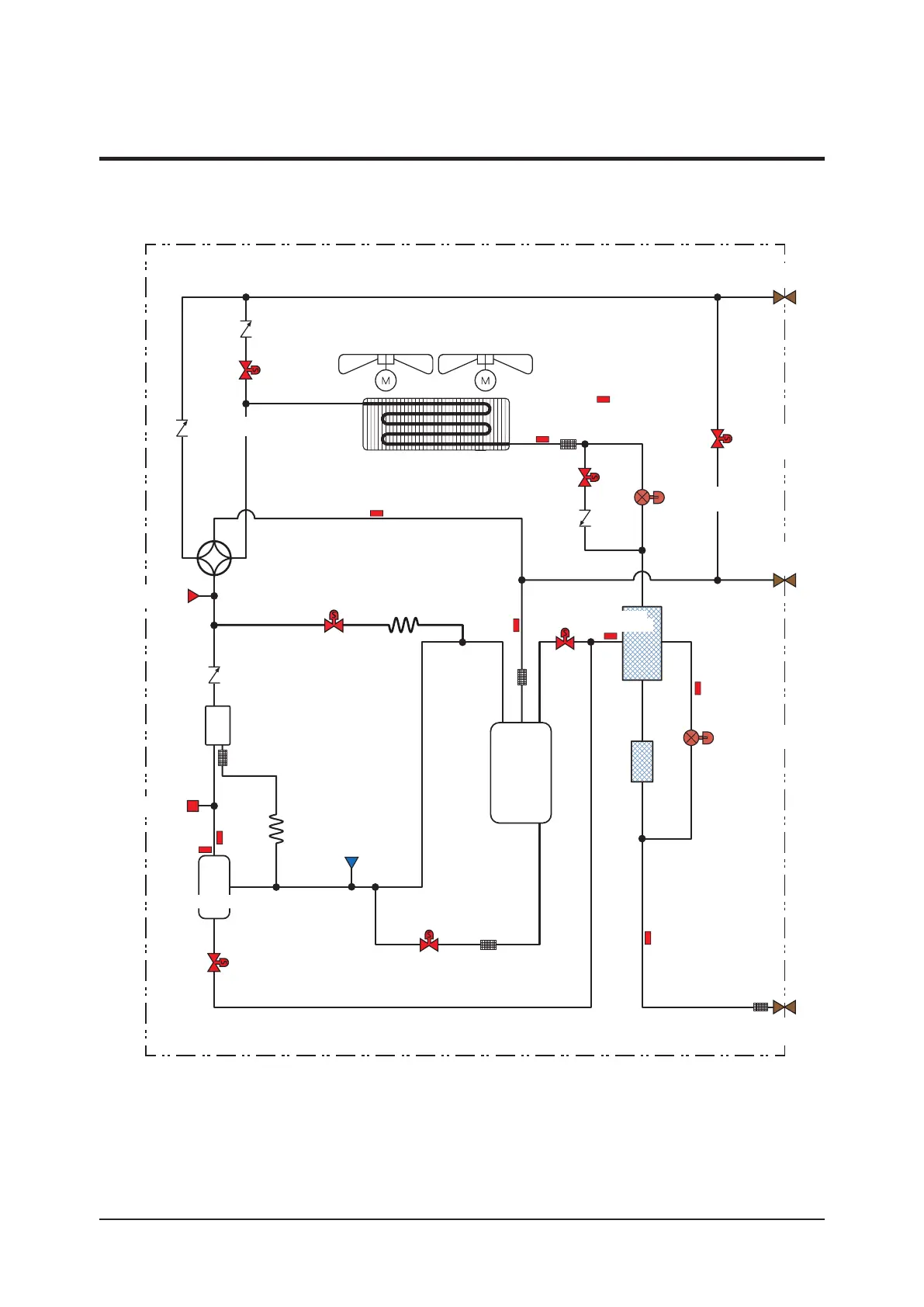

Piping Diagram
Samsung Electronics 298
7-1-10 AM140F(J)XVSSR (DVM S Heat Recovery)
Oil
Separator
(OS)
IPM
Cooler
(IPMC)
Accumulator
(AC)
Ball Valve - High pressure
Gas pipe (BV_HG)
Outdoor Fan Motor 1 (OFM1) Outdoor Fan Motor 2 (OFM2)
Thermistor -
Ambient (T_A)
Thermistor -
Cond Out (T_CO)
Solenoid Valve -
Hot Gas bypass 2
(V_HG2)
Electronic Expansion
Valve - Main (E_M)
Ball Valve - Low pressure
Gas pipe (BV_LG)
Check Valve -
EEV Bypass
(CV_EB)
Solenoid Valve -
Main EEV (V_ME)
Heat Exchanger - Main (HX_M)
Thermistor -
Suction pipe (T_S)
Heat Exchanger -
Intercooler (HX_IC)
Solenoid
Valve -
EVI Bypass
(V_EB)
Thermistor -
EVI Out (T_EO)
Thermistor -
Suction pipe 2 (T_S2)
Thermistor -
EVI In (T_EI)
Thermistor -
Liquid pipe (T_L)
Electronic Expansion
Valve - EVI (E_EVI)
Ball Valve -
Liquid pipe (BV_L)
Solenoid Valve -
Accumulator oil
Return (V_AR)
Pressure
Sensor -
Low (PS_L)
Solenoid Valve -
Hot Gas bypass
(V_HG)
Solenoid Valve -
EVI (V_EVI)
Compressor (COMP)
Thermistor -
Compressor
Top (T_CT)
Thermistor -
Discharge
pipe (T_D)
Pressure Switch -
High (PW_H)
Check Valve -
Discharge
(CV_D)
Pressure Sensor -
High (PS_H)
Solenoid Valve -
4Way (V_4W)
Check Valve -
Heat Recovery
(CV_HR)
Check Valve -
Main Cooling(CV_MC)
Solenoid Valve -
Main Cooling
(V_MC)
