Samsung AM080FX A Series User Manual

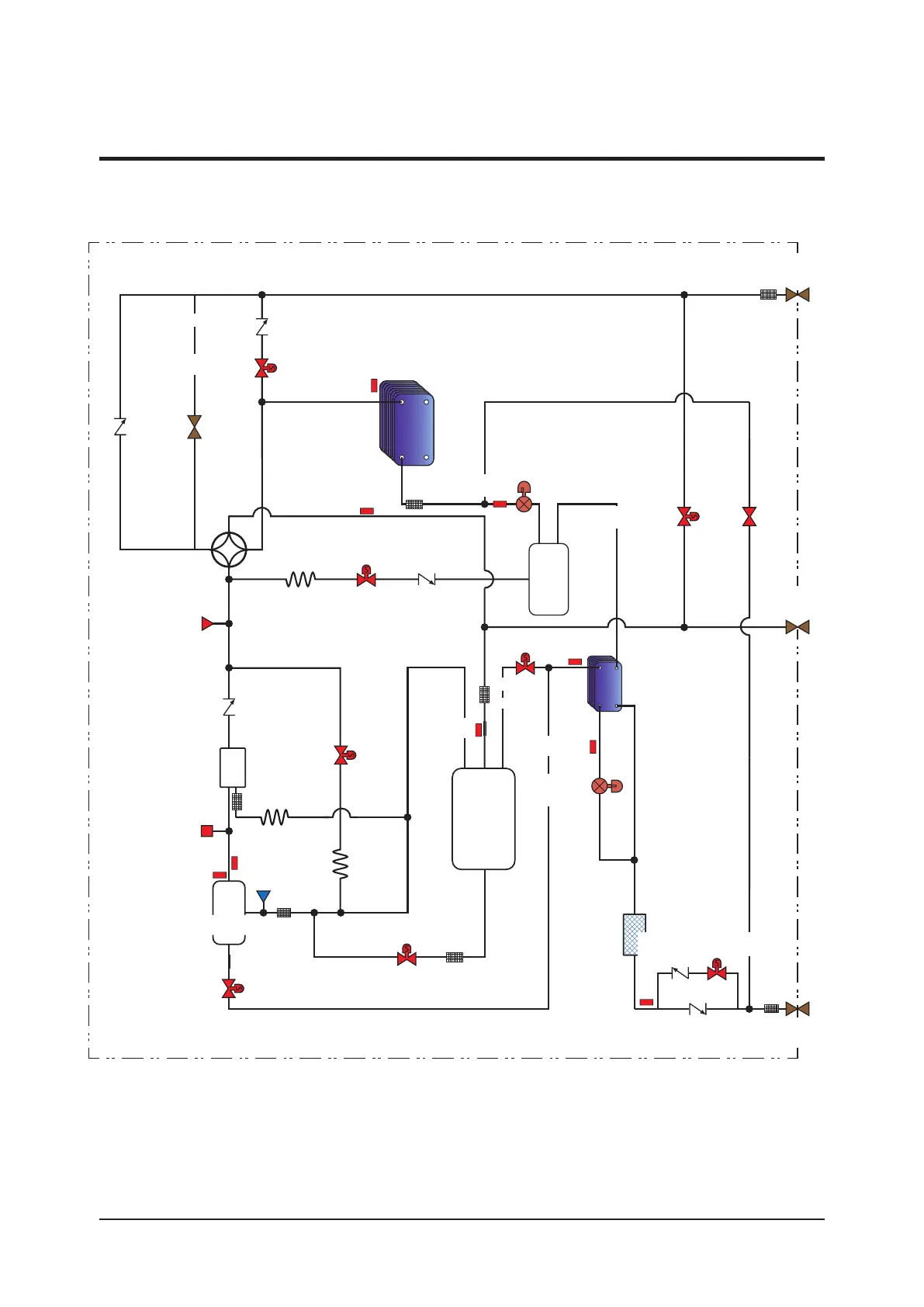

Piping Diagram
Samsung Electronics 300
7-1-12 AM080/100/120FXWASR (DVM S Water Heat Recovery)
EVI Valve
(V4)
Receiver
Accumulator
(AC)
Ball Valve -
High pressure
Gas pipe (BV_HG)
Electronic Expansion
Valve - Main (E_M)
Solenoid Valve -
Hot Gas bypass 2
(V_HG2)
Valve -
Pressure
Regulating
(V_PR)
Ball Valve -
Low pressure
Gas pipe (BV_LG)
Thermistor -
EVI Out (T_EO)
Solenoid
Valve -
EVI Bypass
(V_EB)
Heat Exchanger -
Intercooler (HX_IC)
Thermistor -
EVI In (T_EI)
Electronic
Expansion
Valve - EVI
(E_EVI)
IPM Cooler
(IPMC)
Check Valve -
Liquid pipe 2
(CV_L2)
Thermistor -
Liquid pipe (T_L)
Check Valve -
Liquid pipe (CV_L)
Ball Valve -
Liquid pipe (BV_L)
Solenoid Valve -
Accumulator oil Return (V_AR)
Solenoid Valve -
EVI (V_EVI)
Pressure Sensor -
Low (PS_L)
Compressor
(COMP)
Thermistor -
Discharge
pipe (T_D)
Thermistor -
Compressor
Top (T_CT)
Pressure Switch -
High (PW_H)
Oil Separator
(OS)
Solenoid Valve -
Hot Gas bypass
(V_HG)
Check Valve -
Discharge (CV_D)
Pressure Sensor -
High (PS_H)
Solenoid Valve -
4Way (V_4W)
Solenoid Valve -
Hot gas Charging
(V_HC)
Check Valve -
Hot gas Charging
(CV_HC)
Thermistor -
Suction pipe (T_S)
Heat Exchanger -
PHE (HX_PHE)
Thermistor -
Water (T_W)
Check Valve -
Main Cooling
(CV_MC)
Solenoid Valve -
Main Cooling
(V_MC)
Check Valve-
Heat Recovery
(CV_HR)
Ball Valve -
Heat Pump
(BV_HP)
Solenoid Valve -
Liquid pipe (V_L)
Thermistor -
Cond Out (T_CO)
Thermistor -
Suction pipe 2
(T_S2)
This Document can not be used without Samsung’s authorization.
7-1 Piping Diagram (cont.)
