Samsung Electronics 116
Disassembly and Reassembly
No. Work Procedure Remark

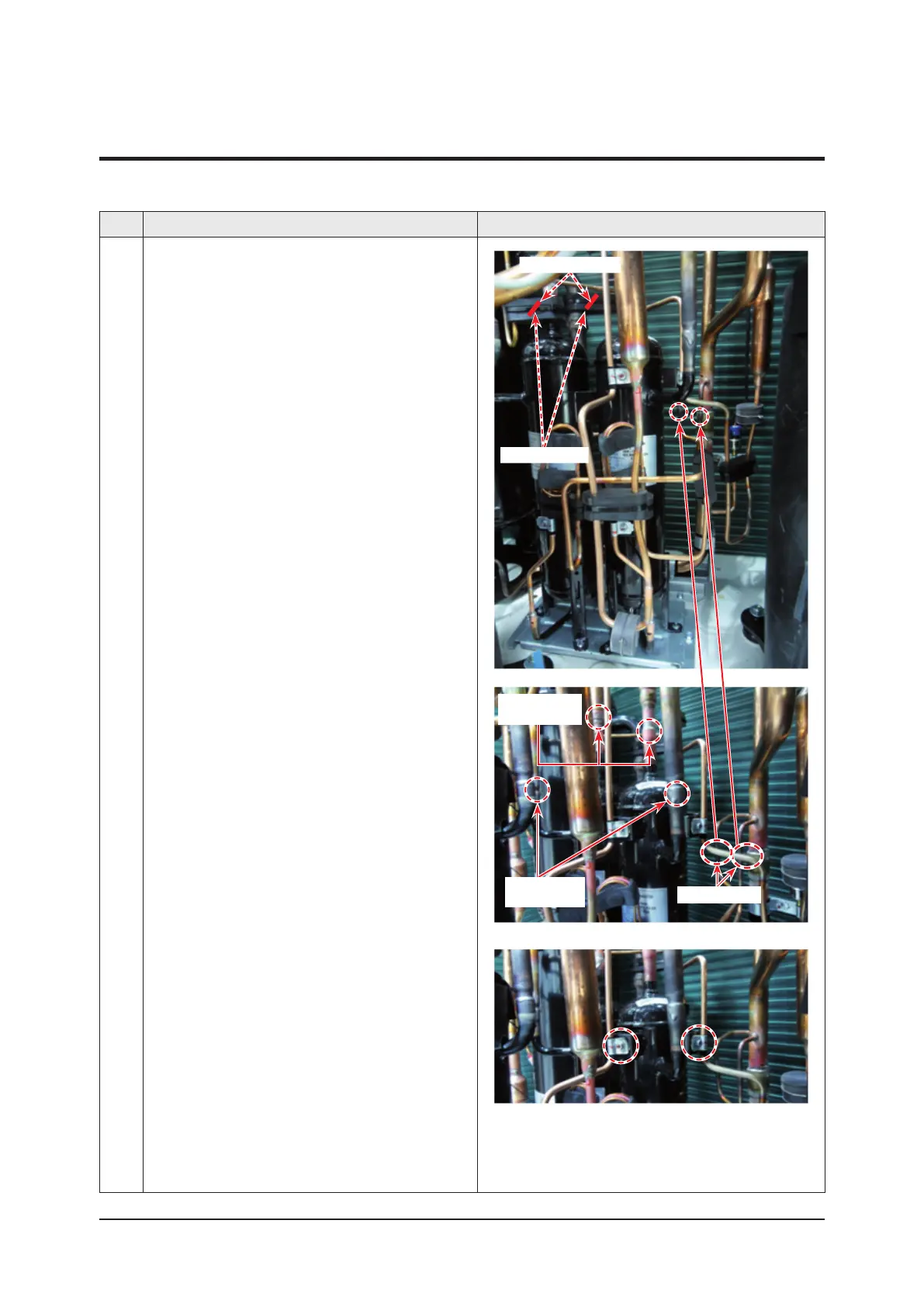

8 - Two Oil Separators are mounted as a single assembly.
- To remove the Oil Separators, first you must separate
the six welded joints.
- Before separating the welded joints, cut out the
two cable ties on the RubberMHolder fixing the pipe
and then separate the Rubber Holder.
- Use a torch to heat and separate the six welded joints.
- Unfasten the screw on each of the two clamps fixing the
other pipes.
Cable tie cutting
Rubber Holder
Refrigerant
discharge port
Refrigerant
suction port
Oil Return Pipe
3-2-9 Removal Instructions for Oil Separators
3-2 Disassembly and Reassembly (cont.)
