Samsung AM080FX A Series User Manual

Disassembly and Reassembly
Samsung Electronics 103

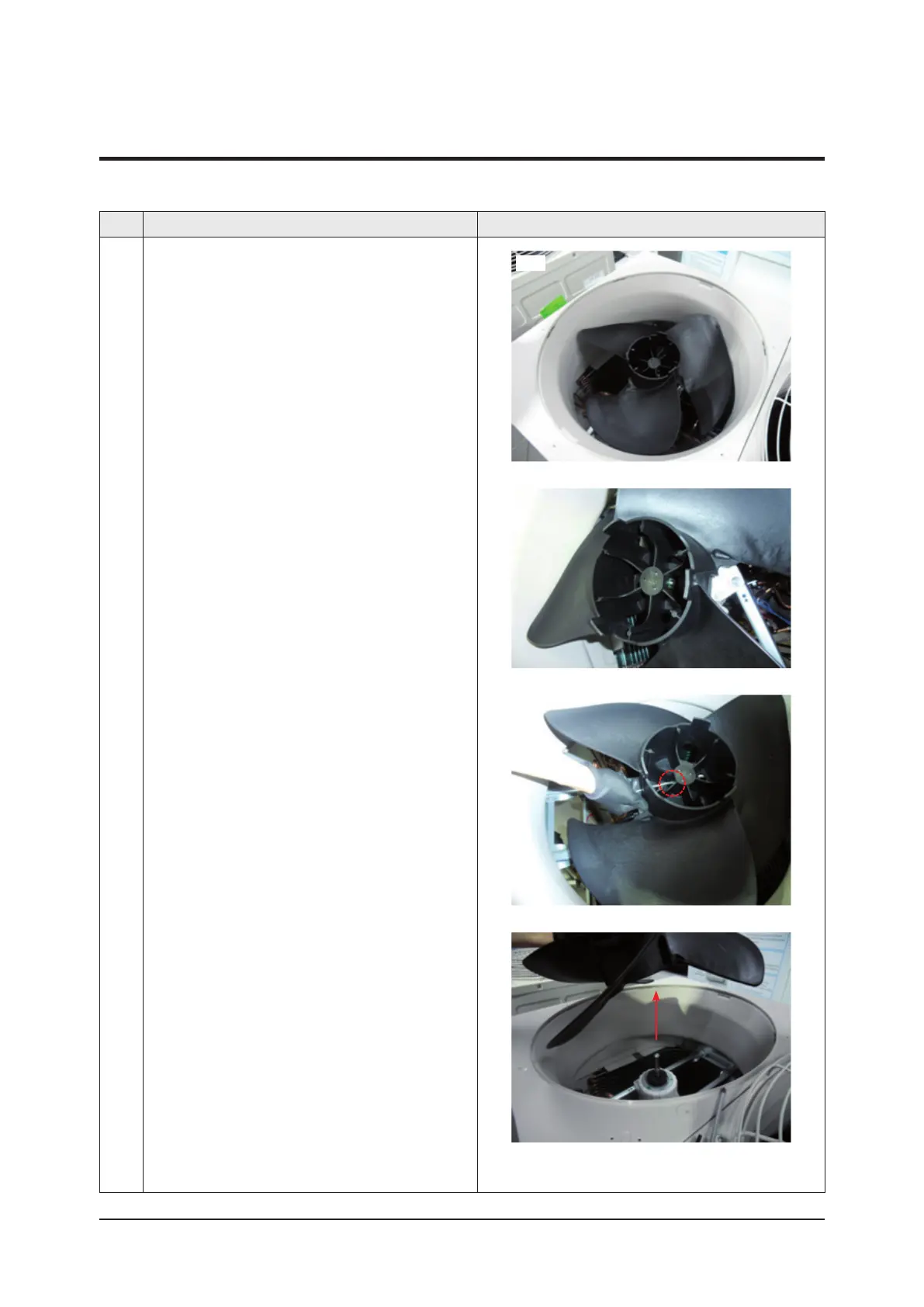

No. Work Procedure Remark
5 1) Disassembling a fan
- A Guard Fan has been removed as shown.
- Use a 5mm hex wrench to unfasten the single screw
on the Fan Propeller.
- Lift and separate the Fan Propeller.
Fan
3-2 Disassembly and Reassembly (cont.)
3-2-5 Removal Instructions for Fan and Motor
