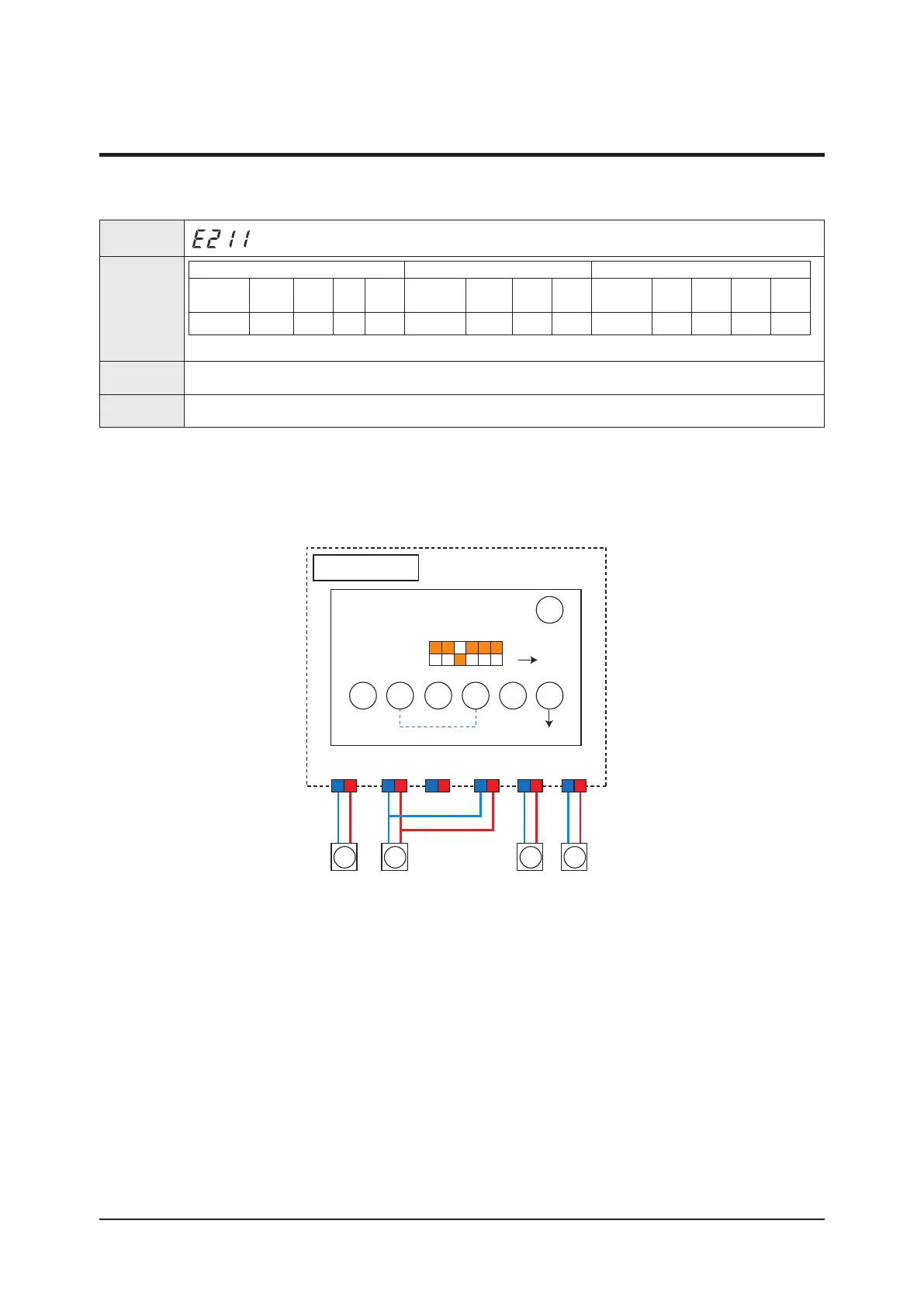

4-3-8 MCU branch part setup error – inconsecutive connection with the use of 2 branch parts
1. How to check
Find an MCU that is composed as the following picture to carry out assembly of branch part again. After completing the re-setting,
press K3 button on the button to reset or turn it off to restart.
MCU BOX #0
MCU PCB
OFF
MCU
address setup
ON
Setting error
Indoor unit
Indoor unit address
Branch part use setup
4 2 1 2 5 6
0
Branch A
4
B
2
C
D E
5
F
6
MCU BOX #0
MCU PCB
OFF
MCU
address setup
ON
Setting error
Indoor unit
Indoor unit address
Branch part use setup
4 2 2 2 5 6
0
Branch A
4
B
2
C
D E
5
F
6
Outdoor unit
display
Indoorunit
display
Duct, Cassette (1/2 Way),Console, Celing Cassette (4/Mini4 Way) Wall-mounted (NeoForte)
Operation Defrost Timer Fan
Filter/
MPI
Operation Defrost Timer Filter Operation Timer Turbo
24℃ 27℃
× × ◑ ◑ × × ◑ ◑ × × × ◑ ◑ ×
※ ●: ON ◑: Flash ×: OFF
Judgment
Method
• When 2 branch parts are used for one indoor unit without connecting them consecutively.
Cause of
problem
• Branch part assembly error
4-3 Appropriate Measures for Different Symptom (cont.)
