Samsung Electronics 291

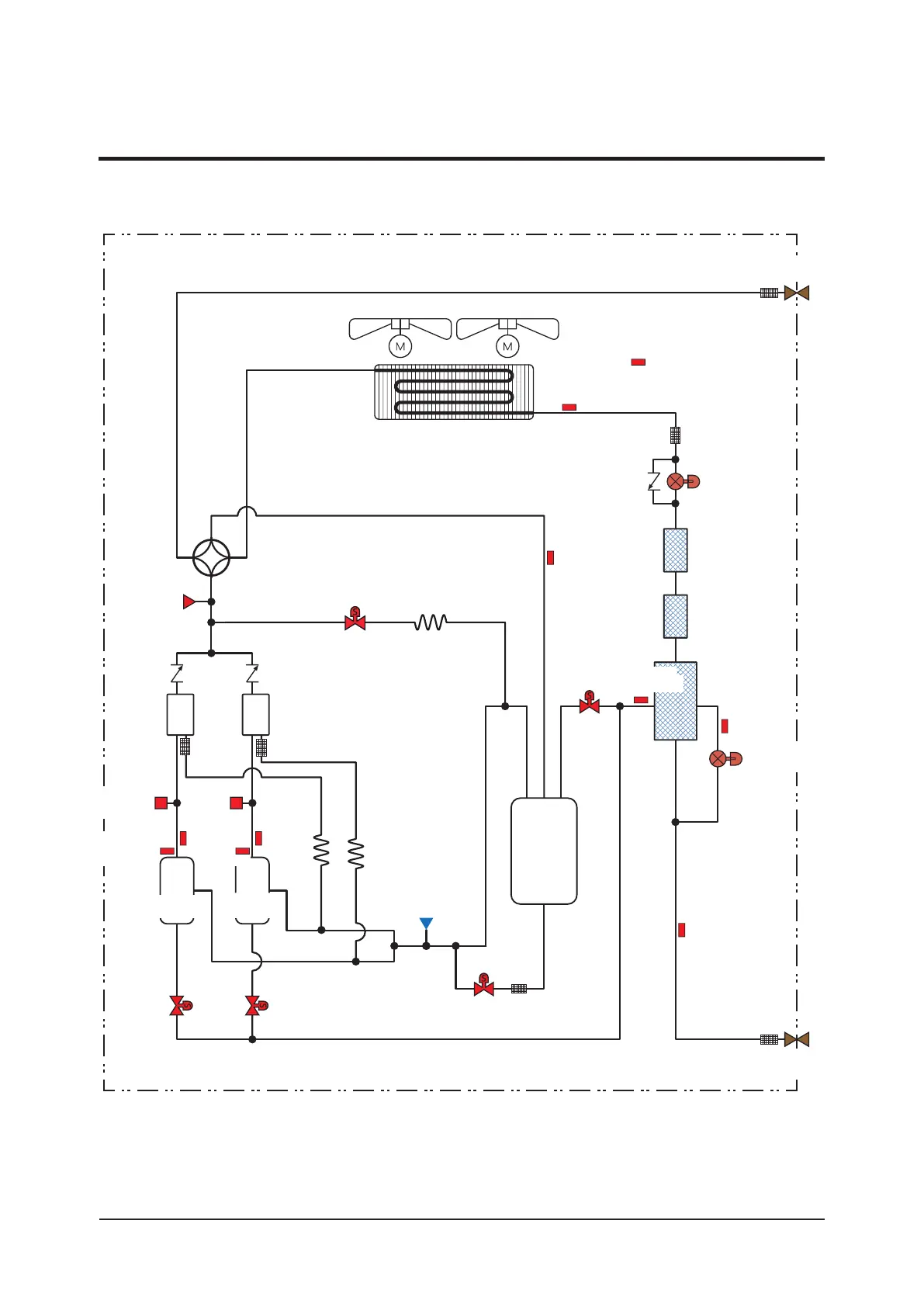

Piping Diagram
7-1-4 AM160/180/200/220F(J)XVSSH (DVM S Heat Pump)
Accumulator
(AC)
Ball Valve -
Gas pipe (BV_G)
Outdoor Fan Motor 1 (OFM1) Outdoor Fan Motor 2 (OFM2)
Thermistor -
Ambient (T_A)
Thermistor -
Cond Out (T_CO)
Heat Exchanger - Main (HX_M)
Check Valve -
EEV Bypass (CV_EB)
Electronic Expansion
Valve - Main (E_M)
Thermistor -
Suction pipe (T_S)
IPM Cooler 1 (IPMC1)
IPM Cooler 2 (IPMC2)
Solenoid
Valve - EVI
Bypass (V_EB)
Thermistor -
EVI Out (T_EO)
Heat Exchanger -
Intercooler (HX_IC)
Thermistor -
EVI In (T_EI)
Electronic Expansion
Valve - EVI (E_EVI)
Thermistor -
Liquid pipe (T_L)
Ball Valve -
Liquid pipe (BV_L)
Solenoid Valve -
Accumulator oil Return (V_AR)
Solenoid Valve -
EVI 2 (V_EVI2)
Solenoid
Valve -
EVI 1 (V_EVI1)
Compressor 2
(COMP2)
Compressor 1
(COMP1)
(T_D2)
Thermistor -
Discharge
pipe 1 (T_D1)
(T_CT2)
Thermistor -
Compressor
Top 1 (T_CT1)
Pressure Switch -
High 1 (PW_H1)
Oil
Separator 1
(OS1)
(OS2)
(CV_D2)
Check Valve -
Discharge 1
(CV_D1)
Pressure
Sensor -
High (PS_H)
Solenoid Valve -
4Way (V_4W)
Solenoid Valve -
Hot Gas bypass (V_HG)
Pressure
Sensor -
Low (PS_L)
(PW_H2)
This Document can not be used without Samsung’s authorization.
7-1 Piping Diagram (cont.)
