Product Specifications

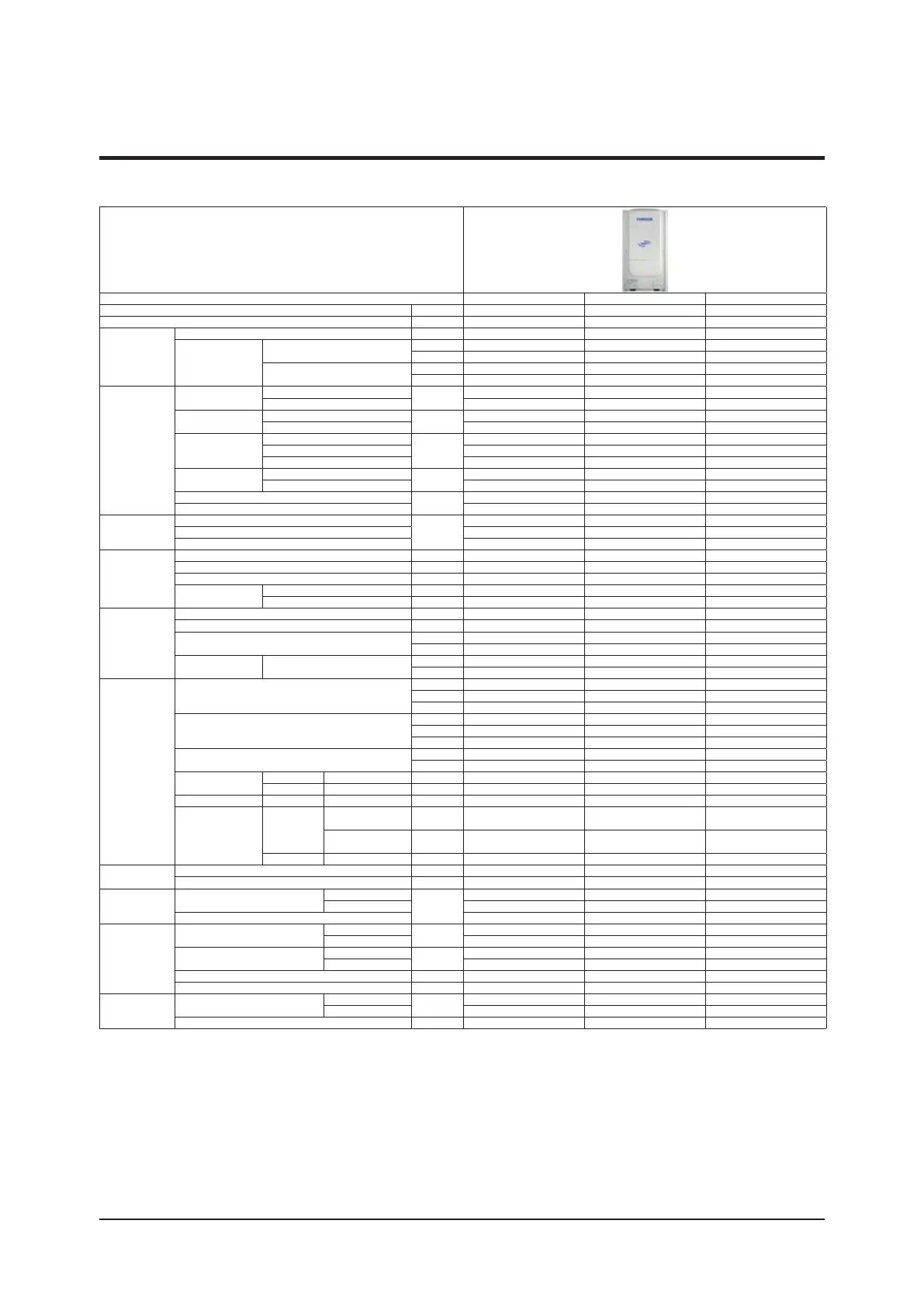

2-5 Product Specification
2-5-1 Outdoor Unit
Model Name AM080FXVAGH AM100FXVAGH AM120FXVAGH
Power Supply Φ, V, Hz 3/AC380~415/50 3/AC380~415/50 3/AC380~415/50
Mode - HEAT PUMP HEAT PUMP HEAT PUMP
Performance
HP HP 8 10 12
Capacity
(Nominal)
Cooling
kW 22.4 28.0 33.6
Btu/h 76,400 95,500 114,600
Heating
kW 25.2 31.50 37.80
Btu/h 86,000 107,500 129,000
Power
Power Input
(Nominal)
Cooling 1)
kW
5.00 6.80 8.40
Heating 2) 5.10 6.70 8.70
Current Input
(Nominal)
Cooling 1)
A
8.00 10.90 13.50
Heating 2) 8.20 10.70 14.00
Running Current
Cooling
A
8.00 10.90 13.50
Heating 8.20 10.70 14.00
Max 18.00 21.10 25.00
Power Consumption
Cooling 1)
kW
5.00 6.80 8.40
Heating 2) 5.10 6.70 8.70
MCA(Minimum Circuit Amps)
A
22.50 29.90 31.30
MFA/MOP(Maximum Fuse Amps) 30.00 40.00 40.00
COP
Nominal Cooling 1)
W/W
4.48 4.12 4.00
Nominal Heating 2) 4.94 4.70 4.34
ESEER 7.85 7.25 7.03
Compressor
Type - INV x1 INV x1 INV x 1
Output kW 4.7 5.8 5.8
Model Name - DS-GB052FA**** DS-GB066FA**** DS-GB066FA****
Oil
Type - FVC68D FVC68D FVC68D
Initial Charge cc 3900 3900 3900
Fan
Type - Propeller + BLDC Propeller + BLDC Propeller + BLDC
Output x n W 400 400 400
Air Flow Rate
m³/min 173 173 210
l/s 2,883 2,883 3,500
External Static
Pressure
Max.
mmAq - - -
Pa - - -
Piping
Connection
Liquid Pipe
Type Braze connection Braze connection Braze connection
Φ, mm 9.52 9.52 12.7
Φ, inch 3/8" 3/8" 1/2"
Gas Pipe
Type Braze connection Braze connection Braze connection
Φ, mm 19.05 22.22 28.58
Φ, inch 3/4" 7/8" 1 1/8"
Discharge Gas Pipe
Φ, mm 15.88 19.05 19.05
Φ, inch 5/8" 3/4" 3/4"
Piping length
ODU-IDU Max. m 200(220) 200(220) 200(220)
After branch Max. m 90 90 90
Total piping length System Actual m 1000 1000 1000
Level difference
ODU-IDU
Outdoor unit in
highest position
m 110 110 110
Indoor unit in high-
est position
m 110 110 110
IDU-IDU Max. m 50 50 50
Refrigerant
Type - R410A R410A R410A
Factory Charging kg 5.5 5.2 5.5
Sound
Sound Pressure
Cooling
dB(A)
- - -
Heating - - -
Sound Power - - -
External
Dimension
Net Weight
DVMS HP
kg
190 190 190
DVMS HR 195 195 195
Shipping Weight
DVMS HP
kg
206 206 206
DVMS HR 211 211 211
Net Dimension (WxHxD) mm 880x1,695x765 880x1,695x765 880x1,695x765
Shipping Dimension (WxHxD) mm 948x1,657x832 948x1,657x832 948x1,657x832
Operating
Temp. Range
Cooling
DVMS HP
℃
-5.0 ~ 48.0 -5.0 ~ 48.0 -5.0 ~ 48.0
DVMS HR -15.0 ~ 48.0 -15.0 ~ 48.0 -15.0 ~ 48.0
Heating
℃
-25.0 ~ 24.0 -25.0 ~ 24.0 -25.0 ~ 24.0
1) Nominal cooling capacities are based on;
- Indoor temperature : 27°C DB, 19°C WB
- Outdoor temperature : 35°C DB, 24°C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m
2) Nominal heating capacities are based on;
- Indoor temperature : 20°C DB, 15°C WB
- Outdoor temperature : 7°C DB, 6°C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m
3) Allowed combination ratio of the total rated indoor unit capacity over the rated outdoor unit capacity is 50~130%.
4) Sound power level is an absolute value that a sound source generates.
Sound pressure level is a relative value, depending on the distance and acoustic environment.
Sound values are obtained in an anechoic room.
Sound values of multi combination are theoretical values based on sound results of individual installed units.
5) These products contain R410A which is fluorinated greenhouse gas.
6) If outdoor unit is located in a higher position than indoor unit, level difference is 110m or under.
(If the level difference is higher than 50m, make a decision by PDM kit installation Guide software whether the PDM kit should be installed or not.)
*PDM kit: Pressure Drop Modulation kit. When the outdoor unit is below the indoor unit & the level differences are 40m or more, contact your local dealer for more information.
※ In case you want to know more information regarding capacity and correction, please refer to capacity table TDB on pvi.samsung.com site.
