Disassembly and Reassembly
Samsung Electronics 131
3-2-16 MCU
3-2 Disassembly and Reassembly (cont.)

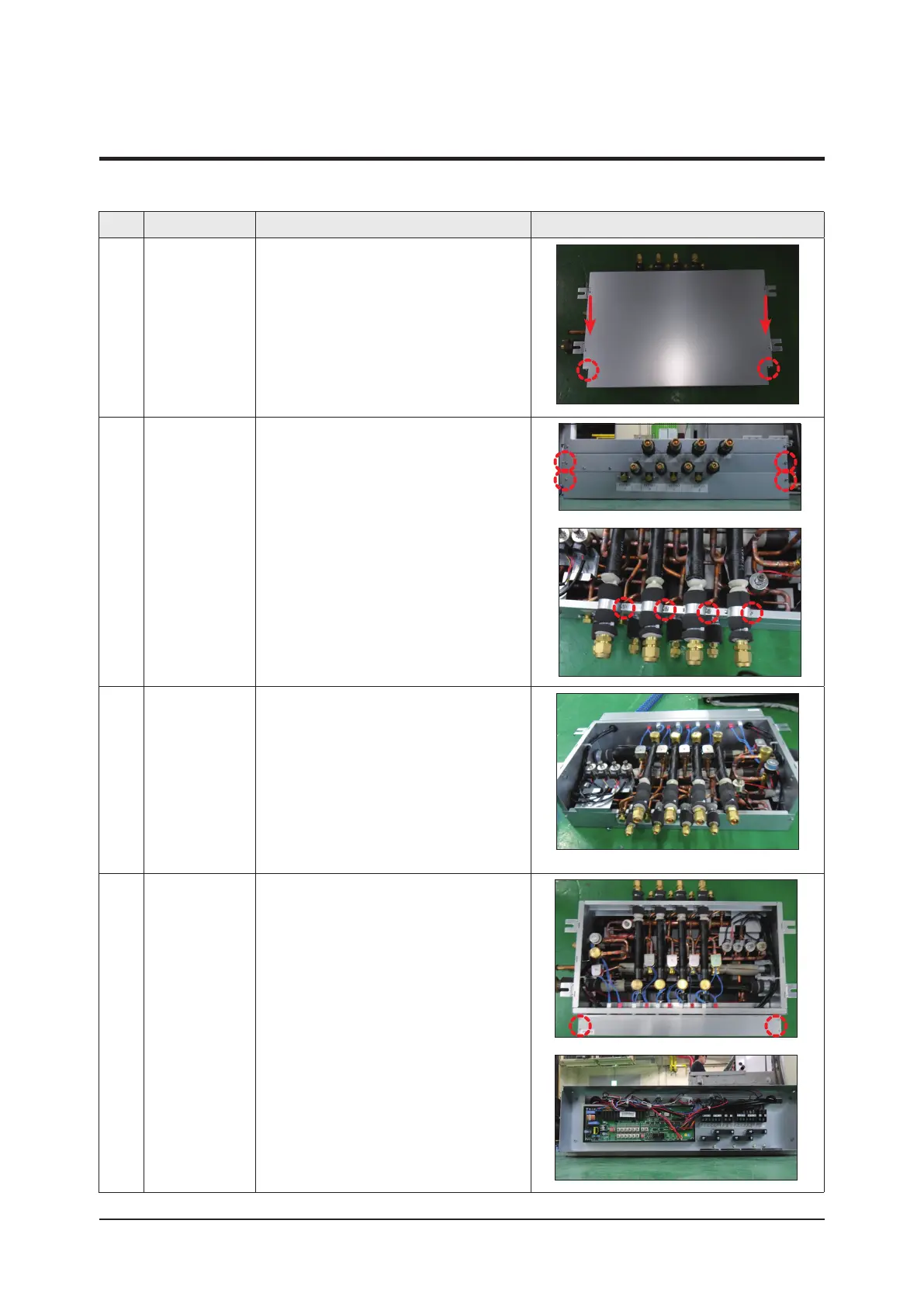

No Parts Procedure Remark
1
Cabinet upper 1) Separate 2 fixing screws from the cabinet.
(Use + Serew Driver)
2) Separate cabinet from MCU.
2 Cabinet front 1) Separate 4 fixing screws from the cabinet.
(Use + Serew Driver)
2) Separate 4 fixing screws from the brackets.
(Use + Serew Driver)
3 Cabinet front 1) Separate front cabinet from MCU.
4 Control box cover 1) Separate 2 fixing screws from the control
box cover. (Use + Serew Driver)
2) Separate control box cover from MCU.
To Next Page
