Samsung AM080FX A Series User Manual

Samsung Electronics 301

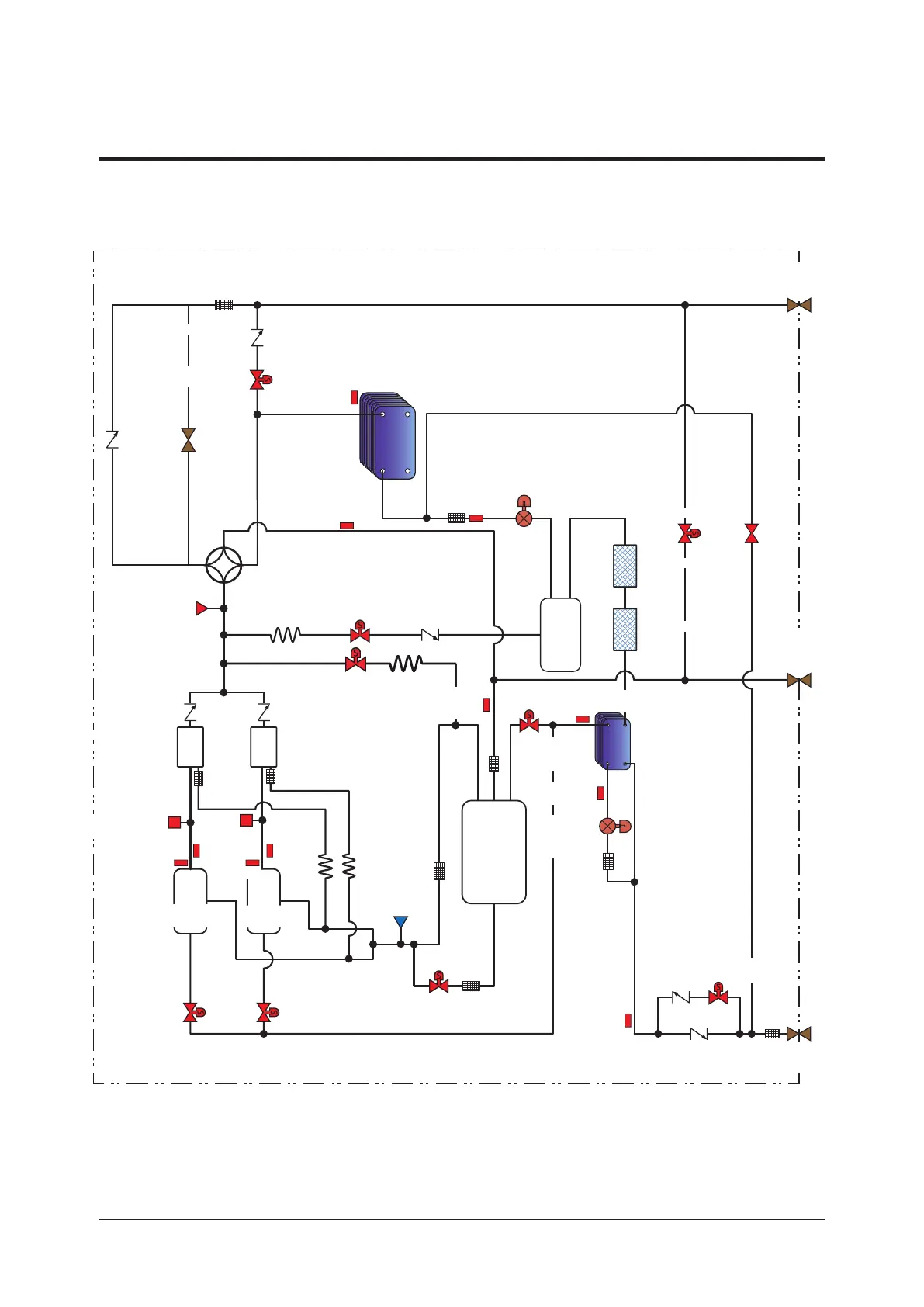

Piping Diagram
7-1-13 AM200FXWASR (DVM S Water Heat Recovery)
Accumulator
(AC)
Receiver
Ball Valve -
High pressure
Gas pipe (BV_HG)
Electronic Expansion
Valve - Main (E_M)
Solenoid Valve -
Hot Gas
bypass 2
(V_HG2)
Valve -
Pressure
Regulating
(V_PR)
IPM Cooler 1
(IPMC1)
IPM Cooler 2
(IPMC2)
Ball Valve - Low
pressure Gas pipe
(BV_LG)
Solenoid
Valve - EVI
Bypass (V_EB)
Thermistor -
EVI Out (T_EO)
Heat
Exchanger -
Intercooler
(HX_IC)
Thermistor -
EVI In (T_EI)
Electronic
Expansion
Valve -
EVI (E_EVI)
Thermistor -
Liquid pipe
(T_L)
Check Valve -
Liquid pipe 2
(CV_L2)
Solenoid Valve -
Liquid pipe (V_L)
Check Valve -
Liquid pipe (CV_L)
Ball Valve -
Liquid pipe (BV_L)
Solenoid Valve -
Accumulator oil Return (V_AR)
Solenoid Valve -
EVI 2 (V_EVI2)
Solenoid
Valve -
EVI 1
(V_EVI1)
Compressor 1
(COMP1)
Compressor 2
(COMP2)
(T_D2)
(T_CT2)
Thermistor -
Discharge
pipe1(T_D1)
Thermistor -
Compressor
Top 1 (T_CT1)
Oil Separator 1
(OS1)
(OS2)
(CV_D2)
Check Valve -
Discharge 1 (CV_D1)
Pressure Sensor -
High (PS_H)
Solenoid Valve -
4Way (V_4W)
Solenoid Valve -
Hot gas Charging
(V_HC)
Check Valve -
Hot gas Charging
(CV_HC)
Thermistor -
Suction pipe
(T_S)
Heat Exchanger -
PHE (HX_PHE)
Thermistor -
Water (T_W)
Solenoid Valve -
Main Cooling
(V_MC)
Ball Valve -
Heat Pump
(BV_HP)
Check Valve -
Heat Recovery
(CV_HR)
Solenoid Valve -
Hot Gas bypass
(V_HG)
Pressure Sensor -
Low (PS_L)
Check Valve -
Main Cooling
(CV_MC)
Thermistor -
Cond Out (T_CO)
Thermistor -
Suction pipe 2
(T_S2)
Pressure Switch -
High 1 (PW_H1)
(PW_H2)
This Document can not be used without Samsung’s authorization.
7-1 Piping Diagram (cont.)
