Product Specifications
Samsung Electronics 13
2-1 Feature of Product (cont.)
ASSY CONTROL OUT
○ Refrigerant cooling system for IPM
Model 14HP 16HP 18HP 20HP 22HP
Standard 35A*1 50A*1 50A*1 35A*2 35A*2
Premium Compact 35A*1 50A*1 50A*1 35A*2 35A*2
ASSY COMP PARTS
Model 14HP 16HP 18HP 20HP 22HP
Standard 66cc*1 80cc*1 80cc*1 52cc*2 66cc*2
Premium Compact 66cc*1 80cc*1 66cc*2 66cc*2 66cc*2
ASSY CABI OUT PARTS
○ DVM S Frame
- SIZE : 1295x1695x765
ASSY FAN OUT PARTS
○ New air flow design
- Optimized diffuser design
Model 14HP 16HP 18HP 20HP 22HP
Standard
Conventional design
Premium Compact Diffuser design

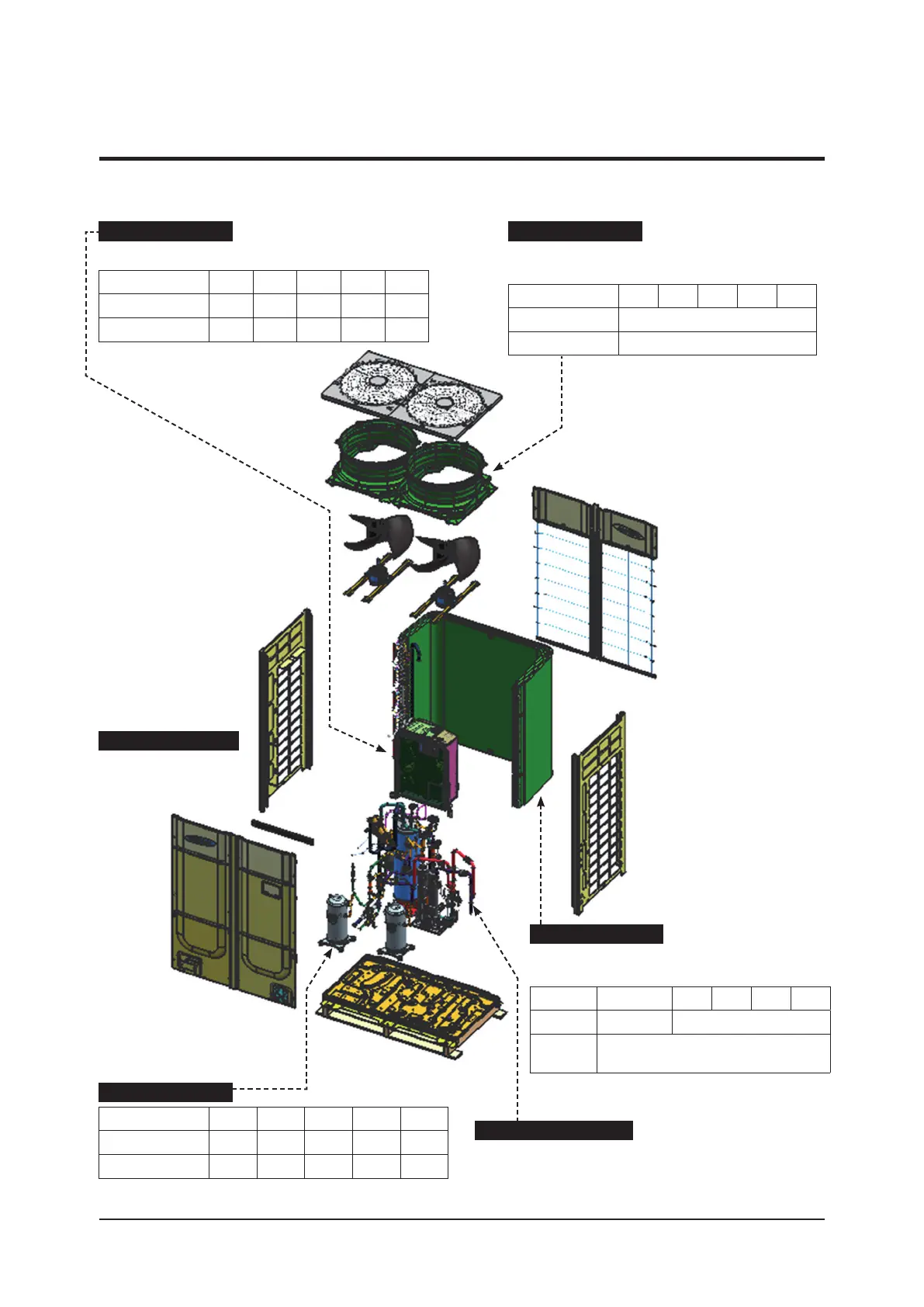

■ 14~22HP DVM S : Exploded View
ASSY TUBE OUT PARTS
○ New Pipe Layout to improve air flow
○ Compact Oil separator
ASSY COND PARTS
○ Conventional Heat exchanger
- 3-Sided Φ7x3R(2R)x60C
Model 14HP 16HP 18HP 20HP 22HP
Standard
Φ7x2Rx60C Φ7x3Rx60C
Premium
Compact
Φ7x3Rx60C
