Troubleshooting
▶
During Discharging mode, voltage of Inv1 and Inv2 will be displayed alternately.
▶
Even when the power is o, it is dangerous when you come in contact with inverter PBA, fan PBA since high pressure DC voltage is charged
to those parts.
▶
When replacing or repairing the PBA, cut-o the power and wait until the DC voltage is discharged before replacing/repairing them.
- Wait for more than 15 minutes to allow those parts to be fully discharged.
■How to proceed
■How to proceed

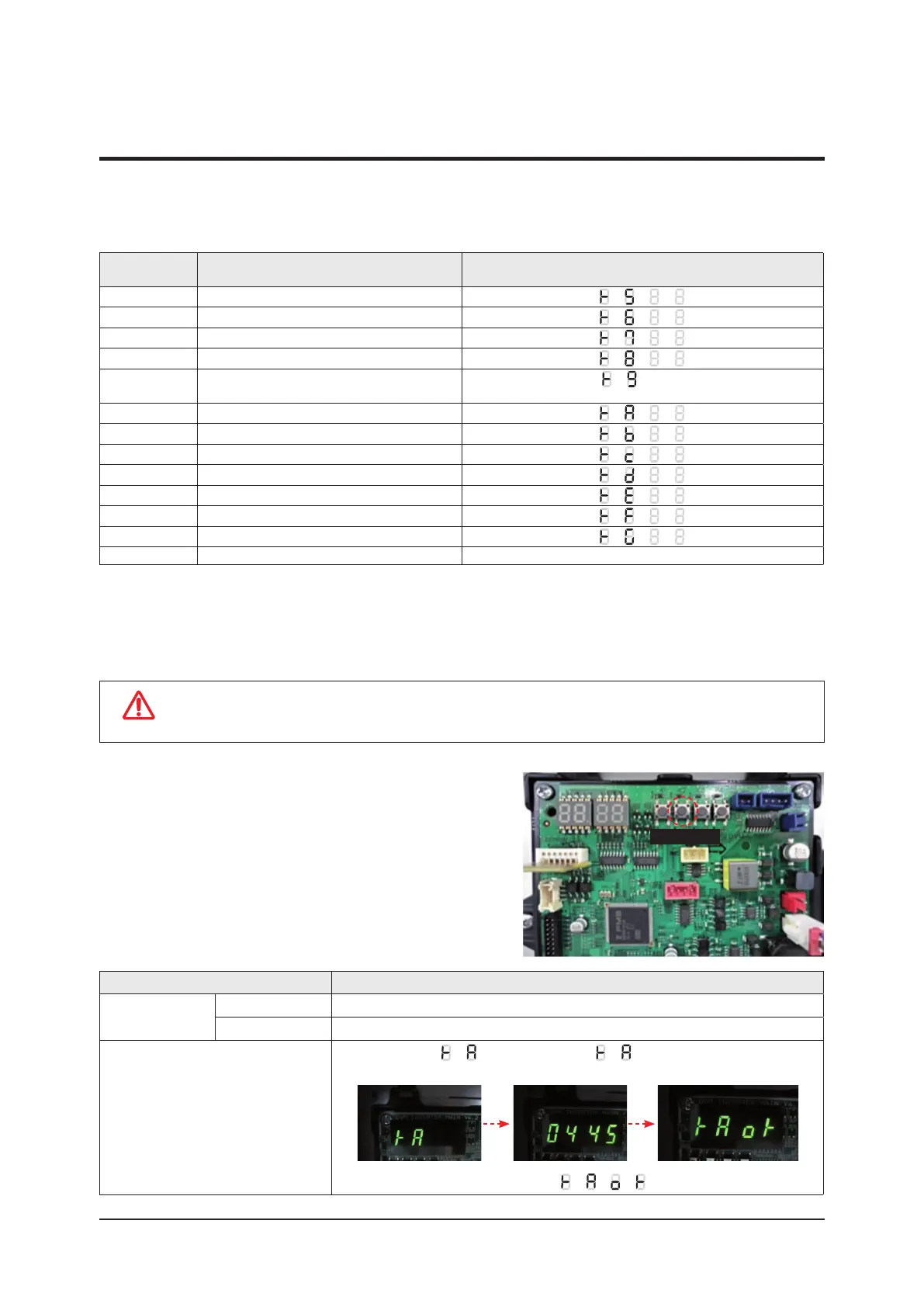

Press K2 button 6 times shortly.
K2 (Number of
press)
KEY operation Display on 7-Segment
1times Refrigerant charging in Cooling mode
“
” “ ” “ ” “ ”
2times Trial operation in Cooling mode
“
” “ ” “ ” “ ”
3times Pump down all units in Cooling mode
“
” “ ” “ ” “ ”
4times Auto trial operation
“
” “ ” “ ” “ ”
5times Checking the amount of refrigerant
“
” “ ” “x” “x”
(Display of last two digits may differ depending on the progress)
6times Discharge mode of DC link voltage
“
” “ ” “ ” “ ”
7times Forced defrost operation
“
” “ ” “ ” “ ”
8times Forced oil collection
“
” “ ” “ ” “ ”
9times Inverter compressor 1 check
“
” “ ” “ ” “ ”
10times Inverter compressor 2 check
“
” “ ” “ ” “ ”
11times Fan 1 check
“
” “ ” “ ” “ ”
12times Fan 2 check
“
” “ ” “ ” “ ”
13times End KEY operation
-
Caution
▶
When there is error, Discharge mode of DC link voltage may not have been eective. Especially when E464 and E364
error is displayed, power element might be damaged so do not use the Discharge mode of DC link voltage.
K2 button
Items Cooling
Key
Number K2
Push time 6
Display
“ ” “ ” Inv. 2 DC voltage “ ” “ ” Inv. 1 DC volt
Ex) 445V → 0445
※ Below 30 Volt, “ ” “ ” “ ” “ ” displays.
4-4 Case study for trouble shoots (cont.)
4-4-1 Electric discharge mode (cont.)
