Samsung Electronics 110
Disassembly and Reassembly
No. Work Procedure Remark

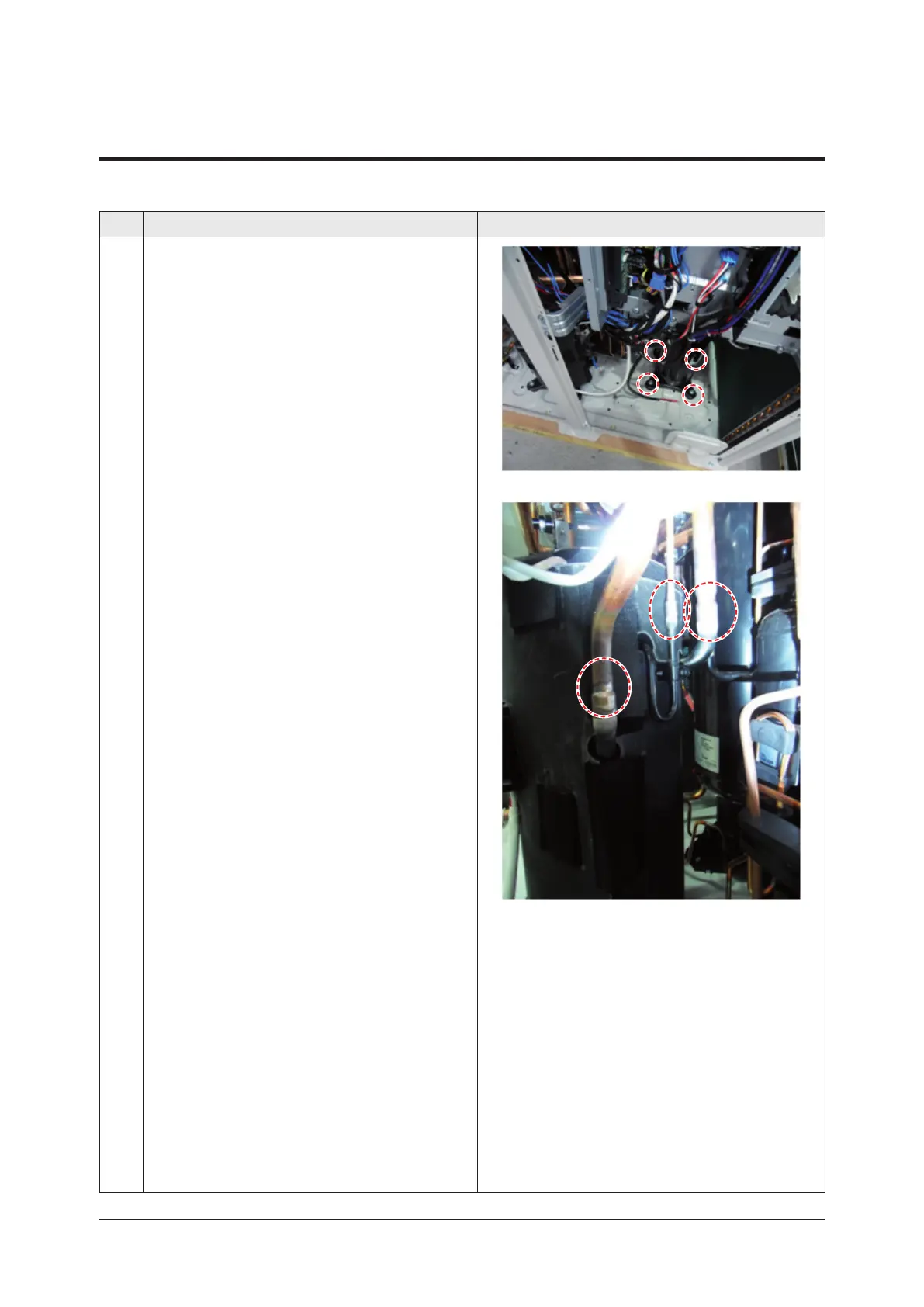

6 - Unfasten the four nuts on the compressor.
- Separate the compressor from the device
while leaning the compressor towards you.
2) Removing the left compressor
- Follow the same steps used when removing the
right compressor.
- Note that the shapes of the pipes are different from
the right compressor, as shown in the image.
Pay attention when separating the welded joints.
※ When reassembling it after inspection, be sure to tightly
fasten the screws.
∙ Check the cable connection for the U, V and W phases.
∙ A loosely fastened screw may cause a fire.
Be sure to tightly fasten the screws.
3-2 Disassembly and Reassembly (cont.)
3-2-6 Removal Instructions for Compressor (cont.)
To Next Page
