Samsung EHS AE080BXYDEG/EU - Control Box

7. Electrical installation
Installer reference guide / Mono tank integrated type 101

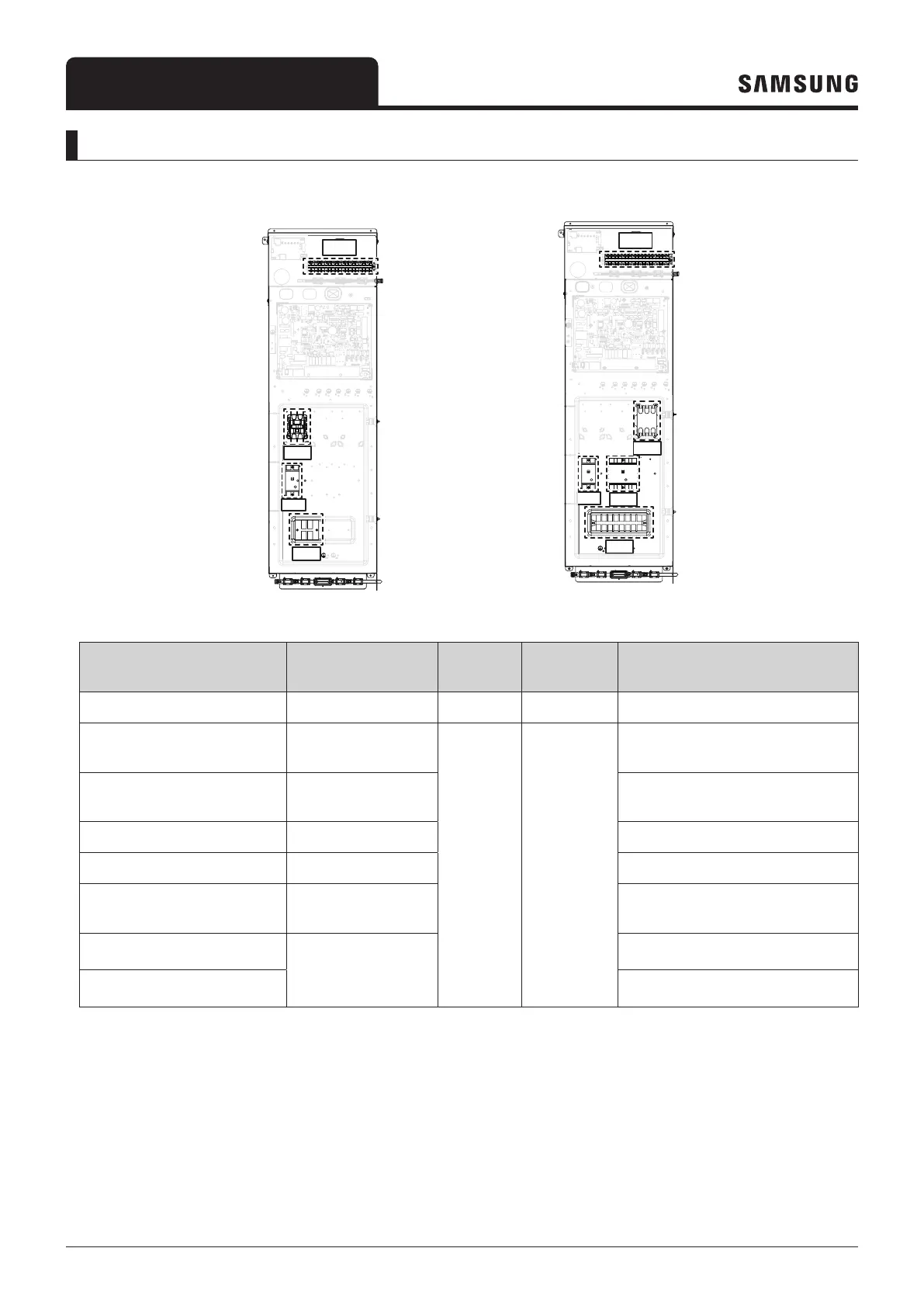

Control box
• SINGLE PHASE • 3 PHASE
M3
M5
M5
M5
M5
M5
M5
M3
M5
Terminal code Part Screw size
Tightening
torque(N•m)
Remarks
1~20 20P Terminal Block M3 0.5~0.75 Digital input/output
-
Magnetic contactor 2P
Single phase
M5 2.0~2.9
AC 220V-240V power input/output
-
Magnetic contactor 3P
3phase
AC 380V-415V power input/output
- ELCB 2P Single phase AC 220V-240V power input/output
- ELCB 4P 3 phase AC 380V-415V power input/output
L, N
Terminal block 2P
Single phase
AC 220V-240V power input/output
N, L
Terminal block 8P
3 phase
AC 220V-240V power input/output
L1(R), L2(S), L3(T), N AC 380V-415V power input/output
