4. Typical applications
Installer reference guide / Mono tank integrated type 26

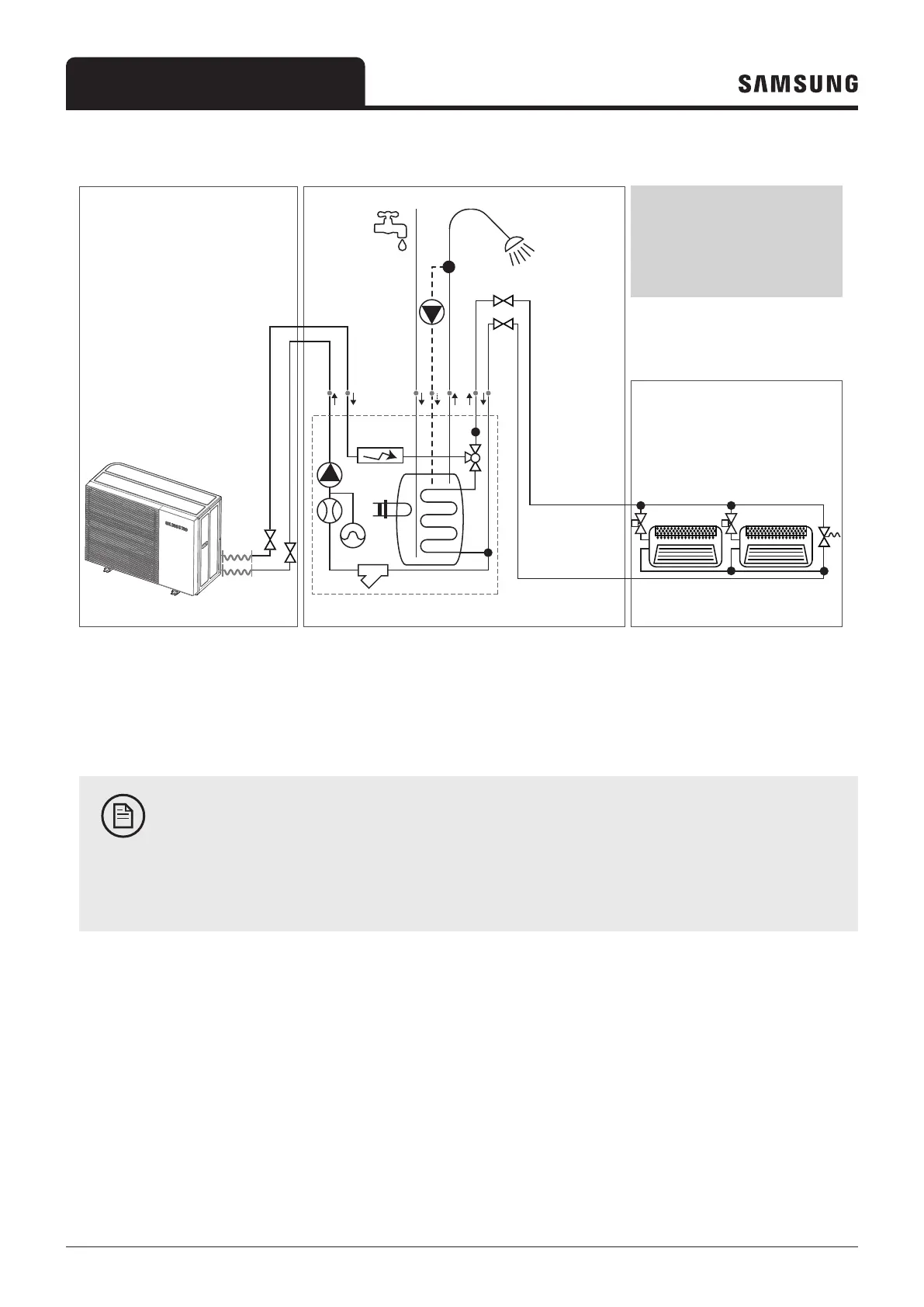

4.4 Single zone fan coil units
Outdoor Indoor
FSV to set:
2091 or 2093 = 1,2,3 or 4
3011 = 1 or 2
4021 = 1
4022 = 1
4023 = 1
FSV to check:
4024
4025
Outdoor unit ClimateHub Indoor unit
Fan Coil Unit zone
ClimateHub
components:
a. Return to ODU
b. Supply from ODU
c. Fresh water in
d. DHW return
e. DHW supply
f. Supply to zone
g. Return from zone
h. Backup heater
i. Diverter valve
j. Primary pump
k. DHW Tank
l. Flow meter
m. Booster Heater
n. Expansion vessel
o. Y-Strainer
p. spring loaded bypass
(in combination with a
fixed speed pump and
thermostatic valves)
Flexible
pipe
a.
j.
l.
n.
o.
m.
k.
h. i.
b. c. d. e. f. g.
p.
Zone
• To enable the backup heater as an additional heat source, please set FSV (#4021, 4022). The backup heater must be
installed and operational by control logic. When ambient conditions can reach below 24°C.
• It is not possible to interconnect the FCU to the EHS they are working independently. Supply temperatures above 65°C
are not allowed when using Samsung FCUs.
NOTE
A buffer may be required in the secondary circuit, if the active volume is too small to operate a minimum of
600 seconds during part load operation.
Especially when the devices have individual (thermostatic) valves, to control the flow over the devices.
