Installer reference guide / Mono tank integrated type 132

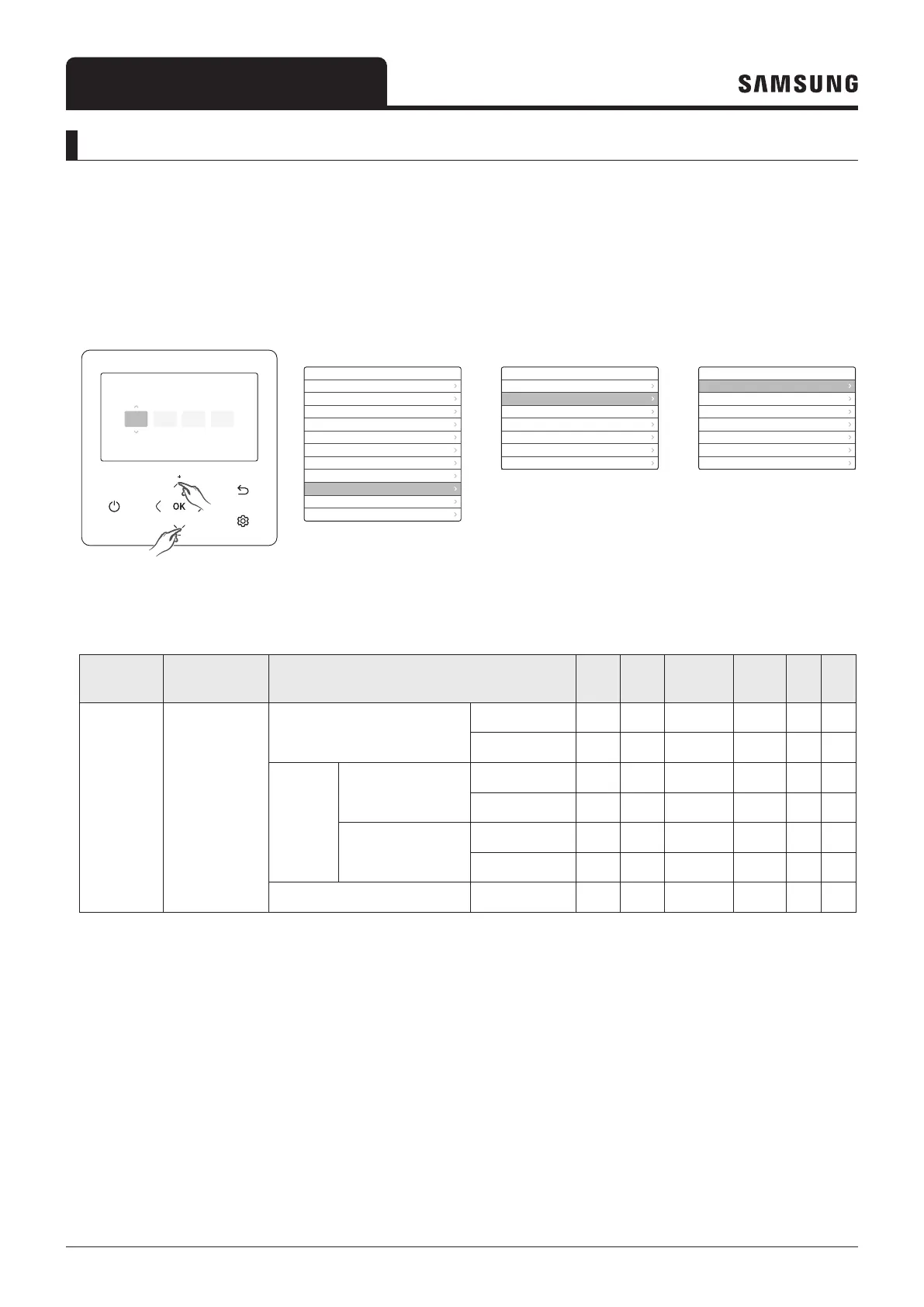

Menu 20** : Water Law
• Via the Water Law settings, the heat pump can adjust the water temperature according to the ambient temperature.
A so called weather dependent control.
This can reduce unnecessary energy consumption through adjusting the water temperature in relation to the ambient
temperature.
• This function is used in combination with the room sensor of the wired remote controller or via thermostat control.
Only heating mode with target water outlet temperature control can use this function during auto mode.
0
Please enter your PASSWORD
Service Mode
Service Mode
Service Timer
Quiet Mode Automatic Time
Indoor Zone Option
Connection Information
Device Information
Reset All Service Modes
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Field Setting Value
10** | Remote Controller
20** | Water Law
30** | DHW
40** | Heat
50** | Others
Simple Setting
FSV Upload/Download
10** | Remote Controller
101* | Water Out Temp. for Cool
102* | Room Temp. for Cool
103* | Water Out Temp. for Heat
104* | Room Temp. for Heat
105* | DHW Tank Temp.
0
Please enter your PASSWORD
Service Mode
Service Mode
Service Timer
Quiet Mode Automatic Time
Indoor Zone Option
Connection Information
Device Information
Reset All Service Modes
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Field Setting Value
10** | Remote Controller
20** | Water Law
30** | DHW
40** | Heat
50** | Others
Simple Setting
FSV Upload/Download
20** | Water Law
201* | Outdoor Temp. for Water Law
202* | Water Out Temp. for WL1 Heat
203* | Water Out Temp. for WL2 Heat
204* | Heating Water Law for Auto Mode
205* | Outdoor Temp. for Water Law
206* | Water Out Temp. for WL1 Cool
207* | Water Out Temp. for WL2 Cool
0
Please enter your PASSWORD
Service Mode
Energy Generation Energy Consumption
Service Mode
Service Timer
Quiet Mode Automatic Time
Indoor Zone Option
Connection Information
Device Information
Reset All Service Modes
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Field Setting Value
10** | Remote Controller
20** | Water Law
30** | DHW
40** | Heat
50** | Others
Simple Setting
FSV Upload/Download
30** | DHW
301* | Domestic Hot Water Tank
302* | Heat Pump
303* | Booster Heat
304* | Disinfection
305* | Forced DHW Operation
306* | Solar Panel/DHW Thermostat
307* | Direction of 3Way Valve
308* | Energy Metering
0
Please enter your PASSWORD
Service Mode
Service Mode
Service Timer
Quiet Mode Automatic Time
Indoor Zone Option
Connection Information
Device Information
Reset All Service Modes
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Field Setting Value
10** | Remote Controller
20** | Water Law
30** | DHW
40** | Heat
50** | Others
Simple Setting
FSV Upload/Download
50** | Others
501* | Outing
502* | DHW Saving
503* | TDM Variable (TDM Product only)
504* | Power Peak Control
505* | Frequency Ratio Control
506* | Heat/DHW Capa. Ratio
508* | PV Control
509* | Smart Grid Control
0
Please enter your PASSWORD
Service Mode
Service Mode
Service Timer
Quiet Mode Automatic Time
Indoor Zone Option
Connection Information
Device Information
Reset All Service Modes
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Field Setting Value
10** | Remote Controller
20** | Water Law
30** | DHW
40** | Heat
50** | Others
Simple Setting
FSV Upload/Download
40** | Heat
401* | Heat Pump
402* | Backup Heater
403* | Backup Boiler
404* | Mixing Valve
405* | Inverter Pump
406* | Zone Control
2019
Generation 1000hr
60
Hr
40
20
0
2019
Usage 500kWh | Target 500kWh
60
kWh
40
20
0
Jan. Feb. Mar. A pr. May. Jun. Jul. Aug. Sep. Oct. Nov. (month)Jan. Feb. Ma r. Apr. May. Jun. Jul. Aug. Sep. Oct. Nov. (month)
WL for Heating
• The Water Law setting range and default values:
Main menu
(FSV)
Menu Item
Step Unit
FSV
Default Min.
Max.
WL Item
20**
Heating
Outdoor Temp. for WL
Max (Point ①)
1 2011 -10 -20 5
Min (Point ②)
1 2012 15 10 20
Water out
Temp.
UFH
- WL1
Max (Point ①)
1 2021 40 17 65
Min (Point ②)
1 2022 25 17 65
FCU
- WL2
Max (Point ①)
1 2031 50 17 65
Min (Point ②)
1 2032 35 17 65
Heating WL Selection WL Type - - 2041 1(WL1) 1 2
• Outdoor air temperature range :
–
–
– With these default settings, the water outlet temperature by heating WL can be changed within the outdoor
• Water out temperature range for UFH/FCU applications respectively :
–
–
–
.
• Type of WL for according to heating devices (UFH/FCU) : #2041 (Default 1 (WL1 for floor)), 2 (WL2 for FCU or radiator)
