Installer reference guide / Mono tank integrated type 68
Flow sensor
Flow sensor is not integrated part in MONO Unit. But the installation is essential to operate MONO Unit.
Flow sensor is provided by Samsung control kit as a sub component.
CAUTION
• Flow sensor shall be installed described by installation manual of Mono unit or Control kit.
• All electric wiring works shall be implemented by manuals which Samsung provided.

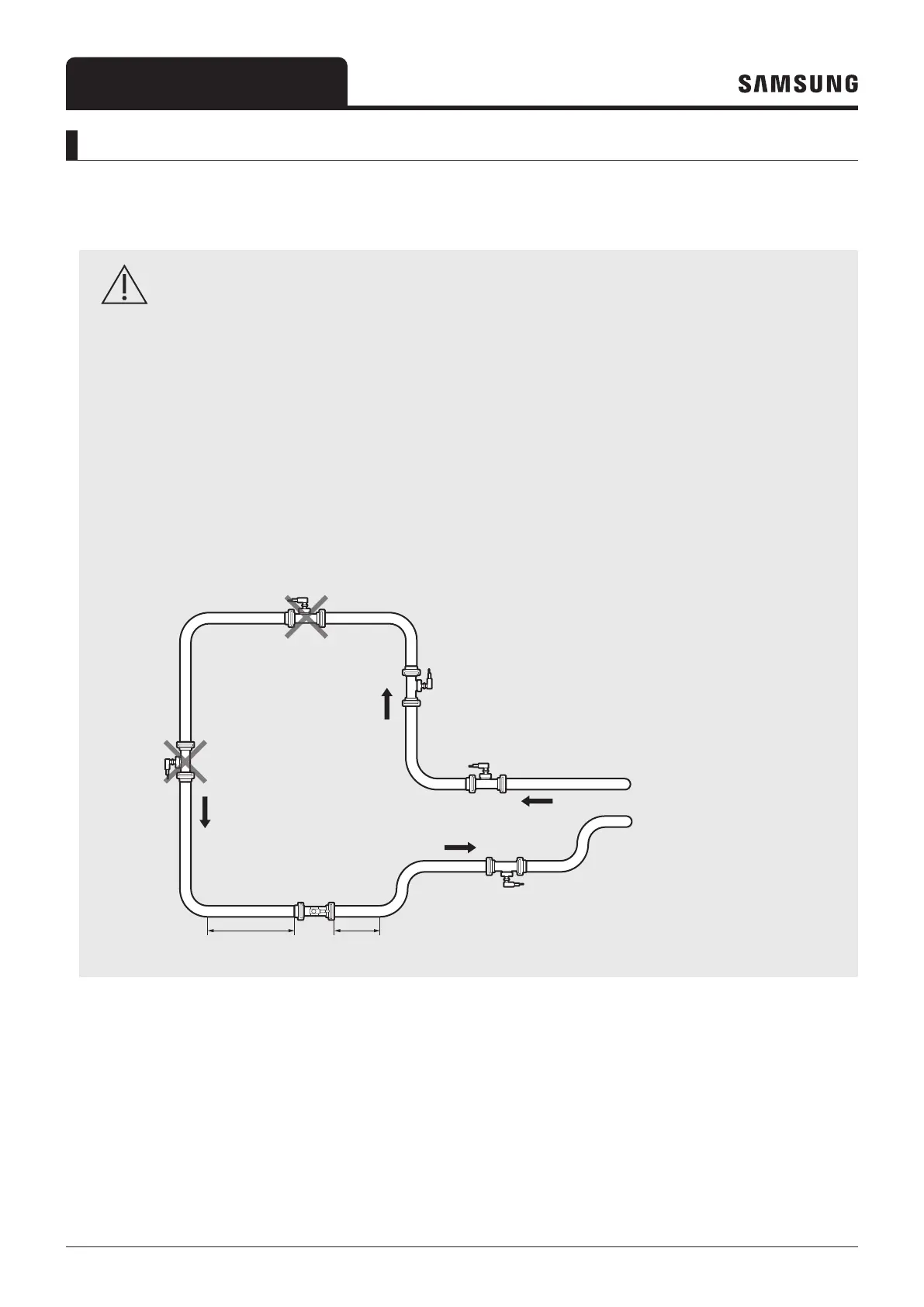

• Before completing the installation works, make sure to check if the flow sensor is installed in horizontal
or vertical like as below figure.
• If flow direction is in parallel with pipe direction. Straight length of In pipe of flow sensor shall have
10 times length in diameter and Straight length of Out pipe of flow sensor shall have 5 times length in
diameter.
• When mechanical vibrations are delivered from the pump or compressor, measurement errors may occur.
Select the installation location so that no vibrations are delivered to the sensor.
- Possibility of bubble formation
- Possibility of drain-off (measuring pipe partly filled)
- No dager due to accumulation of contaminants
- Air bubbles goes upstream
- Possibility of drain-off
- Possibility of bubble formation
min. 10 pipe in diameter min. 5 pipe in diameter
Flow sensor set point
AE050RXYD**/AE080RXYD**/AE080BXYD**/AE120BXYD**/AE140BXYD** : 7LPM
AE120RXYD**/AE160RXYD** : 12LPM
