Installer reference guide / Mono tank integrated type 200

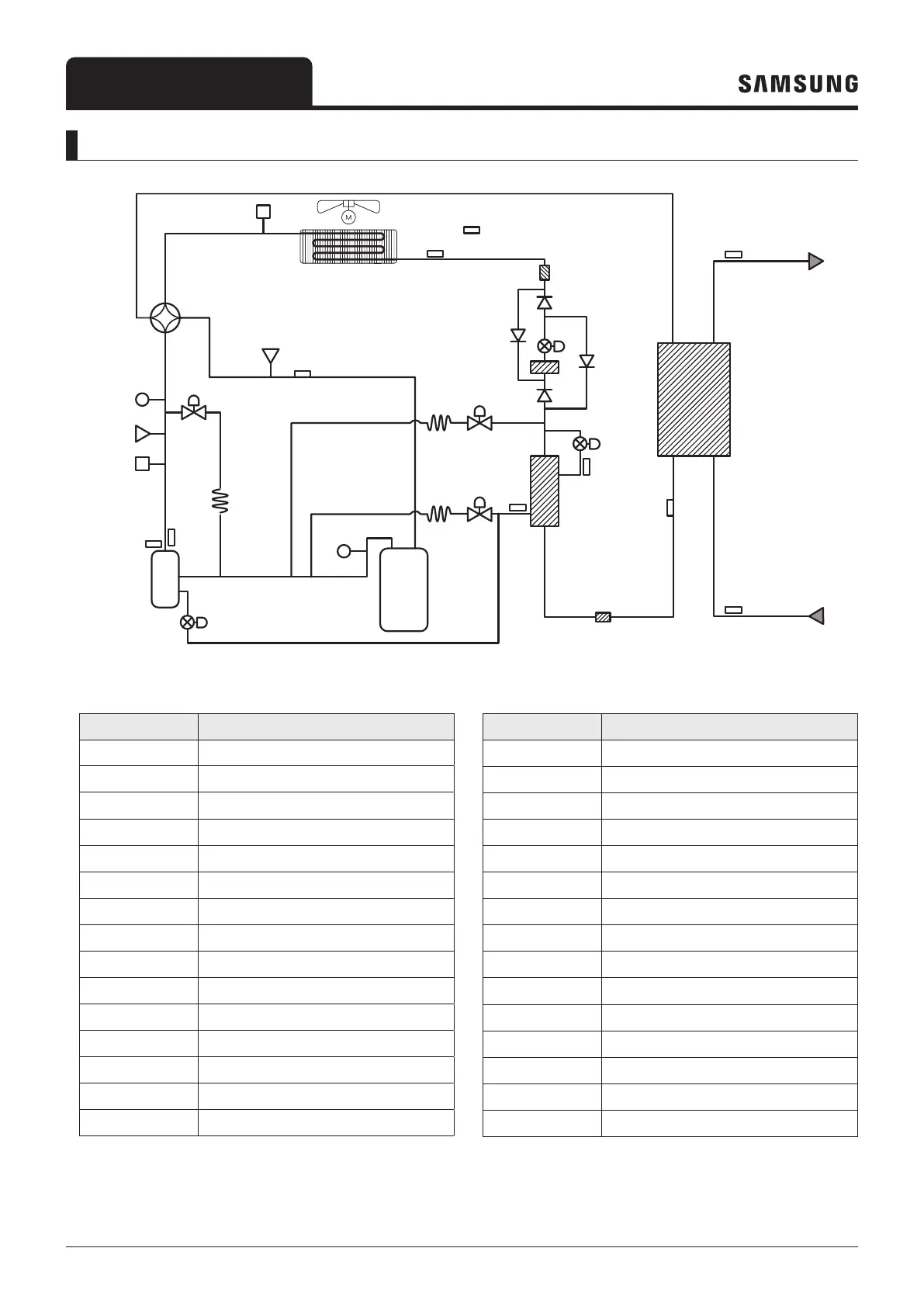

Mono HT Quit Refrigerant circuit diagram outdoor unit
PW_H2
HX_M
PS_L
T_S
V_4W
HX_PHE
T_WO
E_M
OFM
T_A
T_CO
CV
CV
CV
E
PW_H1
COMP
PS_H
PT_C
T_D
V_HG
V_LB
V_EB
AC
PT_C
E_S
T_CT
HX_IC
T_EI
T_WI
T_II
E_EV
S
E
T_EO
S
S
Part Description
CV Check Valve
COMP Compressor
HX_IC Heat Exchanger - Intercooler
HX_M Heat Exchanger - Main (Outdoor unit)
HX_PHE Heat Exchanger - PHE
IPMC IPM Cooler
OFM Outdoor Fan Motor
AC Accumulator
PS_H Pressure Sensor - High
PS_L Pressure Sensor - Low
PW_H1 Pressure Switch - High 1
PW_H2 Pressure Switch - High 2
E_EV Electronic Expansion Valve - EVI
E_M Electronic Expansion Valve - Main
E_S Electronic Expansion Valve - Shut off
Part Description
PT_C Service Port - Charging
V_4W Solenoid valve - 4 Way
V_EB Solenoid valve - EVI Bypass
V_HG Solenoid valve - Hot Gas Bypass
T_LB Solenoid valve - Liquid Bypass
T_A Thermistor - Ambient
T_CO Thermistor - Cond Out
T_CT Thermistor - Compressor Top
T_D Thermistor - Discharge pipe
T_EI Thermistor - EVI In
T_EO Thermistor - EVI Out
T_II Thermistor - Heat Exchanger In
T_S Thermistor - Suction pipe
T_WI Thermistor - Water In
T_WO Thermistor - Water Out
