12. Technical data
Installer reference guide / Mono tank integrated type 199

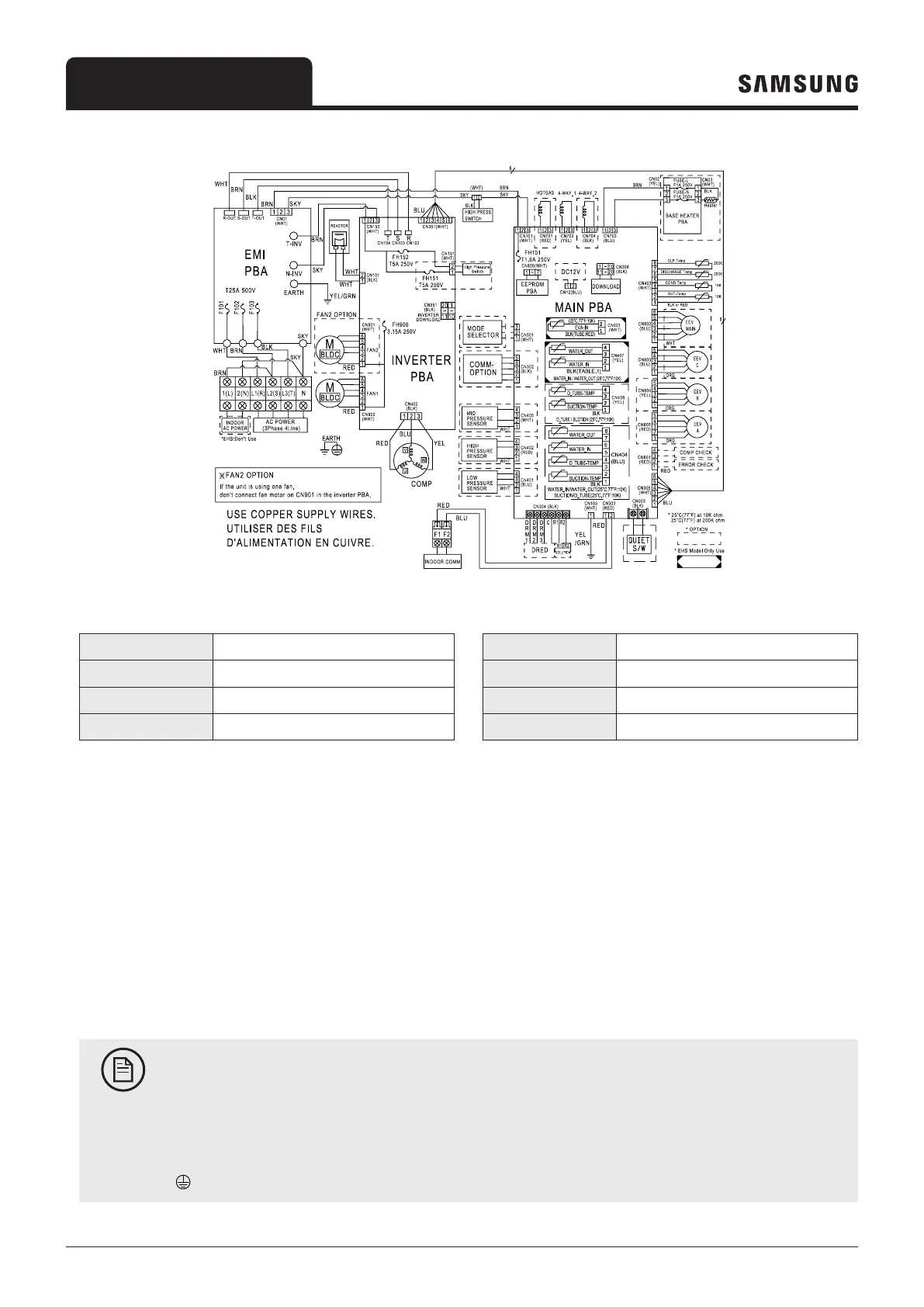

• AE080/120/160RXYDGG/EU
M BLDC BLDC FAN MOTOR
Comm Communication
COND-Temp Thermistor COND(10K)
OLP-Temp Thermistor OLP(200K)
COMP COMPRESSOR
OUT-Temp Thermistor OUT(10K)
DISCHARGE-Temp Thermistor DISCHARGE(200K)
SUCTION-TEMP Thermistor SUCTION(10K)
NOTE
• Symbols show as follow :
BLK: black, RED: red, BLU: blue, WHT: white, YEL: yellow, BRN: brown, SKY: skyblue, GRN: green
• Wiring indoor-outdoor communication F1-F2
• Protective earth (SCREW)
