Installer reference guide / Mono tank integrated type 155
CAUTION
• Be sure to use the microSD card after formatting in FAT16 or FAT32.
•
• The update is performed only when the file version in the microSD card differs from the one of the wired
remote controller.
•
product inspection is required.
• Delete the files except for the ones for download. (Only IMAGE.BIN and MICOM.BIN are required.)

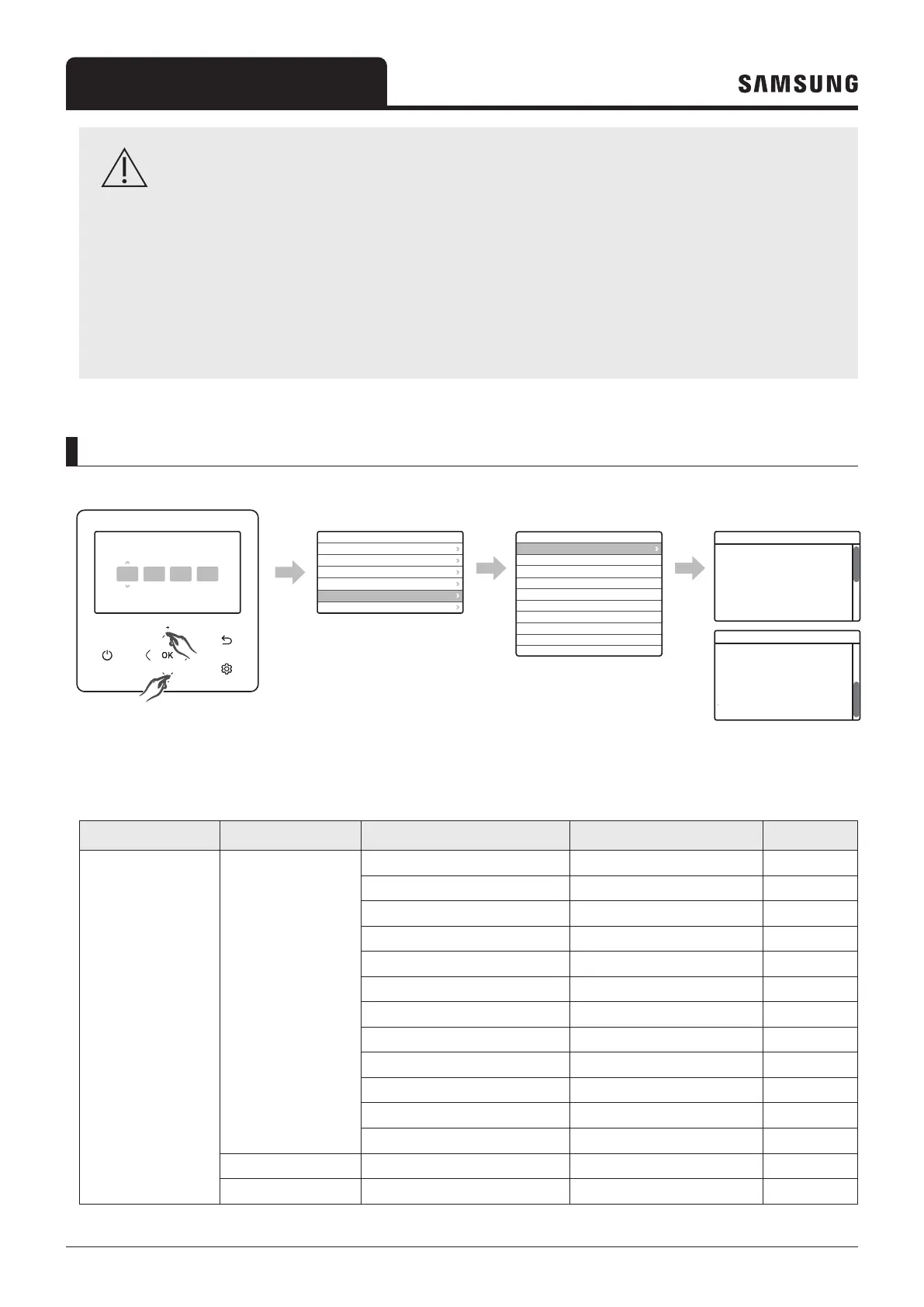

Self-test display mode
0 2
Please enter your PASSWORD
Service mode
Service mode
Reset All Service Mode
Power Master Reset
ODU K3 Reset
Field Setting Value
Self-Test Mode
Indoor Unit Option
Self-Test Mode
Self-Test Mode Display
Water Pump
Booster Heater
DHW Valve (3 Way valve)
Zone#1 Valve
Back Up Heater1 + Water Pump
Back Up Heater2 + Water Pump
Back Up Boiler
Zone#2 Valve
Mixing Valve
< OFF >
< OFF >
< OFF >
< OFF >
< OFF >
< OFF >
< OFF >
< OFF >
< OFF >
Self-Test Mode Display
Water Inlet Temp.: -00.0℃ to 000.0℃
Water Outlet Temp.: -00.0℃ to 000.0℃
Backup Heater Outlet Temp: -00.0℃ to 000.0℃
Mixing valve Outlet Temp.: -00.0℃ to 000.0℃
Tank Temp: -00.0℃ to 000.0℃
Indoor Ambient Temp.: -00.0℃ to 000.0℃
Indoor Ambient Temp. (Zone2): -00.0℃ to 000.0℃
Flow Temp. Sensor #1(Zone1): -00.0℃ to 000.0℃
Flow Temp. Sensor #2(Zone2): -00.0℃ to 000.0℃
Thermostat #1(Zone #1): Coo/Heat
Thermostat #2(Zone #2): Coo/Heat
Solar Panel On/Off: On/Off
Self-Test Mode Display
0 2
• Enter the self-test mode using wired remote controller,
Load list : When pressing the corresponding button, you can set the load On or Off.
Step 1 Step 2 Step 3 Description Default
Self-Test Mode
Self-Test Mode Display
Water Inlet Temp. Temperature -
Water Outlet Temp. Temperature -
Backup Heater Outlet Temp. Temperature -
Mixing Valve Outlet Temp. Temperature -
Tank Temp. Temperature -
Indoor Ambient Temp. Temperature -
Indoor Ambient Temp.(Zone 2) Temperature -
Water Outlet Temp. (Zone 1) Temperature -
Water Outlet Temp. (Zone 2) Temperature -
Thermostat #1(Zone 1) Heat/ Cool -
Thermostat #2(Zone 2) Heat/ Cool -
Solar Panel ON/ OFF -
Water Pump - ON/ OFF OFF
Booster Heater - ON/ OFF OFF
To Next Page
