Installer reference guide / Mono tank integrated type 36

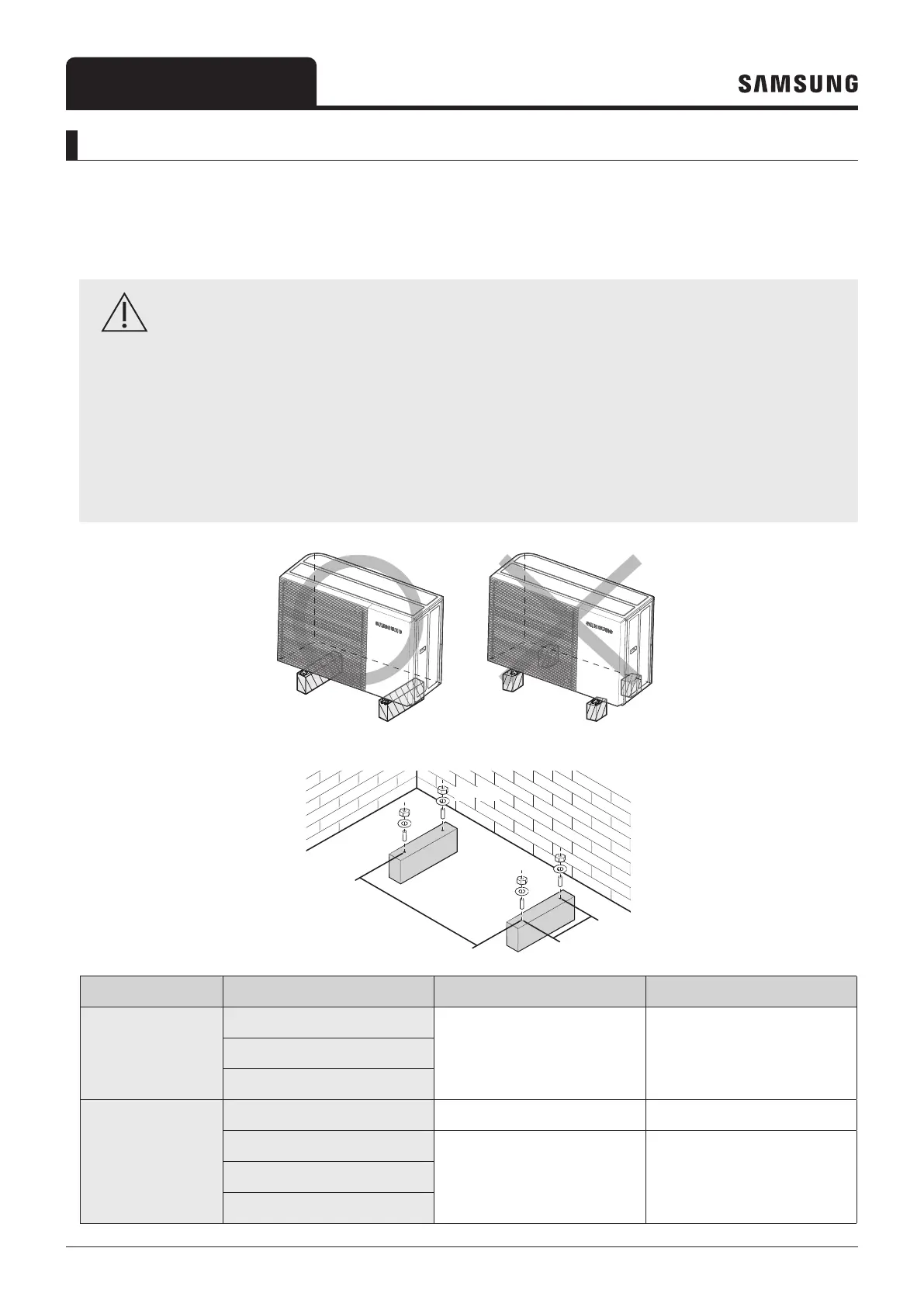

Mounting the outdoor unit
The outdoor unit must be installed on a rigid and stable base to avoid any increase in the noise level and vibration,
particularly if the outdoor unit is to be installed in a location exposed to strong winds or at a height, the unit must be fixed
to an appropriate support (wall or ground).
CAUTION
• When tightening the anchor bolt, tighten the rubber washer to prevent the outdoor unit bolt connection
part from corroding.
• Make a drain outlet around the base for outdoor unit drainage.
• If the outdoor unit is installed on the roof, you have to check the ceiling strength and waterproof the unit.
• The anchor bolt must be 20mm or higher from the base surface.
※
In order to prevent freezing of water drains, additional protection such as application of a heating cable
may be required.
A
B
M124
x
Model A B
Mono HT Quiet
AE080BXYD**
620 344
AE120BXYD**
AE140BXYD**
Mono
AE050RXYDEG
660 338
AE080RXYD**
620 344
AE120BXYD**
AE160RXYD**
